Projector Parts and Functions
10
The following sections explain the projector parts and their functions.
All of the features in this guide are explained using illustrations of EB‑W05
unless otherwise mentioned.
gg Related Links
• "Projector Parts - Front" p.10
• "Projector Parts - Rear" p.11
• "Projector Parts - Base" p.12
• "Projector Parts - Control Panel" p.13
• "Projector Parts - Remote Control" p.14

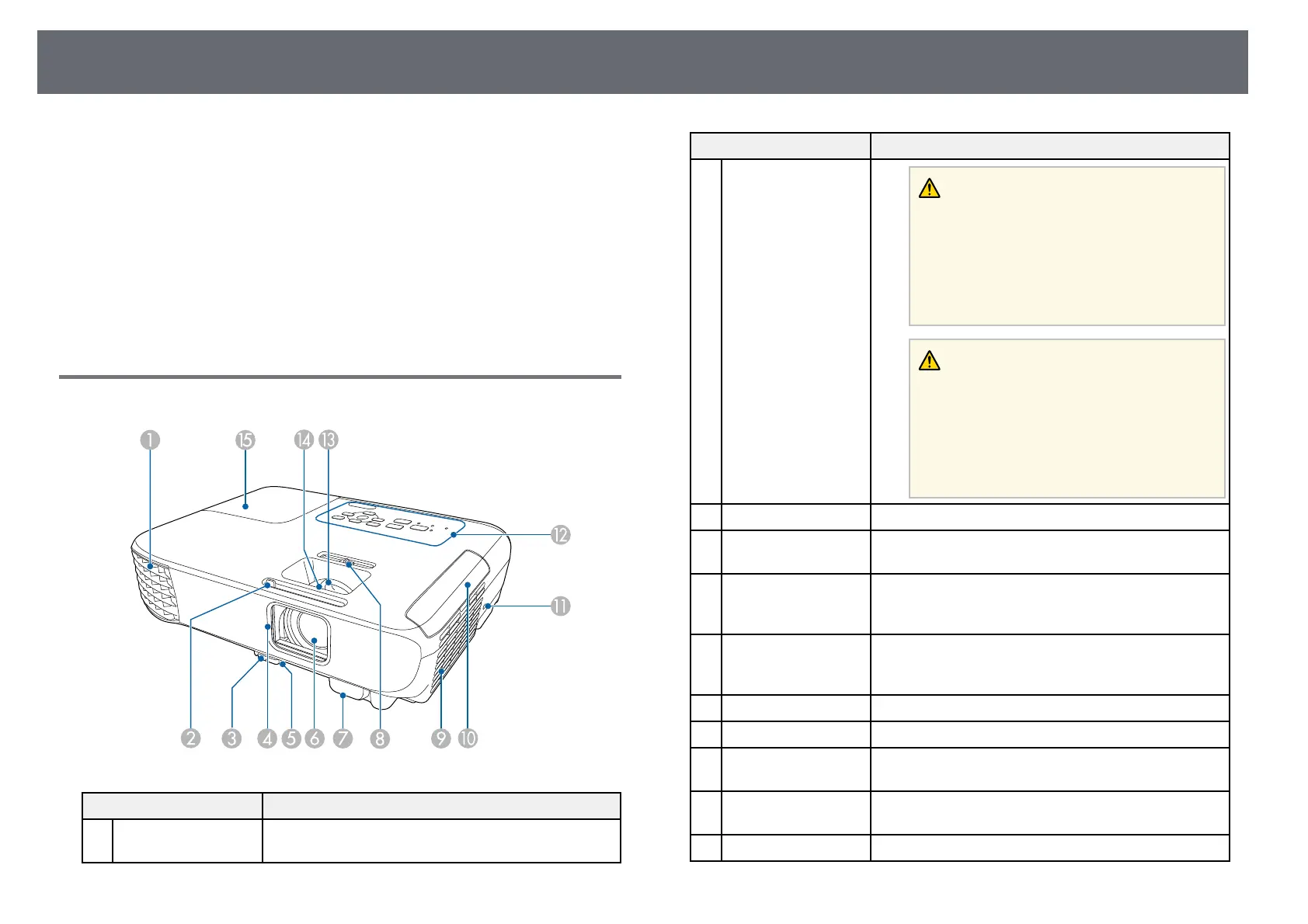

Projector Parts - Front
Name Function
A
Air exhaust vent Exhaust vent for air used to cool the projector
internally.
Name Function
Warning
Do not look into the vents. If the lamp
explodes, gases may escape and small
fragments of glass may be scattered which
could cause an injury. Contact a doctor if any
fragments of broken glass are inhaled or get
into the eyes or mouth.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
B
A/V Mute slide lever Slide the knob to open and close the lens cover.
C
Foot release lever Press the foot release lever to extend and retract the
front adjustable foot.
D
Lens cover Close when not using the projector to protect the lens.
By closing it during projection you can hide the image
and the sound.
E
Front adjustable foot When the projector is set up on a surface such as a
desk, extend the foot to adjust the position of the
image.
F
Lens Images are projected from here.
G
Remote receiver Receives signals from the remote control.
H
Horizontal keystone
slider
Corrects horizontal distortion in the projected image.
I
Air intake vent (air
filter)
Takes in air to cool the projector internally.
J
Air filter cover Open to access the air filter.

Epson EB-W41 Specifications

General

Matrix size	0.59 \
Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.68 - 2.02 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Screen size compatibility	33 - 320 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	2235 ANSI lumens
Lamp type	UHE
Lamp power	210 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	10000 h
3D	No
Color modes (2D)	Cinema, Dynamic
Video processing	10 bit
Video color modes	Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
Focus	Manual
Throw ratio	1.3 - 1.56:1
Zoom capability	Yes
Focal length range	16.9 - 20.28 mm
Aperture range (F-F)	1.49 - 1.72
HDMI connector type	Full-size
USB 2.0 ports quantity	1
S-Video inputs quantity	0
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
RMS rated power	2 W
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	282 W
Power consumption (economy mode)	203 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet width	800 mm
Pallet height	150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2500 g
Package depth	380 mm
Package width	158 mm
Package height	335 mm
Package weight	3.76 g
