Projector Connections
23
a

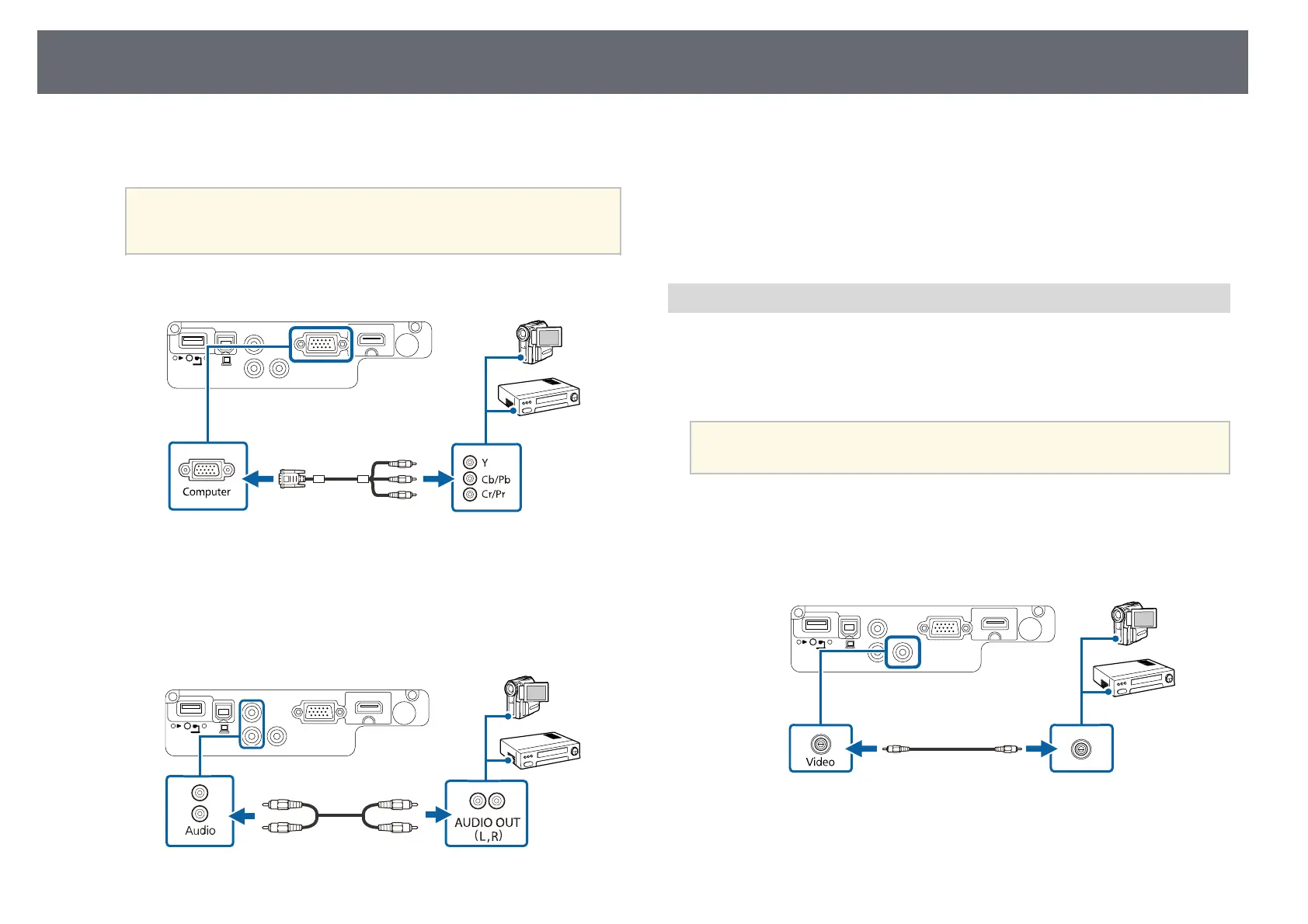

Connect the component connectors to your video source's color-coded
component video output ports.
a
The ports usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using
an adapter, connect these connectors to your component video
cable.
b
Connect the VGA connector to a Computer port on the projector.
c
Tighten the screws on the VGA connector.
d
Connect the audio cable to your video source's audio-out ports.
e
Connect the other end to the projector's Audio ports.
If your image colors appear incorrectly, you may need to change the Input
Signal setting in the projector's Signal menu.
s Signal > Advanced > Input Signal
gg Related Links
• "Input Signal Settings - Signal Menu" p.102
Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the
projector using a RCA-style video or A/V cable.
You can play sound through the projector's speaker system by connecting a
commercially available RCA audio cable.
a
Make sure the audio cable is labeled "No resistance".
a
Connect the cable with the yellow connector to your video source's
yellow video output port.
b
Connect the other end to the projector's Video port.
c
Connect the audio cable to your video source's audio-out ports.
