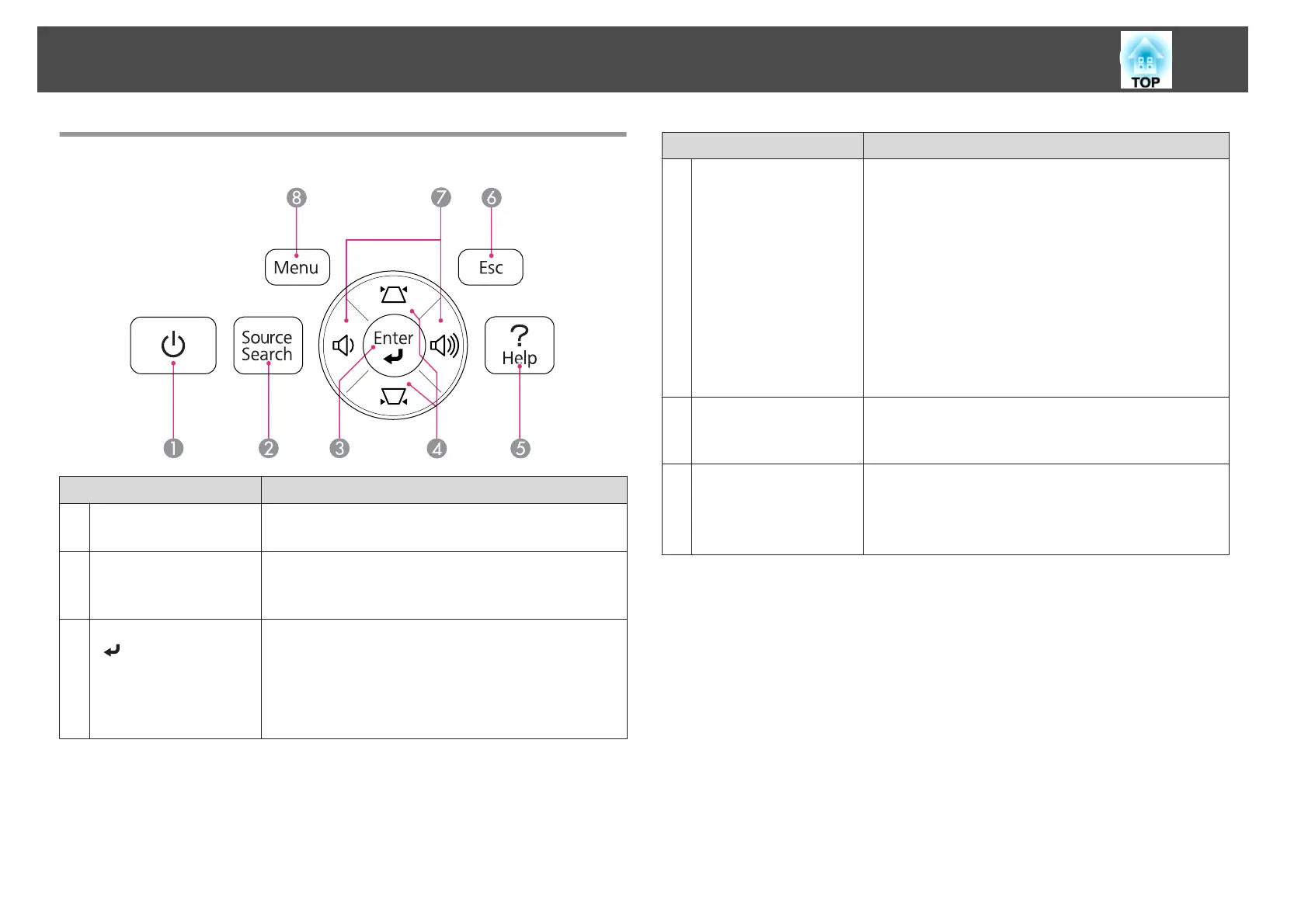

Control Panel
Name Function
A
[t] button
Turns the projector power on or off.
s "From Installation to Projection" p.26
B
[Source Search]
button
Changes to the next input source that is sending an image.
s "Automatically Detect Input Signals and Change the
Projected Image (Source Search)" p.27
C
[Enter] button
[
]
• When the Configuration menu or the Help screen is
displayed, it accepts and enters the current selection and
moves to the next level.
• If pressed while projecting analog RGB signals from the
Computer port, you can automatically optimize
Tracking, Sync., and Position.
Name Function
D
[w][v] buttons
• For EB-X14G
Displays the Keystone screen allowing you to
correct keystone distortion in vertical and horizontal
directions.
• For EB-W02/EB-X02/EB-S02/EB-W01/EB-S01
Performs vertical keystone correction.
s "Correcting manually" p.33
• If pressed when the Configuration menu or the Help
screen is displayed, these buttons select menu items and
setting values.
s "Using the Configuration Menu" p.55
s "Using the Help" p.65
E
[Help] button
Displays and closes the Help screen which shows you how
to deal with problems if they occur.
s "Using the Help" p.65
F
[Esc] button
• Stops the current function.
• If pressed when the Configuration menu is displayed, it
moves to the previous menu level.
s "Using the Configuration Menu" p.55
