14
f

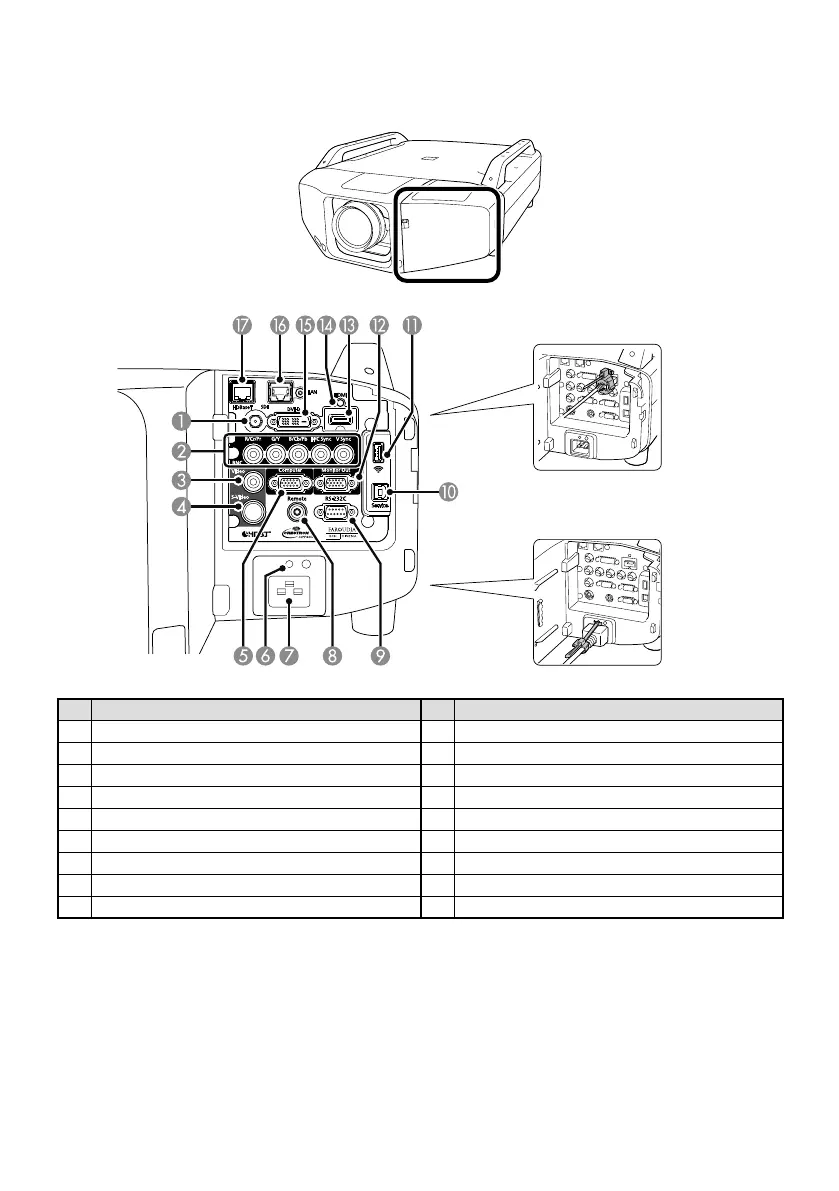

Interface
No Name No Name
A
SDI input port (BNC)
*1
J
Service port
*2
B
BNC input port (5BNC)
K
Wireless LAN unit port (USB Type-A)
C
Video input port (BNC)
L
Monitor out port (Mini D-Sub15-pin)
*3
D
S-Video input port (Mini Din4-pin)
M
HDMI input port (HDMI)
*4
E
Computer input port (Mini D-Sub15-pin)
N
Cable holder (for HDMI cable)
F
Cable holder (for power cable)
O
DVI-D input port (DVI-D 24-pin)
G
Power inlet
P
LAN port (RJ45: 100Base-TX)
H
Remote port (stereo mini)
Q
HDBaseT port (HDBaseT)
*5
I
RS-232C port (Mini D-Sub 9-pin)
*1 EB-Z10005U/EB-Z10000U/EB-Z9875U/EB-Z9870U only.
*2 For maintenance personnel only. Should not normally be used.
*3 Only analog RGB signals can be output from the BNC port and the Computer port.
*4 The projector does not have a built-in speaker, so there is no audio output.
*5 Use a category 5e or category 6 shielded LAN cable.
N
Cable holder (for HDMI cable)
F
Cable holder (for power cable)
*Position of interface on projector
