Epson EH-TW750 User Manual

Projector Parts and Functions
14
Name Function
K
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
L
Control panel Operates the projector.
M
Zoom ring Adjusts the image size.
N
Focus ring Adjusts the image focus.
O
Lamp cover Open to access the projector's lamp.
gg Related Links
• "Projector Indicator Status" p.150
• "List of Functions" p.11
• "Resizing the Image with the Zoom Ring" p.48
• "Focusing the Image Using the Focus Ring" p.49
• "Correcting the Image Shape with the Horizontal Keystone Slider" p.44

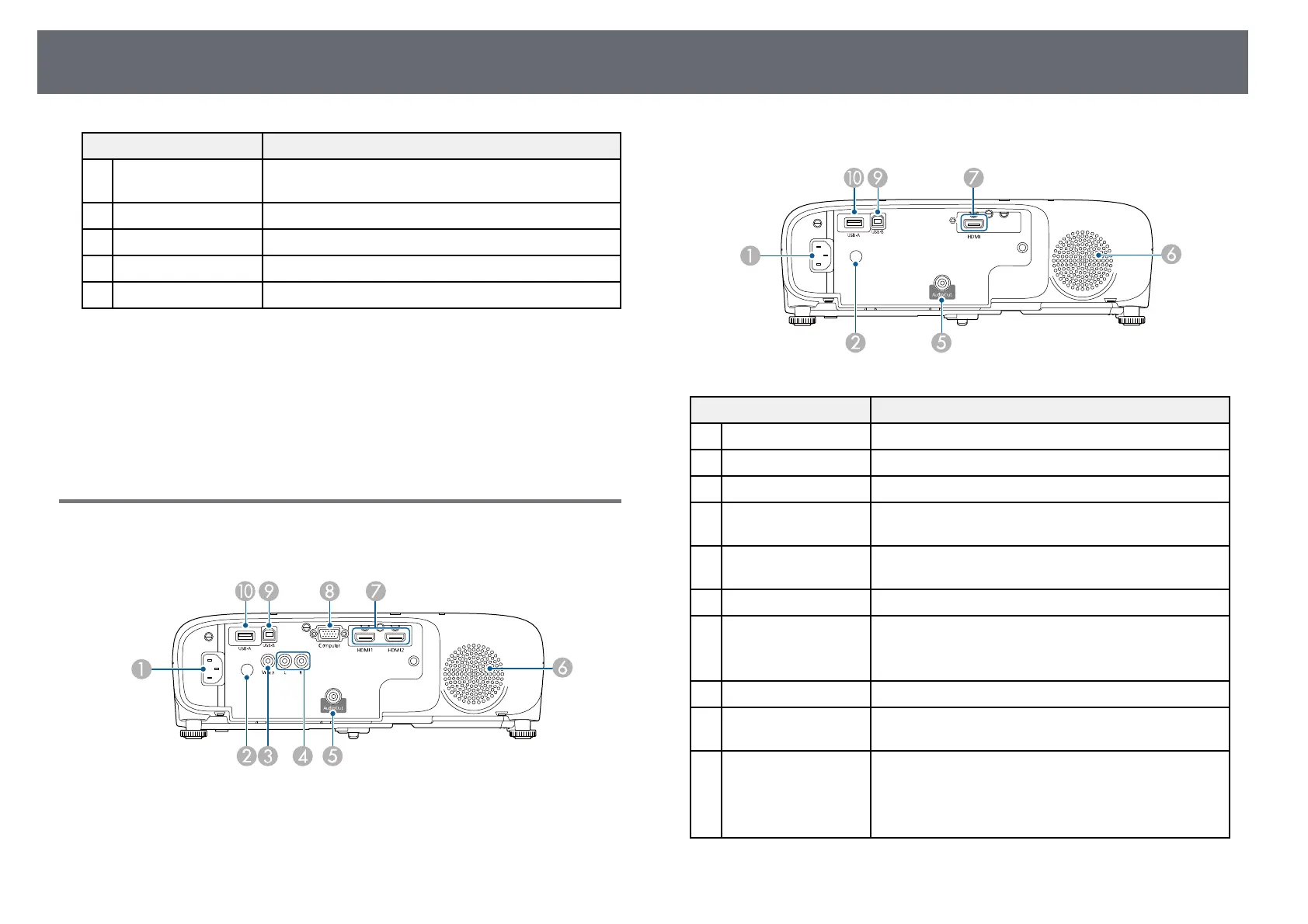

Projector Parts - Rear
EH‑‑TW750/EH‑‑TW710
EH‑‑TW740
Name Function
A
Power inlet Connects the power cord to the projector.
B
Remote receiver Receives signals from the remote control.
C
Video port Inputs composite video signals from video sources.
D
L-Audio-R ports Inputs audio from equipment connected to the
Computer or Video port.
E
Audio Out port Outputs audio from the current input source to an
external speaker.
F
Speaker Outputs audio.
G
HDMI1, HDMI2
ports
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers.
This projector is compatible with HDCP.
H
Computer port Inputs image signals from a computer.
I
USB-B port Connects a USB cable to the computer to project
computer images.
J
USB-A port Connects a USB memory device or a digital camera
and projects movies or images using PC Free.
Connects the optional document camera.
Connects the wireless LAN module.

Epson EH-TW750 Specifications

General

Matrix size	0.61 \
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	1.02 - 1.23 m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2200 ANSI lumens
Lamp type	UHE
Lamp power	210 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Focus	Manual
Offset	14 %
Throw ratio	1.02 - 1.23:1
Zoom capability	Yes
Focal length range	14.06 - 16.82 mm
Aperture range (F-F)	1.58 - 1.7
3D	No
Video processing	10 bit
Video color modes	Cinema, Dynamic, Game, Bright cinema
Supported video modes	1080p
Analog signal format system	-
Supported graphics resolutions	1920 x 1080 (HD 1080)
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Noise level	37 dB
Preset modes	Bright, Cinema, Dynamic, Game
Projection modes	Ceiling
Country of origin	Philippines
Noise level (economic mode)	28 dB
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Harmonized System (HS) code	85286200
Cables included	AC
Bundled software	iProjection
Storage temperature (T-T)	10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington
USB display function	2 in 1: Image / Mouse

Weight and Dimensions

Depth	252 mm
Width	302 mm
Height	92 mm
Weight	2800 g
Package depth	375 mm
Package width	353 mm
Package height	157 mm
Package weight	3950 g
