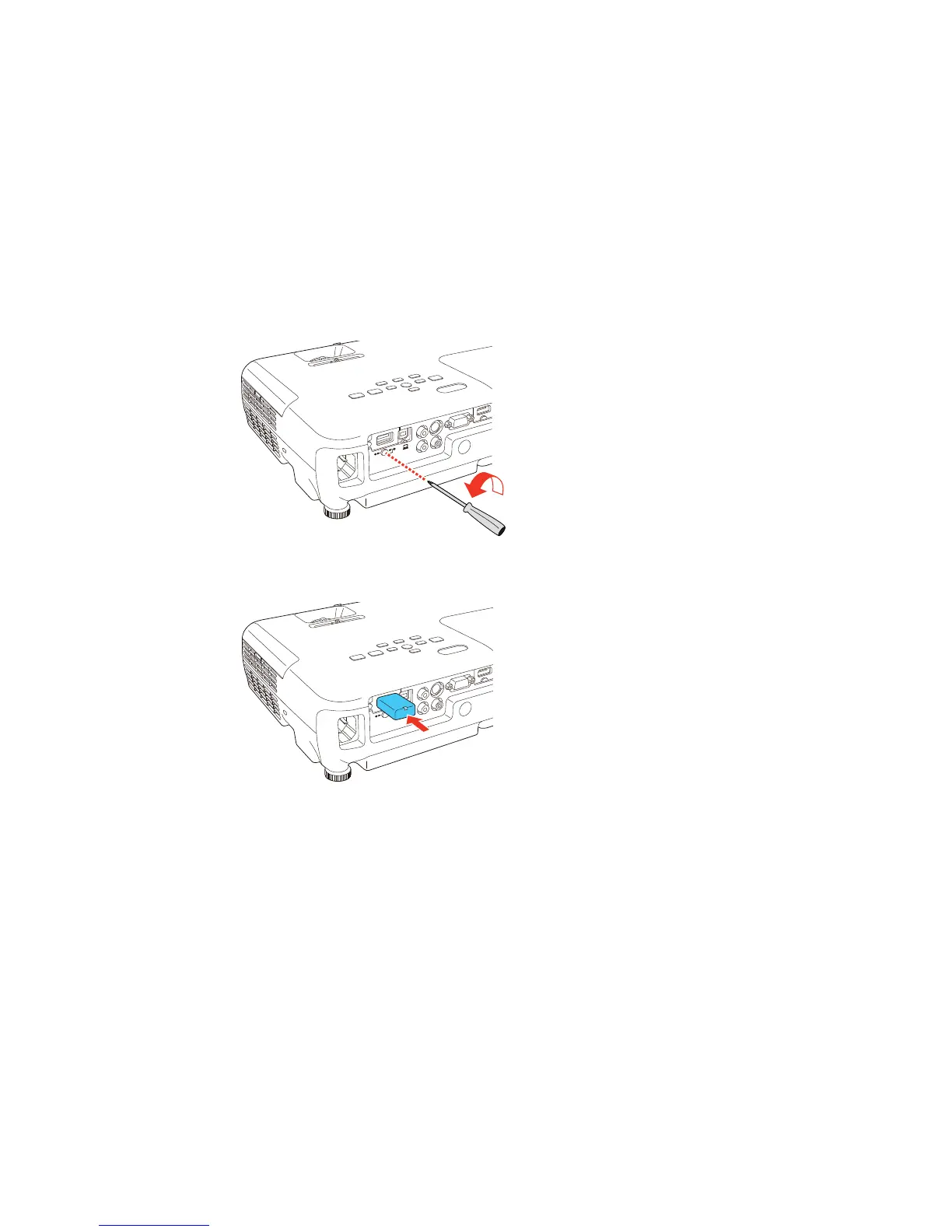

1. Remove the wireless LAN module cover screw.

2. Insert the wireless LAN module into the USB-A port.
