Epson EX3220 - Page 17

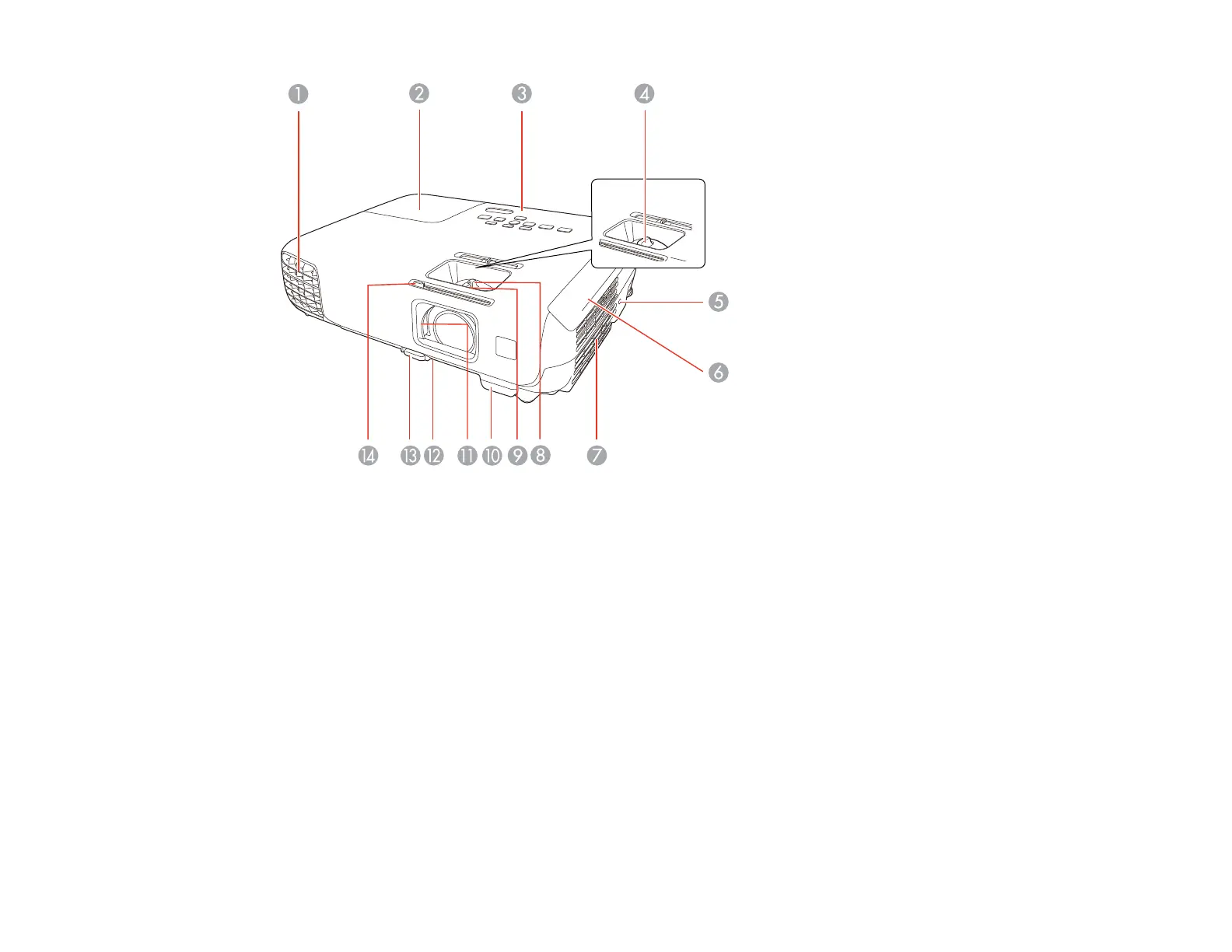

1 Exhaust vent
2 Lamp cover
3 Control panel
4 Focus ring (EX3220/VS230)
5 Kensington security lock slot
6 Air filter cover
7 Air filter and intake vent
8 Zoom ring (EX5220/EX5230/EX6220/EX7220/VS330/VS335W)
9 Focus ring (EX5220/EX5230/EX6220/EX7220/VS330/VS335W)
10 Remote receiver
11 A/V Mute slide (lens cover)
12 Front adjustable foot
17
