Epson EX5230 User Guide

Connecting to a Computer for USB Video and Audio
If your computer meets the system requirements, you can send video and audio output to the projector
through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a
USB cable.
Note: An HDMI connection is recommended for projecting content requiring high bandwidth.
1. In the projector's Extended menu, set the USB Type B setting to USB Display.
2. Turn on your computer.

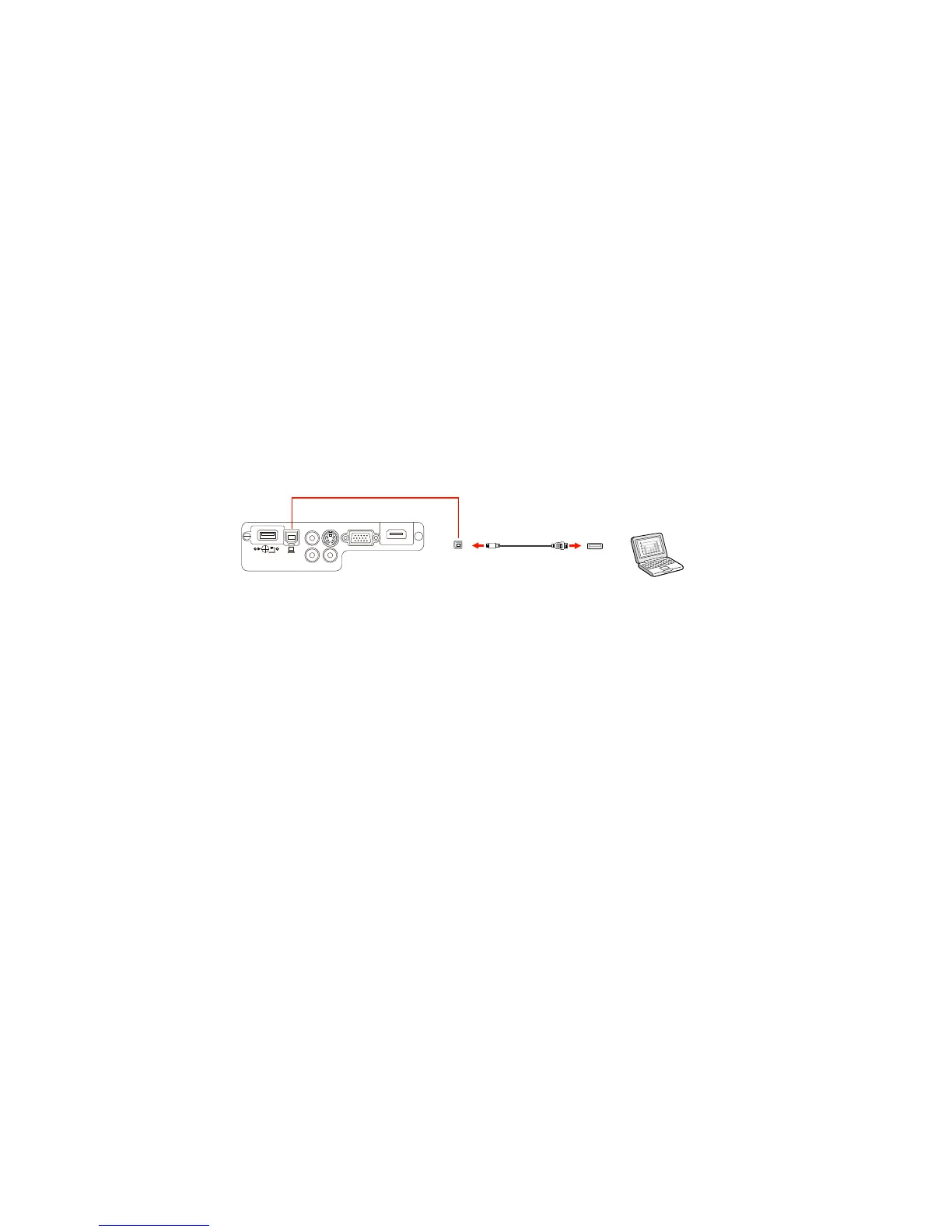

3. Connect the cable to your projector's USB-B port.
4. Connect the other end to any available USB port on your computer.
5. Do one of the following:
• Windows 8.x: Click EPSON_PJ_UD in the upper right-corner, then select Run EMP_UDSE.EXE
in the dialog box that appears to install the Epson USB Display software.
• Windows 7/Windows Vista: Select Run EMP_UDSE.EXE in the dialog box that appears to
install the Epson USB Display software.
• Windows XP: Wait as messages appear on your computer screen and the projector installs the
Epson USB Display software on your computer.
• Windows 2000: Select Computer, EPSON_PJ_UD, and EMP_UDSE.EXE to install the Epson
USB Display software.
• OS X: The USB Display setup folder appears on your screen. Select USB Display Installer and
follow the on-screen instructions to install the Epson USB Display software.
Follow any on-screen instructions. You need to install this software only the first time you connect
the projector to the computer.
Note: If you are using Windows XP or Windows 2000 and you see a message asking if you want to
restart your computer, select No

Epson EX5230 Specifications

Projection Specifications

projection system	3LCD, 3-chip technology
projection method	Front/rear/ceiling mount
pixel number	786, 432 dots (1024 x 768) x 3

Brightness

color brightness	3500 lumens
white brightness	3500 lumens
contrast ratio	Up to 10, 000:1

Resolution

native resolution	1024 x 768 (XGA)
resize support	640 x 480 (VGA), 1024 x 768, 1152 x 864 (SXGA), 1280 x 800, 1440 x 900, 1400 x 1050 (SXGA+)
aspect ratio	4:3

Lamp

lamp type	200 W UHE
lamp life (ECO mode)	Up to 6000 hours
lamp life (normal mode)	Up to 5000 hours

Lens

f-number	1.58 – 1.72
focal length	16.9 – 20.28 mm
zoom ratio	Digital zoom 1.0 – 1.2

Power

power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption (normal mode)	283 W
power consumption (ECO mode)	207 W

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
fan noise (normal mode)	37 dB
fan noise (ECO mode)	29 dB

Dimensions and Weight

dimensions (including feet)	11.6" x 9.0" x 3.1"
dimensions (excluding feet)	11.6" x 9.0" x 3.0"
weight	5.29 lb
