Disassembly/Reassembly Overview 13
L200/L201/L100/L101 Revision A

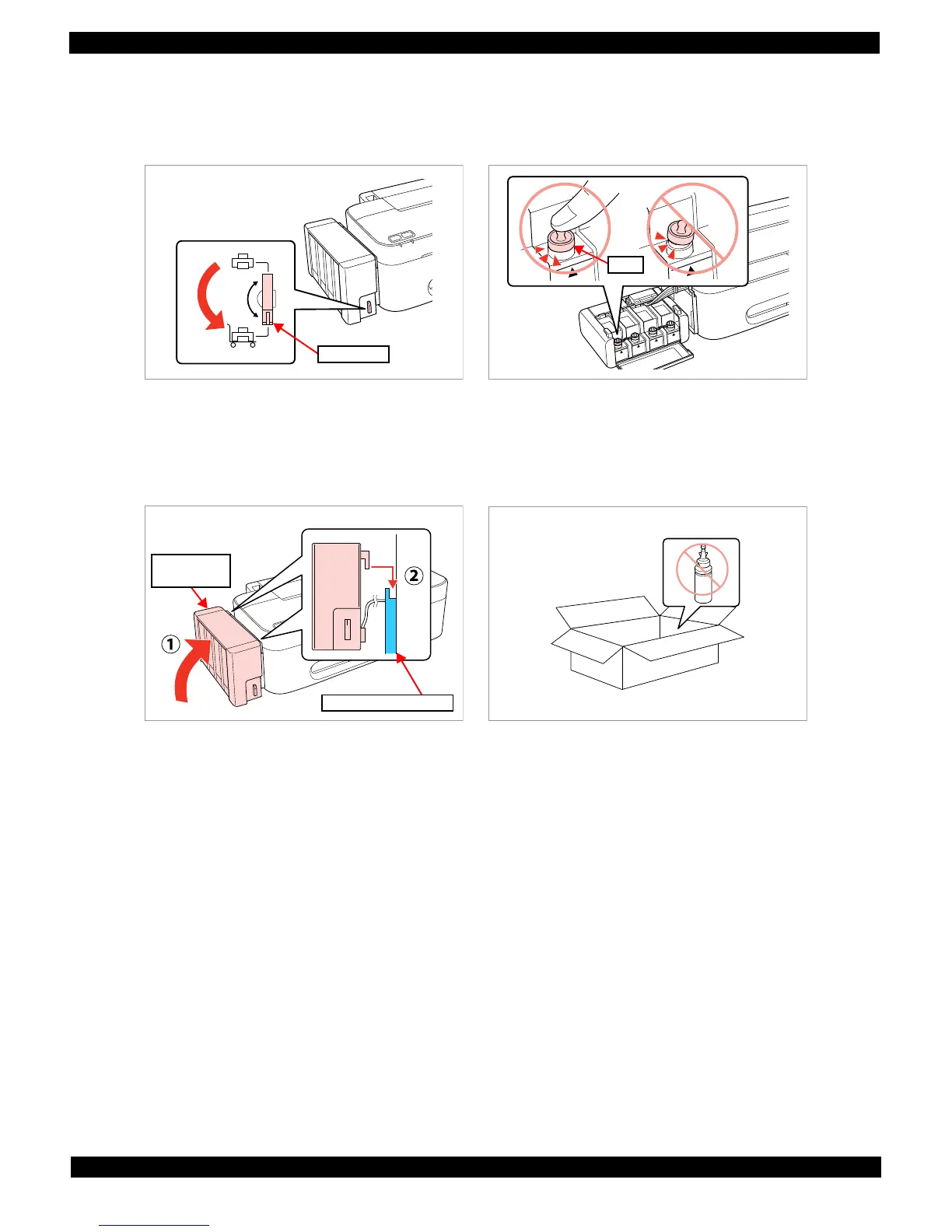

Points to be checked before packing the printer
The Valve Lever is on the position shown below
(the Choke Valve is closed). (See Figure 1-2.)
All the caps of the Ink Supply Tank Assy are
securely closed.
The hooks (x2) of the Ink Supply Tank Assy are
securely engaged with the Ink Supply Holder Assy.
The opened ink bottle is not included in the box.
