Epson L3160

To Next Page

To Previous Page

Product Parts Locations

See these sections to identify the parts on your product.

Product Parts - Front

Product Parts - Inside

Product Parts - Back

Parent topic: Product Basics

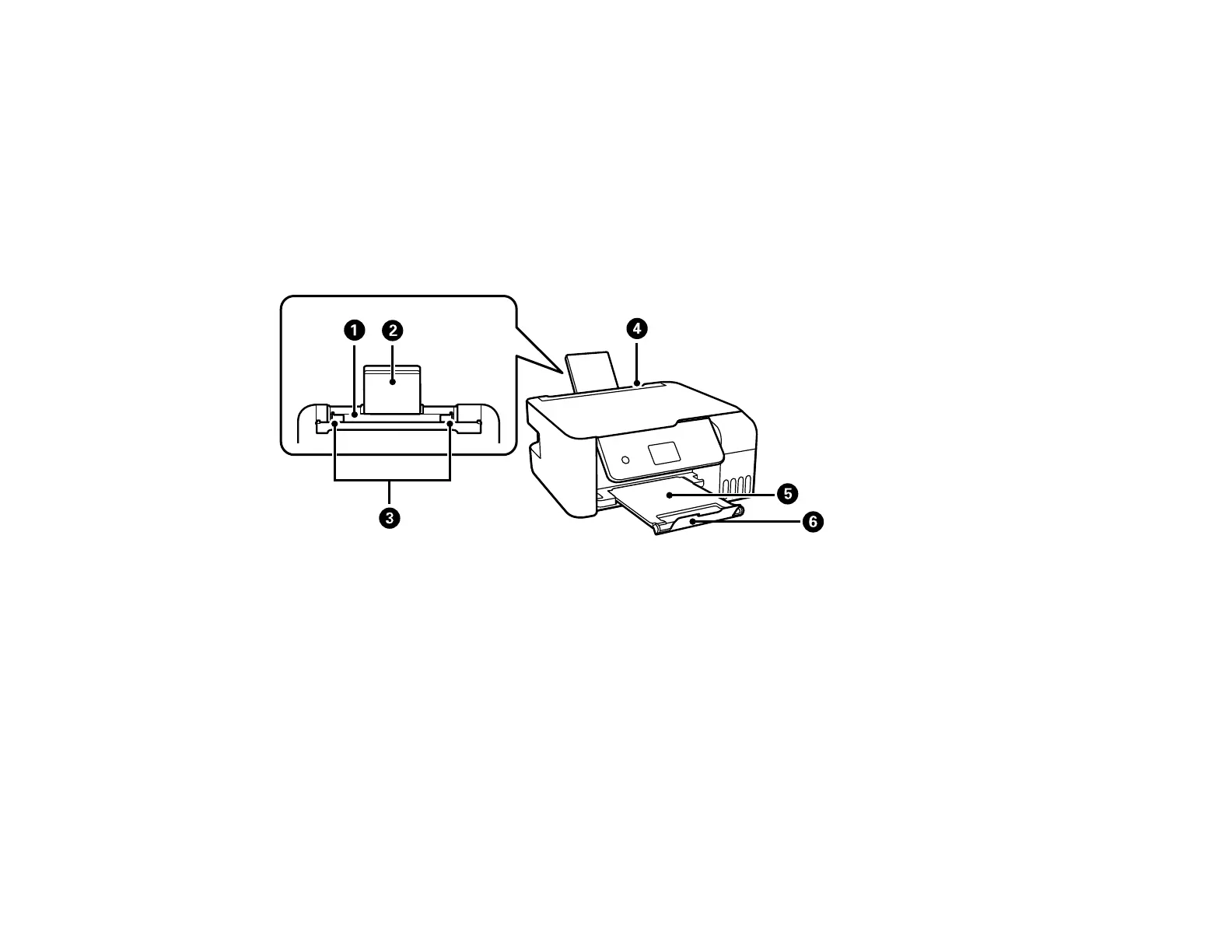

Product Parts - Front

1 Rear paper feed

2 Paper support

3 Edge guides

4 Feeder guard

5 Output tray

6 Paper stopper

Parent topic: Product Parts Locations
