LQ-1070+
Dimensions and weight:
Electrical
Height
16Omm
(6.3 inches)
Width 609 mm (24.0 inches)
Depth
368mm(14.5
inches)
weight
9.5
kg (21.0 lb)
Rated voltage:
AC 120 V (120 V model)
Input voltage range: AC 103.5 to 132 V (120 V model)
Rated current:
2.0
A (120 V model)
Power consumption:
(during self-test printing in draft mode,
at 10 cpi) Approx. 36 W (120 V model)
Rated frequency range: 50 to 60 Hz
Inputfrequency range: 49.5 to 60.5 Hz
Insulation resistance: 10
MR
minimum (at DC 500 V between AC
power line and chassis)
Dielectric strength (between AC line and chassis):
120
V model:
AC 1.0 kV (rms), 1 minute
or AC 1.2
kV
(rms), 1 second
Environmental
Temperature: Operation:
5”
to 35°C
(41”
to 95°F)
Storage: -30” to 60°C (-22” to 140°F)
Humidity:
Operation: 10% to 80% RH without
condensation
Storage: 5% to 85% RH without condensation
Paper
Single sheets:
Width
top
148 to 420 mm (5.8 to 16.5 inches)
front 182 to 364 mm (7.2 to 14.3 inches)
IJ=gth
364 mm (14.3
inches) maximum
Thickness 0.065 to 0.14 mm (0.0025 to 0.0055 inches)
weight
52.3
to 90
g/m2
(14 to 24 lb)
Single-sheet multi-part
fms:
Width 182 to 364 mm (7.2 to 14.3 inches)
LeIYi+
257
mm to 297 mm (10.1 to 11.7 inches)
copies Four sheets (1 original plus up to 3 copies)
ThiCklESS
0.12
to 0.32 mm (0.0047 to 0.012 inches)
Weight
40
to 58
g/m2
(12 to 15 lb) per sheet
l Load single-sheet multi-part forms only
into the front slot.
l Use only carbonless multi-part forms.
Continuous paper:
Width 101 to 407 mm (4 to 16 inches) for
LQ-1070+
copies
Four sheets (1 original plus up to 3 copies)
ThickneSS
0.065 to 0.10 mm (0.0025 to 0.0039 inches) for
one sheet
Weight
0.065 to 0.32 mm (0.0025 to 0.012 inches) total
52.3
to 82
g/m2
(14 to 22 lb) for one sheet
40 to 58
g/m2
(12 to 15 lb) per sheet in multi-
part forms
l Use only carbonless multi-part forms.
Labels (continuous only):
Size
63.5
x23.8mm(2?4~15/16
inches)
101 x 23.8 mm (4 x
15/16
inches)
101 x 27 mm (4 x
17/16
inches)
Thickness
0.07
to 0.09 mm (0.0028 to 0.0031 inches) for
backing sheet
Envelopes:
Size
ThiCkIE?SS
weight
0.16
to 0.19 mm (0.0063 to 0.0075 inches) total
l
Use continuous type labels only.
l
Use labels only under normal temperature
and humidity conditions.
No. 6-166 x 92 mm (6.5 x 3.6 inches)
No. 10-240 x 104 mm (9.5 x 4.1 inches)
0.16
to 0.52 mm (0.0063 to 0.0197 inches)
45
to 91
g/m2
(12 to 15 lb)
l
Use envelopes only under normal
temperature and humidity conditions.
l
Insert envelopes into the top slot only.

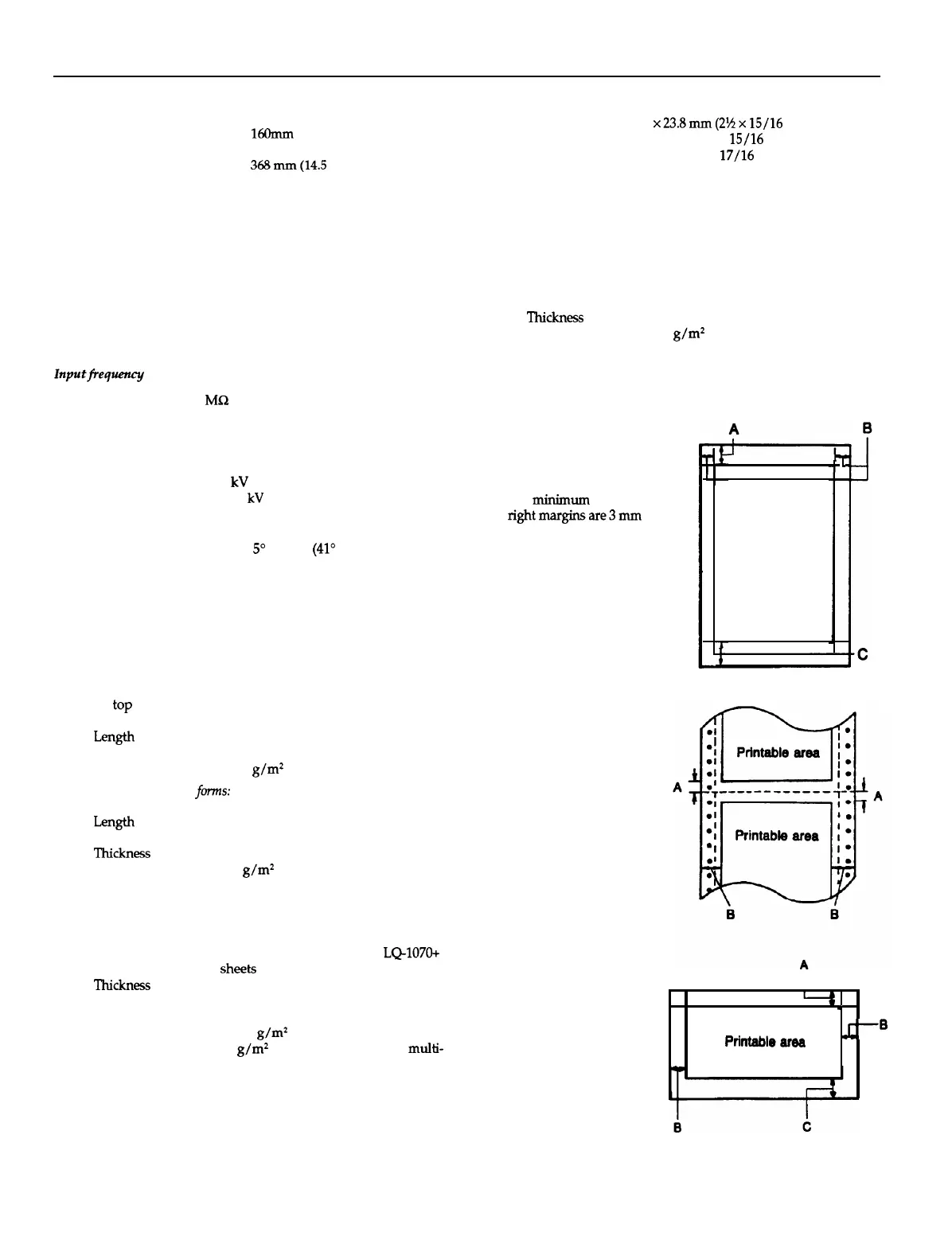

Printable area:
Single sheets
A Theminimum top margin
is 8.5 mm (0.33 inches).
B The
rninhum
left and
rightmarginsare3mm
(0.12
inches). However,
the maximum printable
width is 345 mm
(13.6 inches).
C Theminimum bottom
margin is 13.5 mm
(0.53 inches).
Continuous paper
A The
minimum top and
bottom margins (above
and below the perforation)
are
9 mm (0.35
inches).
B Theminimum left and
right margins are 13 mm
(0.51 inches). However,
the maximum printable
width is 345 mm
(13.6 inches).
Envelopes
A Theminimum top
margin is 8.5 mm
(0.33 inches).
B Theminimum left
and right margins
are
3 mm (0.12
inches).
C Theminimum bottom
margin is 13.5 mm
(0.53 inches).
Printable area
‘II
I
I
Printablearea
J-6
24-Pin Printers
LQ-1070+ - 2
7/20/93
To Next Page
