Epson M200 Series User Manual

M200 / M205 / M100 / M105 Series Revision A
Confidential
Disassembly/Reassembly Disassembly/Reassembly Procedures 41

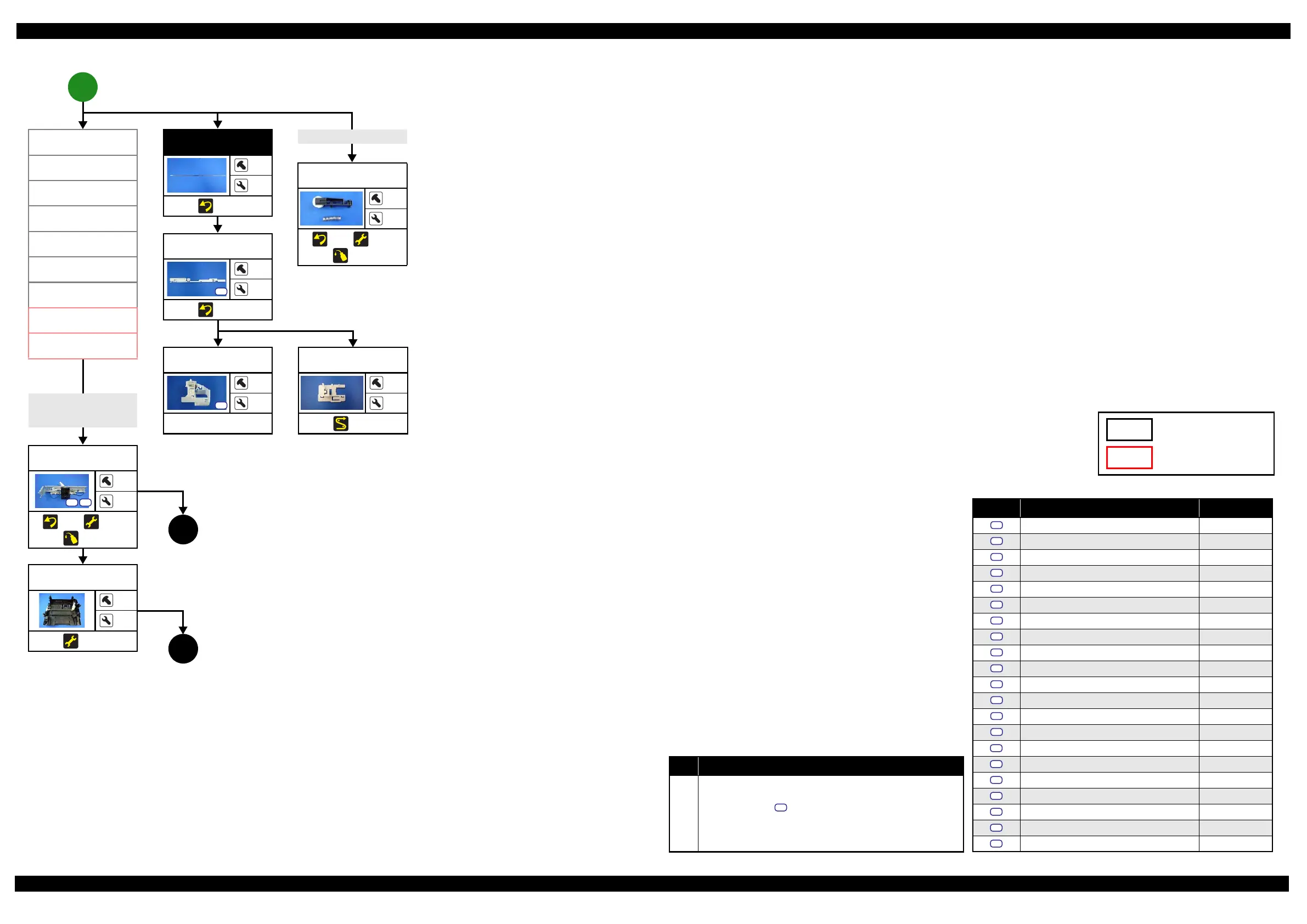

Flowchart 2-2. Common Printer Mechanism (2)
FFC/cable list
No. FFC/Cable
7
Remove/disconnect the following.
 Panel FFC (CN2) (double-sided tape)
 Grounding wire ( x1)
 PF Motor Cable
 PS Unit cable (CN501)
 CR Motor cable
S17
iii
CR Scale
---
2
(p 49)
PF Encoder Sen-
sor (p40)
PF Scale (p40)
CR Scale (p41)
CR Scale Cover
Frame (p41)
CR Driven Pul-
ley Assy (p41)
LD Roller Cover
(p41)
Strengthen Plate
Upper (p36)
Main Board FFC
Holder (p36)
Ethernet Board
Assy (p36)
 CR Timingbelt
FFC Holder
---
1
(p 58)
LD Roller Cover
1
1
---
S4
CR Scale Cover
Frame
3
2
(p 49)
S19
 FFC/Cable* 7
 Extension spring (x3)
 PF Grounding Spring
7
(p 44)
Frame Base Assy
---
---
(p 59)
8 (p 44)
(p 34)Multifunction Printer :
(p 37)
Singlefunction Printer :
Main Frame
Assy
5
---
(p 51) (p 59)
(p 73)
S7 S17
CR Driven
Pulley Assy
---
4
(p 50) (p 59)
(p 73)
Model-specific parts/unit
Common parts/unit
Screw type/torque list
Symbol Screw Type Torque
C.B.P-TITE (S-P1) SCREW 3x12 F/ZN-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 2.6x5 F/ZN-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 2
± 0.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 2.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 4
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZB-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 6
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 5 ± 1 kgf·cm
C.B.P-TITE SCREW 2.5x8 F/ZN-3C 2.5
± 0.5 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 7 ± 1 kgf·cm
C.B.P-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.B.P-TITE SCREW 3x6 F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE (P2) SCREW 3x6 F/ZN-3C 7
± 1 kgf·cm
C.B.S-TITE SCREW 2x4 F/ZN-3C 2 ± 0.5 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZB-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 8 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 7
± 1 kgf·cm
C.P-TITE SCREW 3x4 F/ZN-3C 4 ± 1 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZB-3C 6
± 1 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
