Epson M205 Service Manual

Confidential
Disassembly/Reassembly Overview 21
M200 / M205 / M100 / M105 Series Revision A

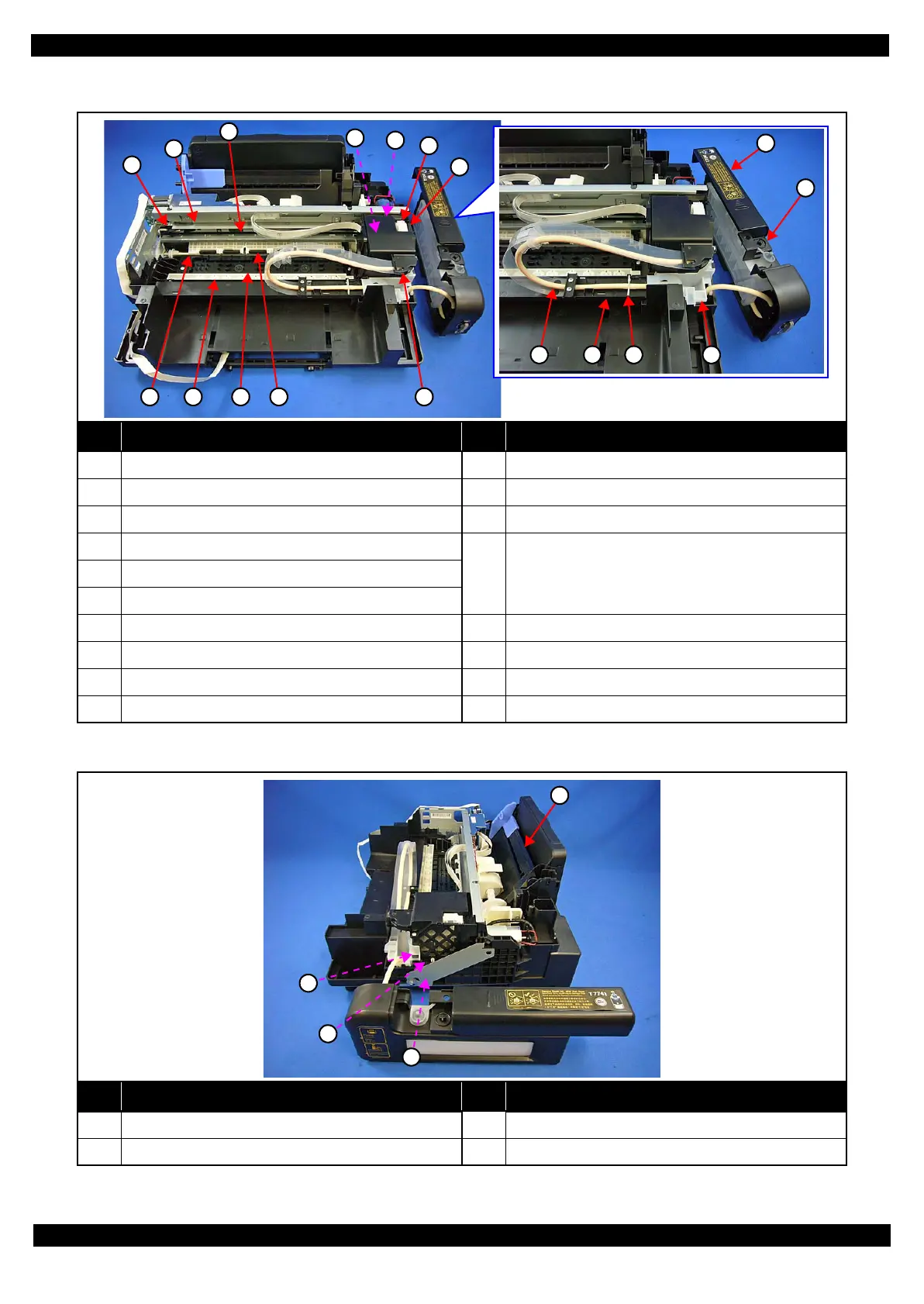

 Printer mechanism
Figure 2-3. Printer Mechanism: Front
Figure 2-4. Printer Mechanism: Right
No. Name No. Name
1 CR Driven Pulley Assy (p41) 11 Paper Guide Upper Assy (p44)
2 CR Scale (p41) 12 Adapter Cover (p35)
3 CR Timing Belt (p44) 13 Ink Supply Tank Cover (p34)
4 Printhead (p34)
14
Ink Supply Tank Assy (p35)
Cap (p35) / Valve Lever (p43) / Ink Supply Tank Tube
Assy (p43) / Housing Ink Supply Tank (p43) / Ink
Supply Tank (p43)
5 CR Encoder Sensor (p44)
6 Adapter (p35)
7 CR Unit (p44) 15 Ink Supply Tube Guide 1st (p35)
8 PF Roller Unit (p44) 16 Joint (p35)
9 Star Wheel Holder Assy (p36) 17 Ink Supply Tube Guide 2nd (p35)
10 Paper Guide Front Unit (p34) 18 Ink Supply Tube (p35)
No. Name No. Name
1 Hopper (p45) 3 Cap Assy (p36)
2 Cap Lever (p39) 4 Porous Pad for Cap Assy (p36)
1
2
3
5
8 9
7
10
4
11
13
14
15161718
12
6
3
4
1
2

Epson M205 Specifications

General

Print Resolution	1440 x 720 dpi
Functions	Print, Copy, Scan
Duplex Printing	Manual
Scanner Type	Flatbed
Scan Resolution	1200 x 2400 dpi
Ink Type	Pigment ink
Connectivity	USB, Ethernet
Paper Capacity	150 sheets
Paper Handling Input	150 sheets standard, 150 sheets maximum
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes (DL, C6)
