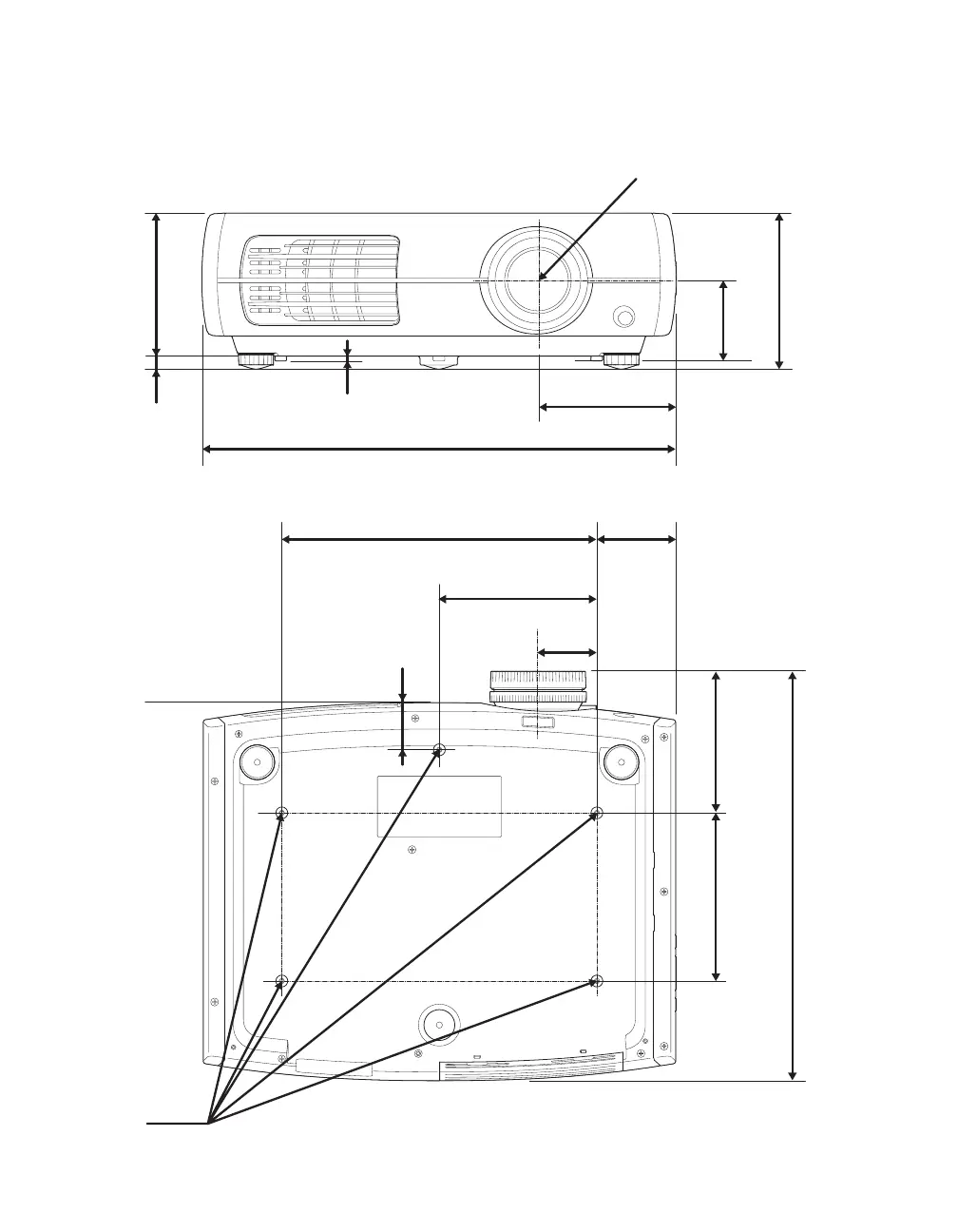

The following illustrations show the dimensions of the projector:
5.4 in.
36 mm
Center of lens
2.8 in.
72 mm
5.8 in.
148.3 mm
0.5 in.
2
.3 mm
5.2 in.
131 mm
17.7 in.
450 mm
0.2 in.
4.5 mm
11.8 in.
300 mm
5.9 in.
150 mm
3.0 in.
75 mm
2.2 in.
56 mm
1.8 in.
45 mm
5.3 in.
134.7 mm
6.3 in.
160 mm
15.3 in.
389.7 m
m
M4×9mm
