EPSON Stylus COLOR 1520
5/97 EPSON Stylus COLOR 1520 - 5
Electrical
Note:
Check the label on the back of the printer for your printer’s voltage.
Environmental
Temperature Operation: 50 to 95 °F (10 to 35 °C)
Storage:
–4 to 140 °F (–20 to 60 °C),
stored in shipping container
1 month at 104 °F (40 °C)
120 hours at 140 °F (60 °C)
Humidity Operation: 20 to 80% RH
Storage: 5 to 85% RH (stored in
shipping container, without
condensation)
Safety Approvals
Safety standards UL 1950 with D3, CSA C22.2 950
with D3
EMC FCC part 15 subpart B class B
Interfaces
Parallel interface
Forward channel
Data format: 8-bit parallel, IEEE-1284 compatibility
mode
Synchronization:
STROBE pulse
Handshake
timing:
BUSY and ACKNLG signals
Signal level: TTL compatible
Connector: 57-30360 Amphenol connector or
equivalent
Reverse channel
Transmission
mode: IEEE-1284 Nibble mode
Adaptable 57-30360 Amphenol Connector or
connector: equivalent
Synchronization: Refer to the IEEE-1284 specification
Handshaking: Refer to the IEEE-1284 specification
Signal level: IEEE-1284 Level 1 device
Data
transmission
timing: Refer to the IEEE-1284 specification
Serial interface
Standard: Based on RS-423
Synchronization: Synchronous
Bit rate: Maximum 1.8 Mbps
Handshaking: X-ON/X-OFF, DTR protocol
Word format: Data bit: 8 bits
Parity bit: None
Start bit: 1 bit
Stop bit: 1 bit
Connector: 8-pin mini-circular connector
Recommended Apple
®
System Peripheral-8 cable
cable: (preferably Belkin brand)

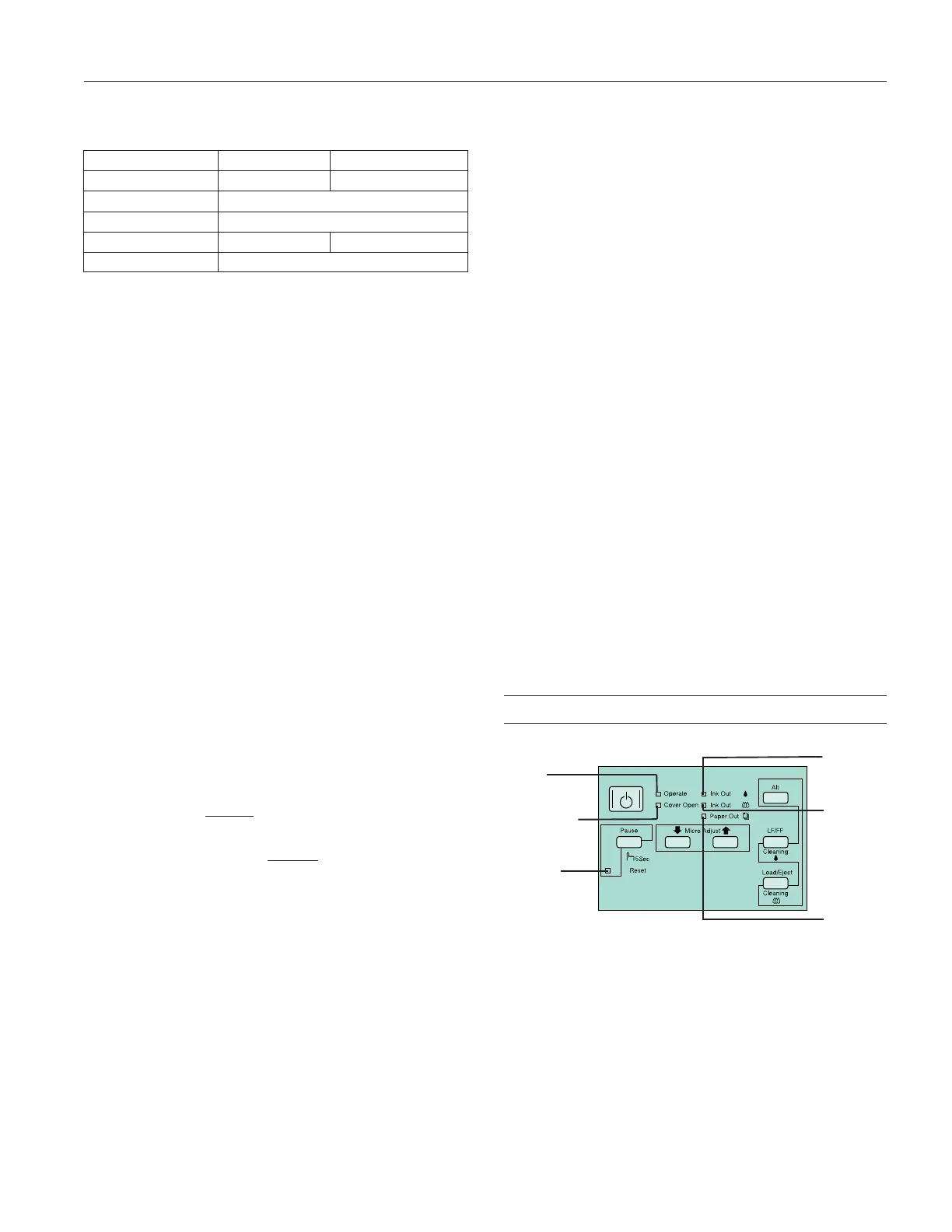

Control Panel
Specification 120V Model 220−240V Model
Input voltage range 103.5 to 132V 198 to 264V
Rated frequency range 50 to 60 Hz
Input frequency range 49.5 to 60.5 Hz
Rated current 0.7A 0.4A
Power consumption Approx. 21W (ISO/IEC 10561 Letter Pattern)
color
Ink Out
light
black
Ink Out
light
Paper Out
light
Operate
light
Cover Open
light
Pause
light
To Next Page
