EPSON Stylus CX4900/CX4905/CX5000/DX5000/DX5050/CX5900/CX6000/DX6000/DX6050 Revision A

DISASSEMBLY/ASSEMBLY Printer Section 132

4.4.6 Housing, Upper

 External view

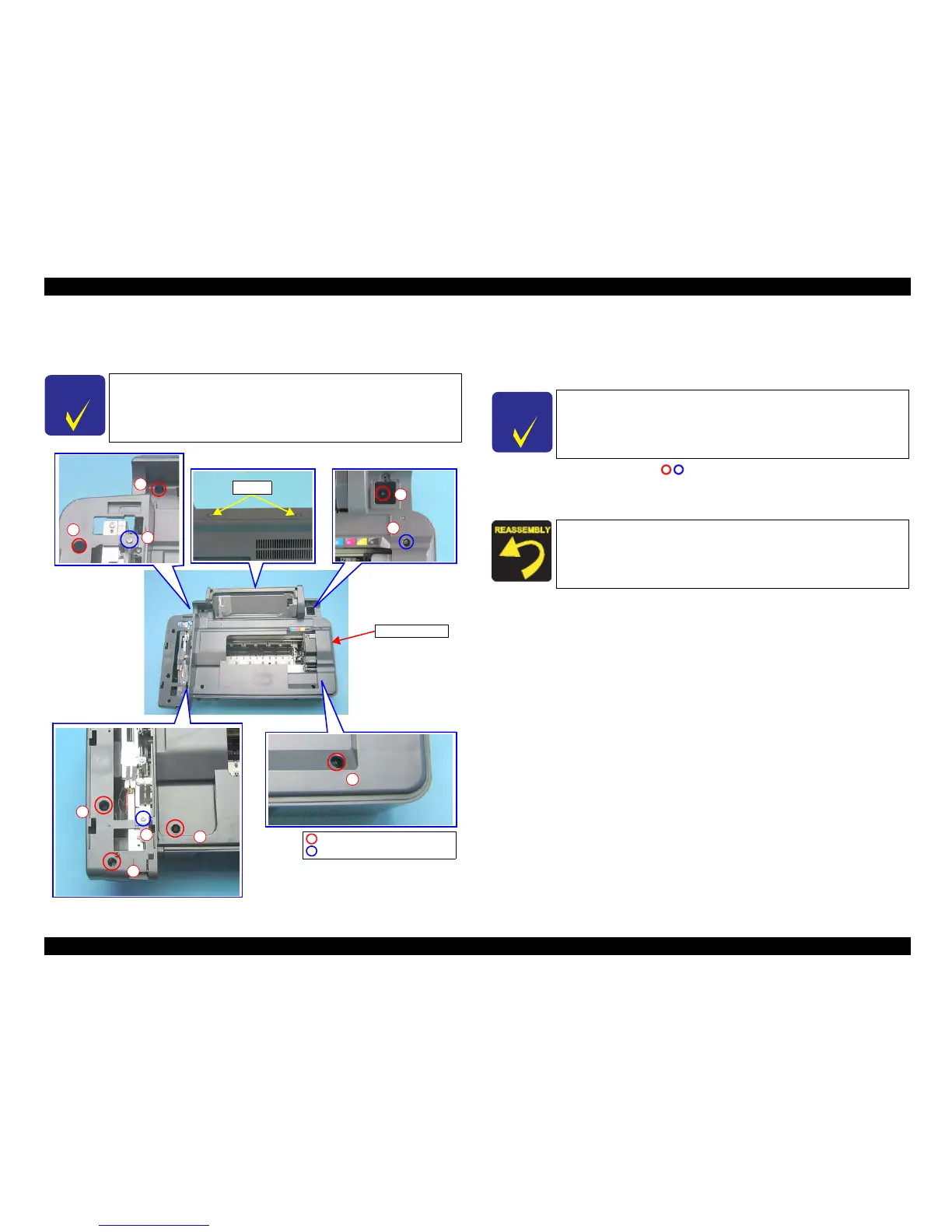

Figure 4-9. Removing Housing, Upper

 Part/Unit

that should be removed before removing Housing, Upper

Document Cover / Panel Unit / Scanner Unit

 Removal procedure

1. Remove the screws (x10, ) that secure the Housing, Upper.

2. Release the tabs (x2) that secure the Housing, Upper with a flathead

screwdriver or a similar tool, and lift up to remove the Housing, Upper.

C H E C K

P O I N T

The removal procedures differ depending on the model.

For Stylus CX4900/CX4905/CX5000/DX5000/DX5050, see "4.6.2

Housing, Upper (p170)".

Tabs

C.B.P. 3x10 F/Zn (4±1kgfcm)

C.B.S. 3x6 F/Zn (7±1kgfcm)

Housing, Upper

C H E C K

P O I N T

Screw number 9 secure the Housing, Upper as well as a grounding

plate.

Tighten the screws in the order as shown in the figure. (T.B.D.)
