DISASSEMBLY/ASSEMBLY Disassembly/reassembly procedures specific to Artisan 710/PX710W/TX710W 187
Confidential
4.3.1.7 Right Housing/Card Cover
 Parts/Components need to be removed in advance:
Scanner Unit/Upper Left Housing/Paper Guide Top Assy/Upper Housing/Hinge/
Rear Right Housing
 Removal procedure
1. Remove the screw (x1) that secures the Right Housing.

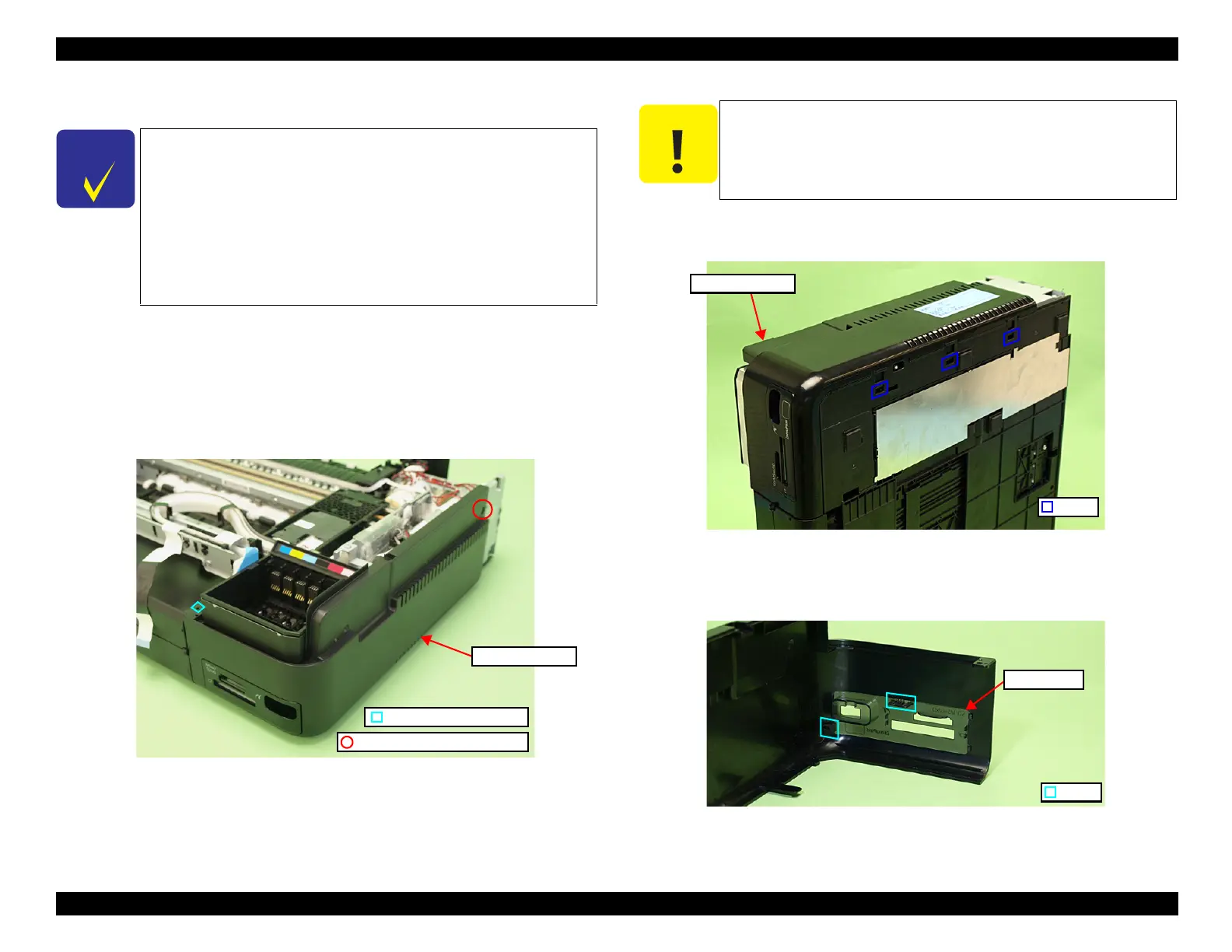

Figure 4-174. Removing the Right Housing/Card Cover (1)
2. Release the dowel (x1) on the front side (see Fig. 4-174) and hooks (x3) on
the bottom of the Right Housing, and remove the Right Housing.
Figure 4-175. Removing the Right Housing/Card Cover (2)
3. Release the hooks (x2) on the back of the Right Housing and remove the Card
Cover.
Figure 4-176. Removing the Right Housing/Card Cover (3)
C H E C K
P O I N T
Because the parts to remove differ between models, see below for
other than Artisan 710/725/PX710W/TX710W/PX720WD/
TX720WD.
 Artisan 810/835/PX810FW/TX810FW/PX820FWD/TX820FWD:
4.2.3.11 Right Housing / Card Cover (p.121)
 Artisan 837/PX830FWD:
9.4.2.7 Right Housing/Housing Front Right (p.300)
 Artisan 730/PX730WD/TX730WD:
9.4.2.21 Right Housing / Housing Front Right (p.315)
C.B.S. 3x6 (black) (8±1Kgfcm)
Positioning hole & dowel
Right Housing
C A U T I O N
When removing the Right Housing, be careful not to let the Card
Cover interfere with the Card Slot Assy or the Card Cover may be
damaged.
Right Housing
Hook
Hook
Card Cover
