Epson Stylus SX435W Service Manual

Confidential
Disassembly/Reassembly Overview 22
Epson Stylus SX230 series / SX235W series / SX430W series / SX440W series Revision B

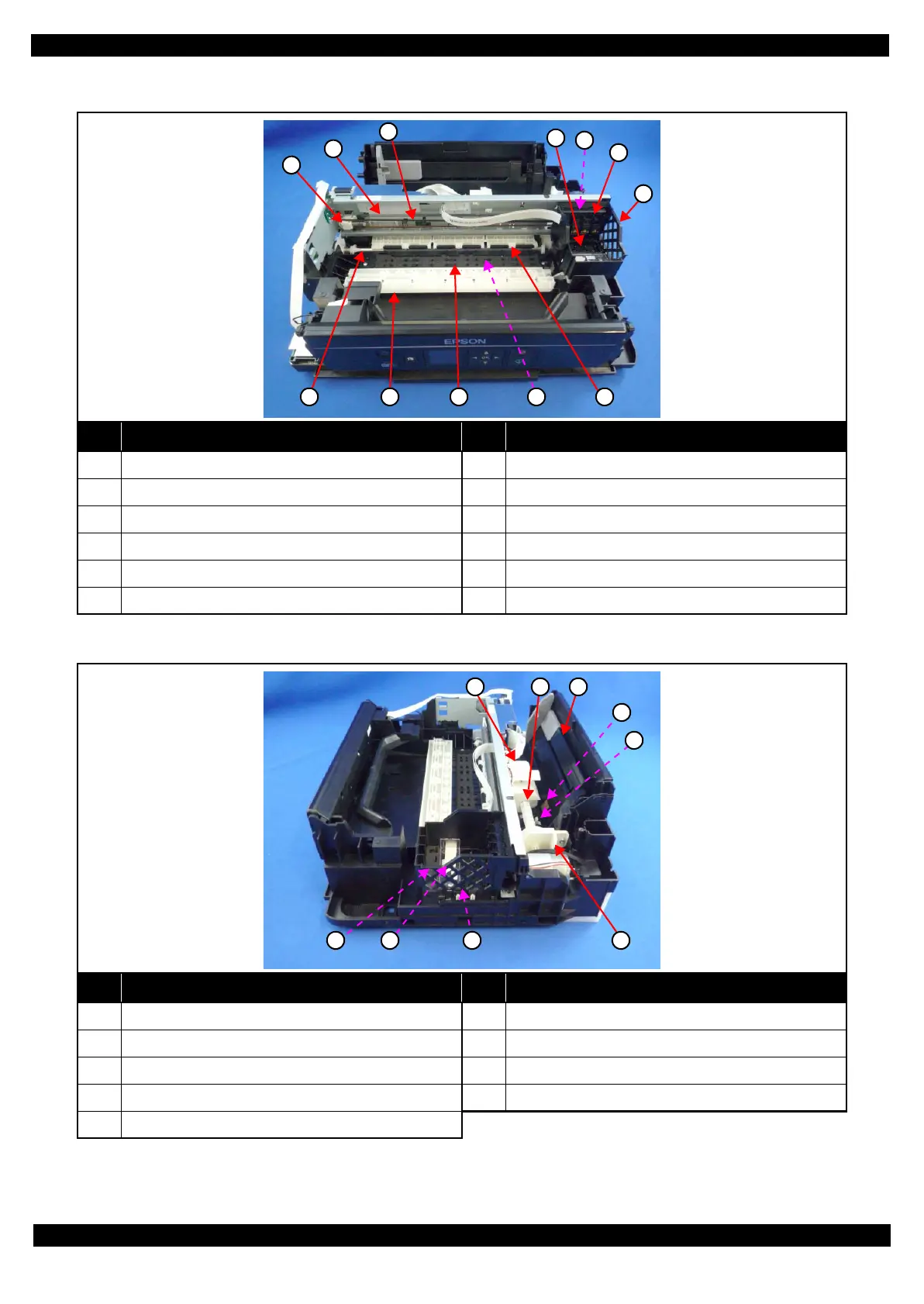

 Printer mechanism
Figure 2-3. Printer Mechanism: Front
Figure 2-4. Printer Mechanism: Right
No. Name No. Name
1 CR Driven Pulley (p28) 7 CR Unit (p30)
2 CR Scale (p28) 8 PF Roller Unit (p30)
3 CR Timing Belt (p30) 9 Star Wheel Holder Assy (p27)
4 Printhead (p27) 10 Paper Guide Front Unit (p27)
5 CR Encoder Sensor (p30) 11 Paper Guide Lower Porous Pad (p27)
6 Holder Board Assy (p27) 12 Paper Guide Upper Assy (p30)
No. Name No. Name
1 LD Roller Cover (p28) 6 Cap Lever (p27)
2 LD Roller Assy (p28) 7 Cap Assy (p27)
3 Hopper (p28) 8 Porous Pad for Cap Assy (p27)
4 Retard Roller Assy (p27) 9 Pump Unit (p30)
5 Paper Back Lever (p27)
1
2
3
5
6
8 9 11 12
7
10
4
6 7 8 9
5
4
321

Epson Stylus SX435W Specifications

General

Print Technology	Inkjet
Connectivity	USB, Wi-Fi
Max Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Max Black Print Speed	33 ppm
Max Color Print Speed	15 ppm
Scan Resolution	1200 x 2400 dpi
Card Reader	Yes
Copy Speed (Black)	33 cpm
Copy Speed (Color)	15 cpm
Paper Capacity	100 sheets
Ink Cartridges	4 (Black, Cyan, Magenta, Yellow)
Dimensions (W x D x H)	390 x 300 x 145 mm
Weight	4.1 kg
Functions	Print, Scan, Copy
Display	LCD
Paper Sizes	A4, A5, A6, B5
