Disassembly/Reassembly Overview 23
Epson Stylus SX230 series / SX235W series / SX430W series / SX440W series Revision B

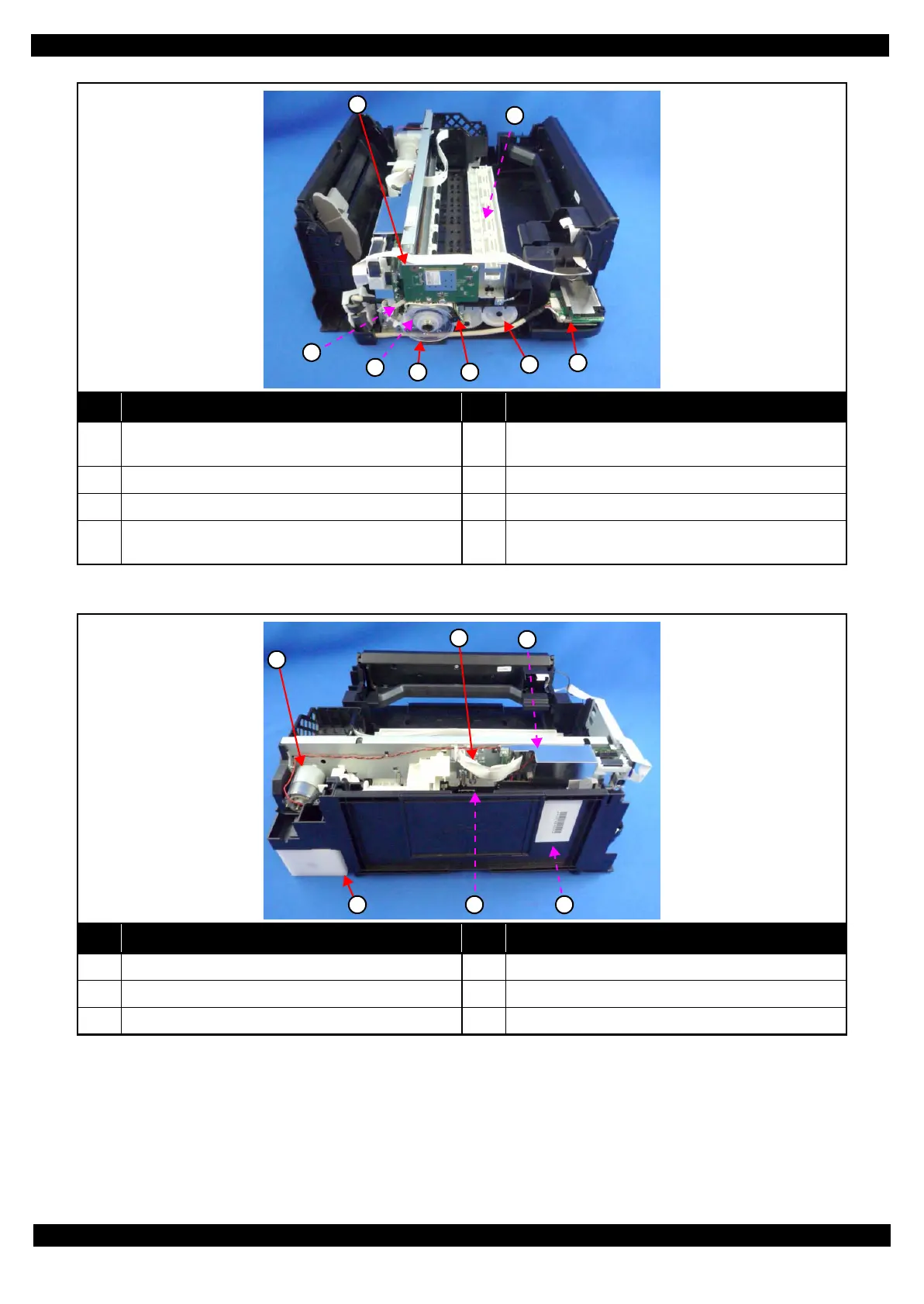

Figure 2-5. Printer Mechanism: Left
Figure 2-6. Printer Mechanism: Rear
No. Name No. Name
1
Wireless LAN Module (p27)
(SX235W series / SX430W series / SX440W series only)
5
PF Scale (p29)
2 EJ Roller (p27) 6 PF Encoder Sensor (p29)
3 PF Motor Assy (p30) 7 EJ Roller Gear (p27)
4
PF Timing Belt (p29)
8
Card Slot Board (p27)
(SX230 series / SX430W series / SX440W series only)
No. Name No. Name
1 CR Motor (p28) 4 Waste Ink Pad Assy (p27)
2 Head FFC (p30) 5 PE Sensor Lever (p28)
3 Main Board (p28) 6 PS Unit (p27)
3
1
2
7
8
4
5 6
1
2
3
4 5 6

Epson Stylus SX435W Specifications

General

Print Technology	Inkjet
Connectivity	USB, Wi-Fi
Max Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Max Black Print Speed	33 ppm
Max Color Print Speed	15 ppm
Scan Resolution	1200 x 2400 dpi
Card Reader	Yes
Copy Speed (Black)	33 cpm
Copy Speed (Color)	15 cpm
Paper Capacity	100 sheets
Ink Cartridges	4 (Black, Cyan, Magenta, Yellow)
Dimensions (W x D x H)	390 x 300 x 145 mm
Weight	4.1 kg
Functions	Print, Scan, Copy
Display	LCD
Paper Sizes	A4, A5, A6, B5
