Epson STYLUS TX109 - 4.5 Disassembling the Printer Mechanism

Epson Stylus NX100/105/SX100/105/TX100/101/102/103/105/106/109/ME 300/ME OFFICE 360/NX110/115/SX110/115/TX110/111/112/113/115/117/119 Revision C
DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 76
Confidential
4.5 Disassembling the Printer Mechanism
4.5.1 Printhead
 Parts/Components need to be removed in advance:
Scanner Stand/Cover Wire (p 68), Scanner Unit (p 70), Middle Housing (p 71)
Panel Unit (p 72)
 Removal procedure

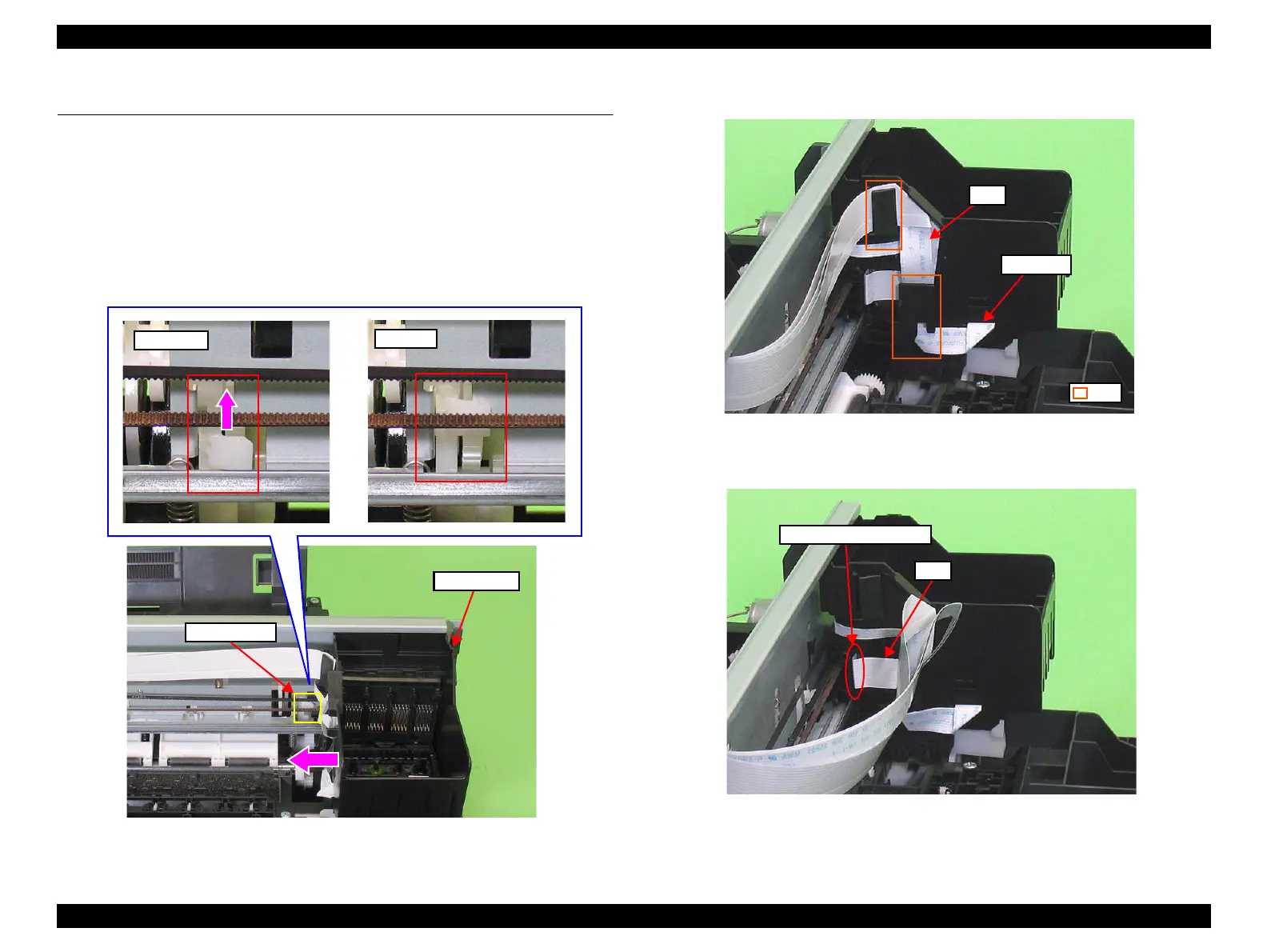

1. Release the Carriage Lock and move the Carriage to the center.
Figure 4-27. Removing the Printhead (1)
2. Release the FFC from the tabs of the Carriage.
Figure 4-28. Removing the Printhead (2)
3. Pull out the FFC from the connector of the CR Contact Module (CN1).
Figure 4-29. Removing the Printhead (3)
Carriage Lock
Carriage Unit
Locked
Unlocked
Tab
FFC
Head FFC
FFC
CR Contact Module (CN1)
