Epson Stylus TX235

Epson Stylus SX230 series / SX235W series / SX430W series / SX440W series Revision B
Confidential
Maintenance Lubrication Points and Instructions 57

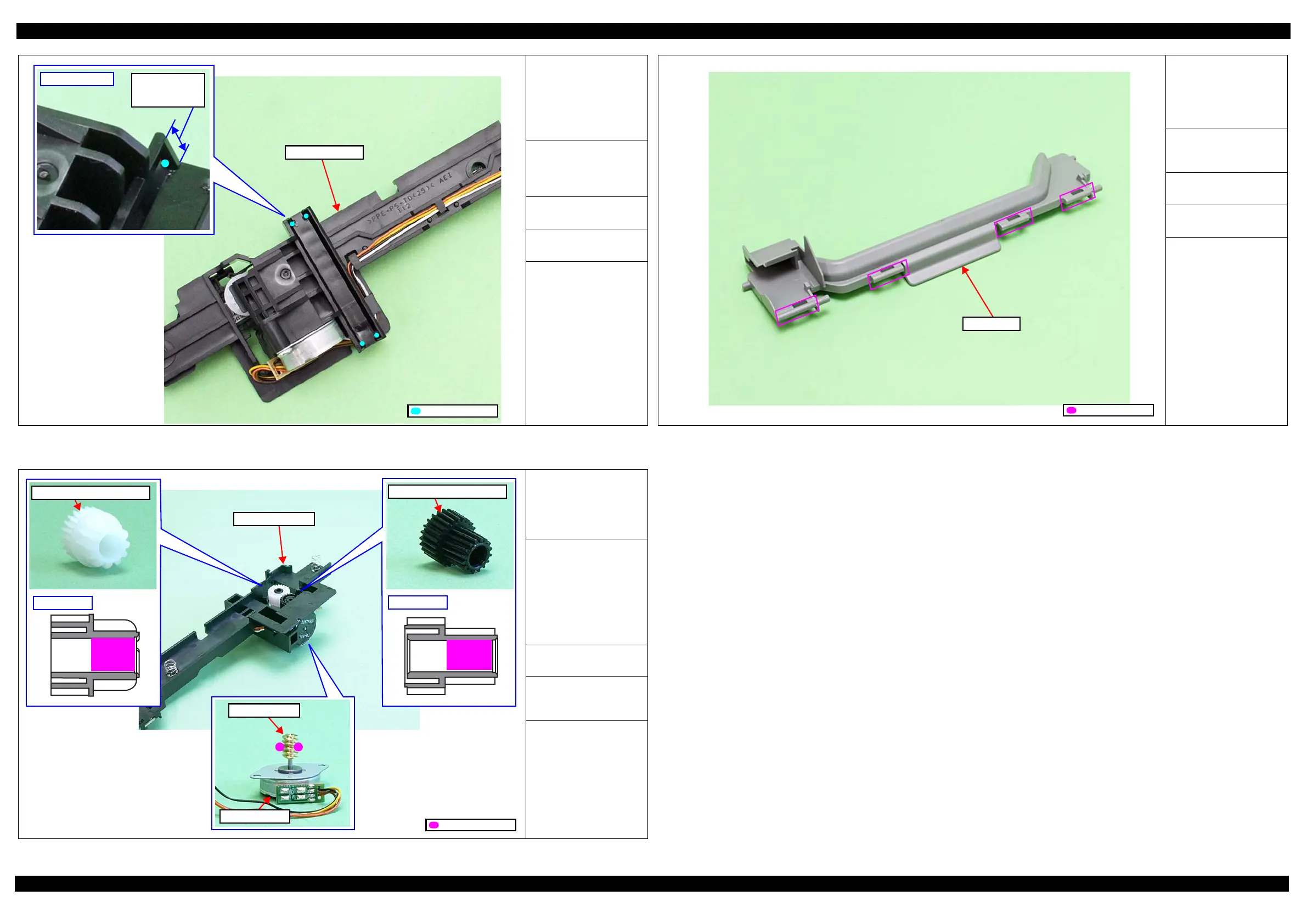

Figure 4-13. Lubrication of the Scanner Carriage (2)
<Part supply as ASP>
Supplied as the Scanner
Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
On inner wall surfaces (x4)
on the groove of the
Scanner Carriage
<Type>
G-45
<Application Amount>
0.01 g x 4 points
<Remarks>
 Using injector, apply
grease on inner wall
surfaces (x4) on the
groove shown in the
enlarged figure.
 Be careful not to let
grease flow over.
Scanner Carriage
Enlarged figure
Apply on the
center of inner
wall (x4 points).
Application Point
Figure 4-14. Lubrication of the Panel Stand
<Part supply as ASP>
Supplied as the Panel Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
Shafts (x4) of the Panel
Stand
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
 Using flux dispenser,
apply all over the shafts
shown in the figure.
 Stir G-74 before use.
Panel Stand
Application Point
Figure 4-15. Lubrication of Scanner Motor, Combination Gear 14.4,10.8 and Combination Gear 13.8,9.66
<Part supply as ASP>
Supplied as the Scanner Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
1. Gear sections (x2) on the
Pinion Gear of the
Scanner Motor
2. Shaft hole of the
Combination Gear 14.4.10.8
3. Shaft hole of the
Combination Gear 13.8.9.66
<Type>
G-45
<Application Amount>
1. 0.01 g x 2 points
2.3. 0.01 g
<Remarks>
1. Apply with injector.
2.3.
After applying with
injector, spread it over
the entire inner surface
the shaft hole shown in
the figure.
 Be careful not to let
grease flow over.
Scanner Motor
Pinion Gear
Scanner Carriage
Cross-section
Cross-section
Combination gear 14.4,10.8
Combination gear 13.8,9.66
Application Point
