Epson TM T88IV Step By Step Guide For Installing

2 | P a g e
Using a CAT-5 network cable (RJ45 connector) through a router or switch this option
requires the purchase of a router or switch and network cable.
Before you begin, make sure your EPSON TM-
T88IV printer is plugged in and properly
connected to your router/switch via network
cable and that the paper roll is properly
seated.

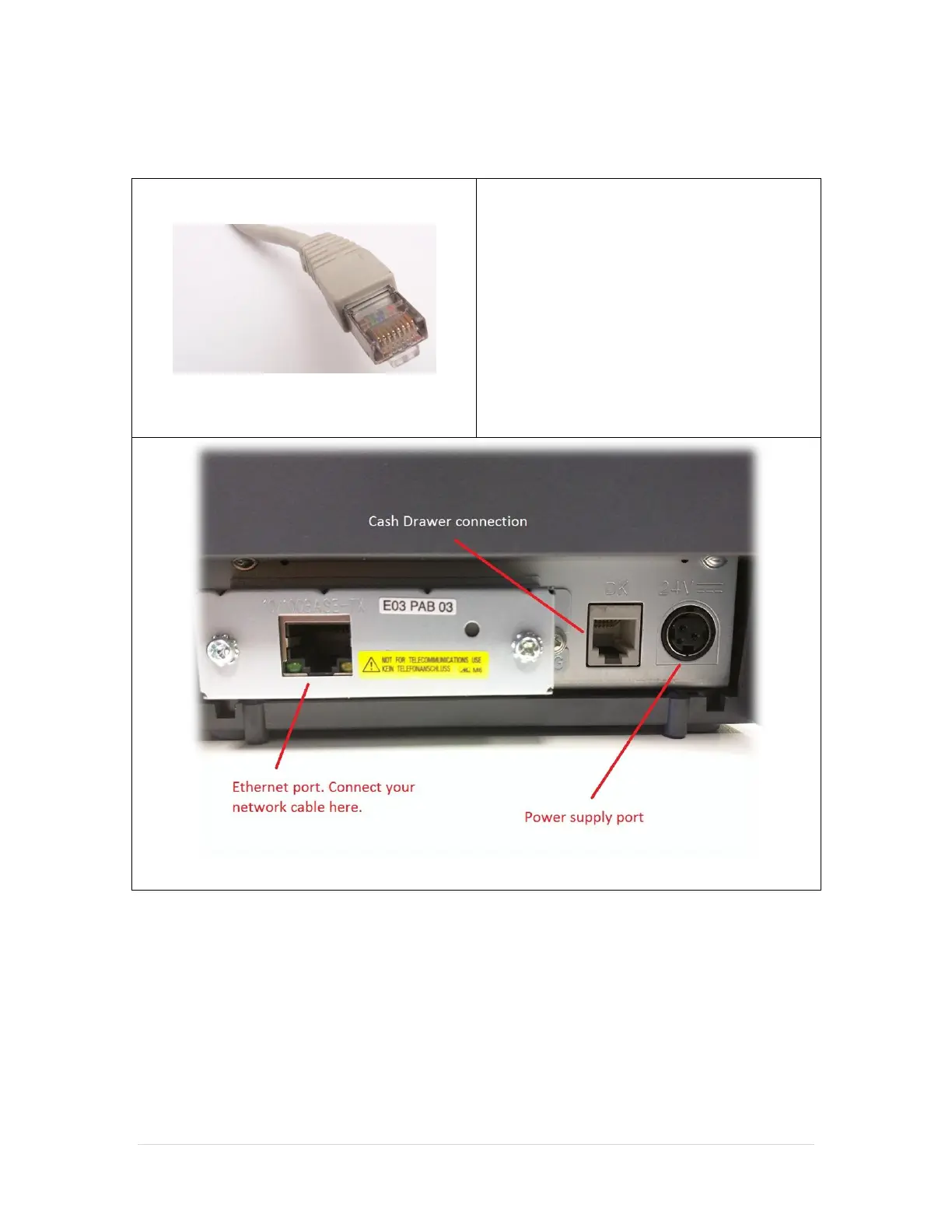

The other end of the cable should be
connected to the corresponding port on the
back of your receipt printer (see image below).

Epson TM T88IV Specifications

General

Dimensions (WxDxH)	145 x 195 x 148 mm
Standard interfaces	Ethernet
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Type	POS printer
Character size	1.1 x 2.1 mm
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Safety	UL/CSA, TUV
Certification	CE, EN55022, EN55024, RoHS, WEEE
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF-14, PDF417, UPC-A, UPC-E
Country of origin	China
Autocutter durability	1.5 million cuts
Mean time between failures (MTBF)	360000 h
Product color	White
Maximum roll diameter	83 mm
Supported paper width	72 mm
Operating temperature (T-T)	5 - 45 °C
Wi-Fi	No
Ethernet LAN	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Power supply type	DC
Pallet width	800 mm
Pallet height	1837 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Pallet height (UK)	2250 mm
Quantity per pallet	128 pc(s)
Quantity per pallet (UK)	192 pc(s)
Master (outer) case width	400 mm
Quantity per pallet layer	16 pc(s)
Master (outer) case height	255 mm
Master (outer) case length	490 mm
Quantity per pallet layer (UK)	24 pc(s)
Quantity per master (outer) case	4 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2780 g
Quantity per pack	1 pc(s)
