Epson UB-E03 User Manual

2

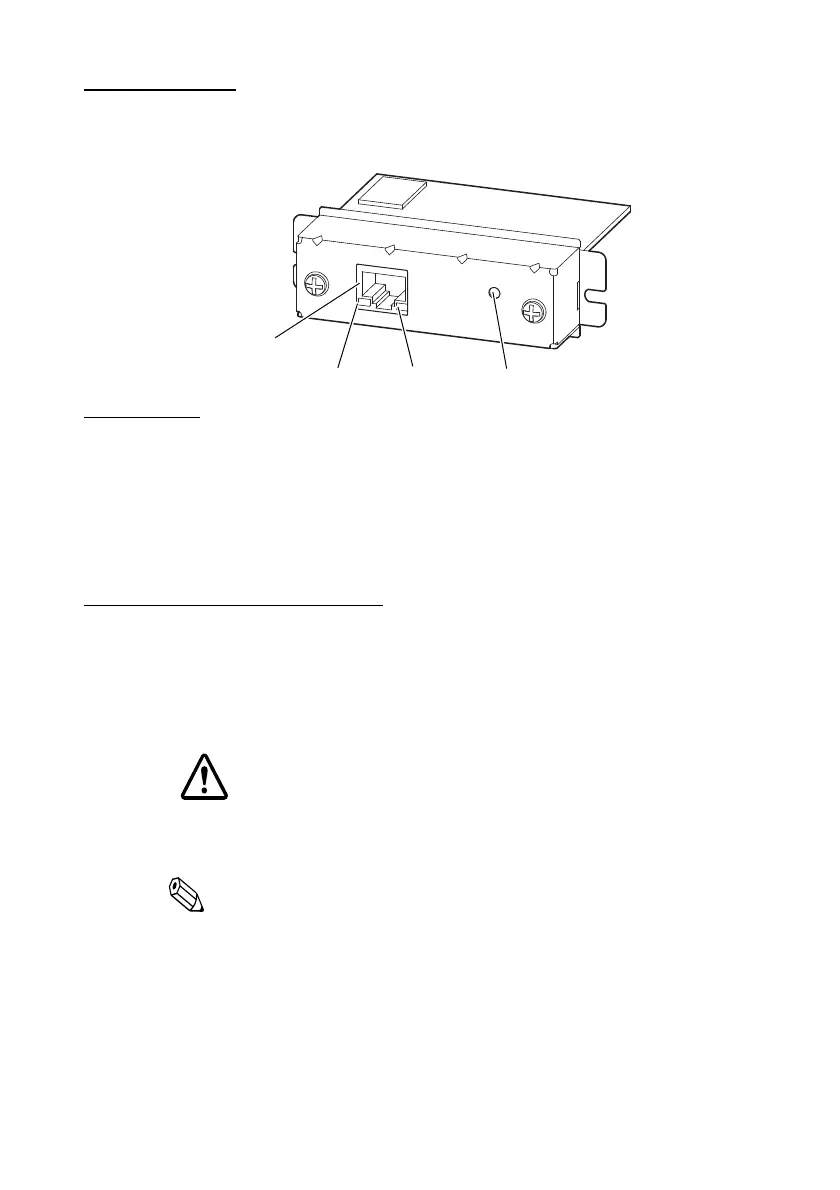

Part Names
The following view shows the part names of the UB-E03.
Switches
When using this interface board, the DIP switches of the TM printer must be
set to “parallel” with the appropriate settings. Set the reset signal for pin 31 to
“enabled” if you are using a TM printer that has this setting. Refer to the
manual for your TM printer for details.
For the TM-T90/L90/J7000/J7100/J7500/J7600 printers, set the reset signal for
pin 25 of the memory switches to “enabled.” For new models, please ask the
dealer where you purchased your product.
Connecting the Cables
1. Make sure both the printer and the host computer are turned off.
2. Plug the 10BASE-T/100BASE-TX cable connector securely into the
UB-E03’s 10BASE-T/100BASE-TX Ethernet connector until you feel it
click.
CAUTION:
Do not connect a telephone line, a display module cable, or a
drawer kick-out cable to the UB-E03’s 10BASE-T/100BASE-TX
Ethernet connector.
Note:
This display module connector on the TM printer cannot be used when the
UB-E03 is installed.
3. Connect the power supply cable to the printer.
10BASE-T/100BASE-TX
Ethernet interface
connector
LED (green) LED (yellow)
Push button
