Manual Operation- Keypad # 3103
Starting Date- Approximately January 2012

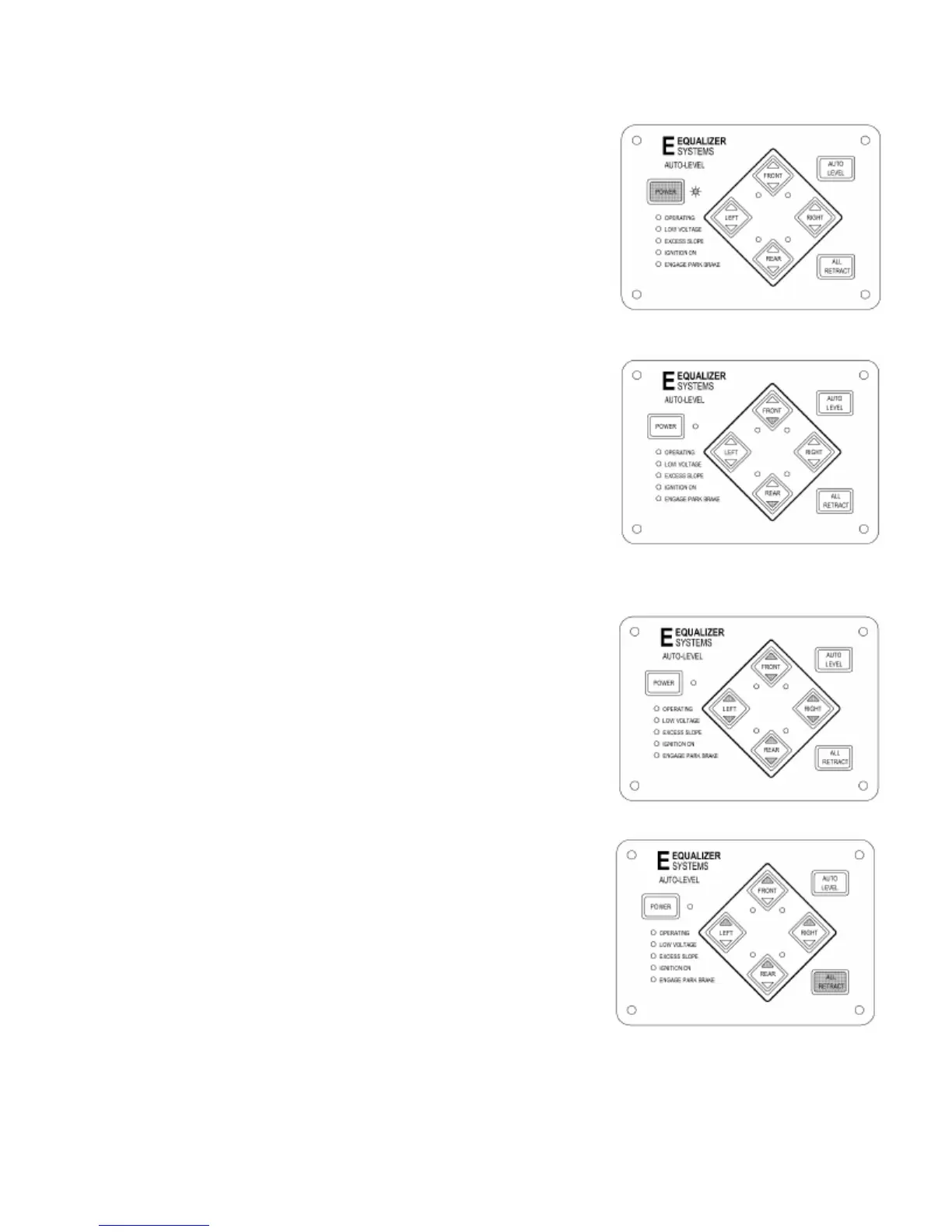

· Power On: Press and release the POWER keypad button to engage power. All LED’s
will come on then most will go out. The LED next to the POWER button should be lit
RED when power is on. If an ignition and/or park brake disable circuit is present, you
will need to have the ignition key and the park brake in the correct position (depending
on wiring scheme chosen) to extend the jacks. If you attempt to extend jacks by
pressing the DOWN▼ keypad buttons or all jacks with the AUTO-LEVEL button, you
will hear a “deny” tone from the keypad if the ignition key and or park brake is in the
improper position.
· Planting the Jacks: The jacks will be extended in pairs Fronts or Rears or Left
or Right Using the DOWN▼ (extend) keypad buttons, extend the jacks until they
contact the ground (this is referred to as “planting” the jacks). As you extend each pair
of jacks the corresponding LED jack status lights will come on to indicate jack(s) are out
of the “stowed” position. Jacks will be operated in pairs. Extend and plant the front jacks
first. Then extend and plant the rear jacks. Only after planting the fronts and then the
rears, should side to side corrections (leveling) be attempted. This process will stabilize
all four corners and minimize twist prior to the leveling process.
Do not manually over extend jacks. This may cause unwanted stress on the
coach or the jacks.
· Leveling the Coach: Use a bubble level on a flat surface in the center of the
coach as a reference. Level the vehicle by using DOWN▼ (extend) or UP▲ (retract)
keypad buttons until the vehicle is level. Front to rear then side to side. Jacks will
be operated in pairs. Do not attempt to lift the vehicle tires off of the ground. Only lift
(extend) enough to level and stabilize the unit. Once level, press and release the
POWER button to turn off the keypad. Note: The keypad may be left on once level
has been achieved. The keypad will enter “sleep mode” after five minutes of inactivity.
· Retracting the Jacks: To retract all jacks simultaneously, press and release
the ALL RETRACT button. All jacks will automatically retract and return to stowed
position. The pump will run in retract mode until all of the jacks are fully stowed
(plus an additional 5 seconds- up to a maximum of 60 or 90 seconds). This is the proper
method for retracting the jacks prior to travel. You may stop the ALL RETRACT by
pressing any button on the keypad. Jacks may be retracted in pairs by using the UP▲
button for each end or side for leveling purposes. However, the ALL RETRACT must be
used to fully stow the jacks prior to travel. The jacks down status LED lights will turn off,
indicating the jacks are in the stowed position.
· Power OFF: Press and release the POWER keypad button.
