2.2 TECHNICAL DESCRIPTION
The stove CUBE has been designed to heat the environment or to improve the room temperature, at the same time that it is
a decorative product. The fire site location has a panoramamic door manufactured in vitroceramic glass and it is resistant to
high temperatures (700 °). Through to this solution we want to offer the view of the flames at the same time as avoiding
sparks and smoke to enter the room. The door of the fire site location is completely seal

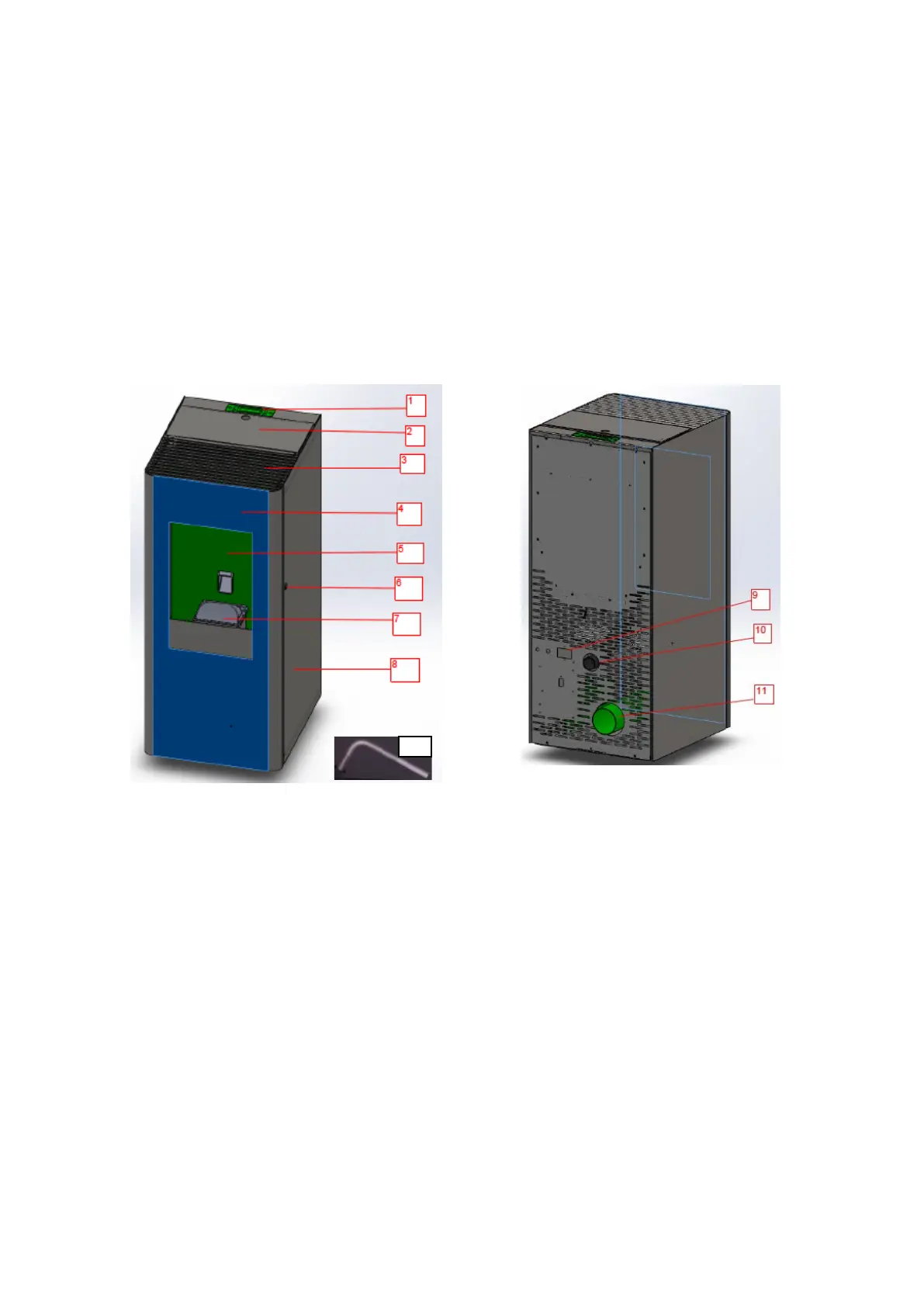

1) CONTROL PANEL WITH SCREEN.
2) PELLET COMPARTMENT.
3) INLET COLD AIR (FROM ROOM ENVIRONMENT.)
4) FIRE SITE DOOR.
5) GLASS.
6) OPENING POINT.
7) PELLET EXIT.
8)
9)
SMOKE EXTRACTION VENTILATOR.
10) AIR INTAKE PIPE FOR THE COMBUSTION.
11)
OUTLET FOR THE SWITCH.
12) OPENING DOOR HANDLE
CERAMIC SIDE COVER.
12
