2.3 TECHNICAL DATA AND DIMENSIONS
DIMENSIONS (cm)
A 55
B 54
C 101,5
D 39,3
E 12,7
F ø4
O 31,1
P 11,3
Q 87,3
R 11
S ø8

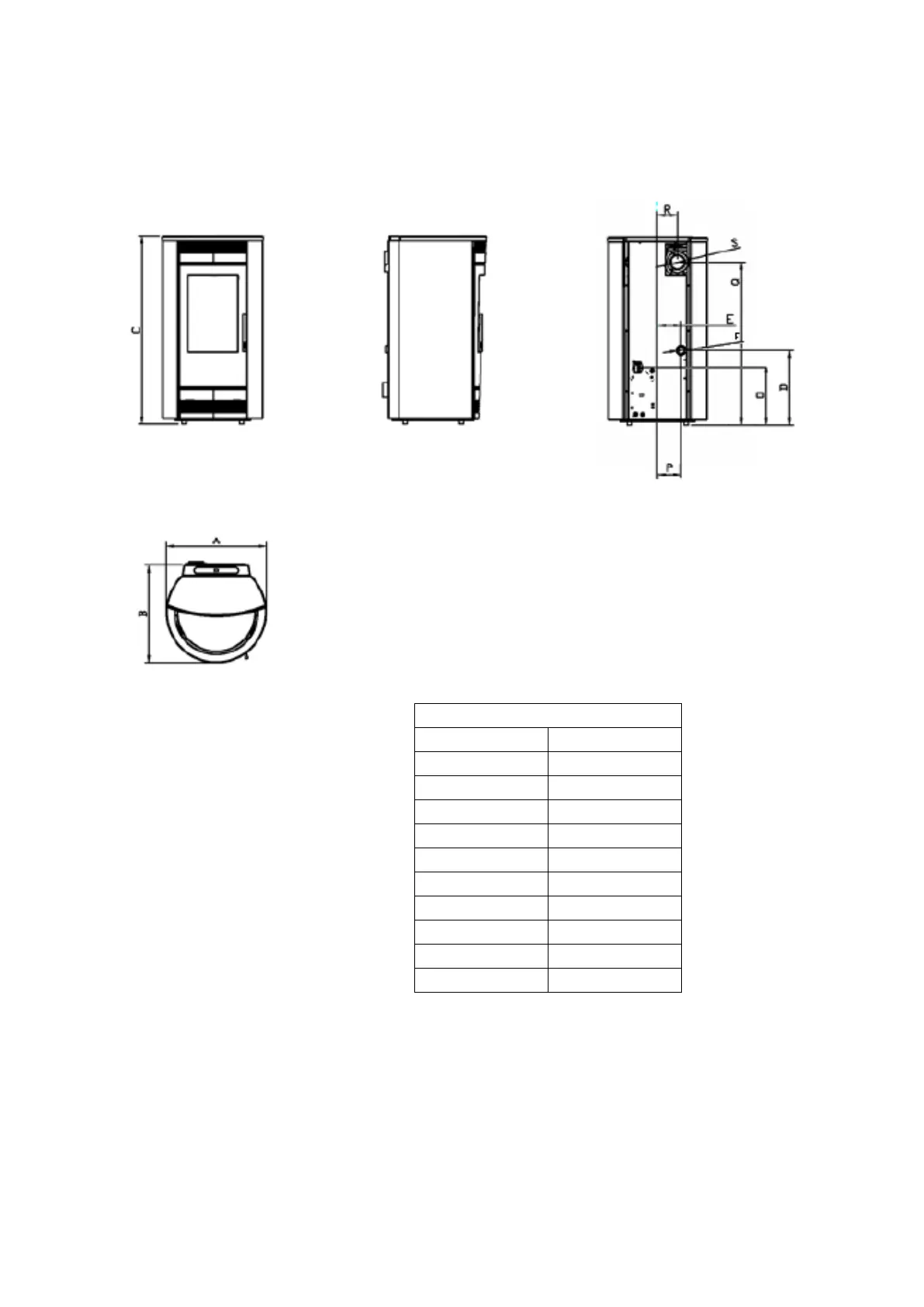

OUTLINE DIMENSIONS
Upper or rear evacuation for a piped and granulated version.
105
