49

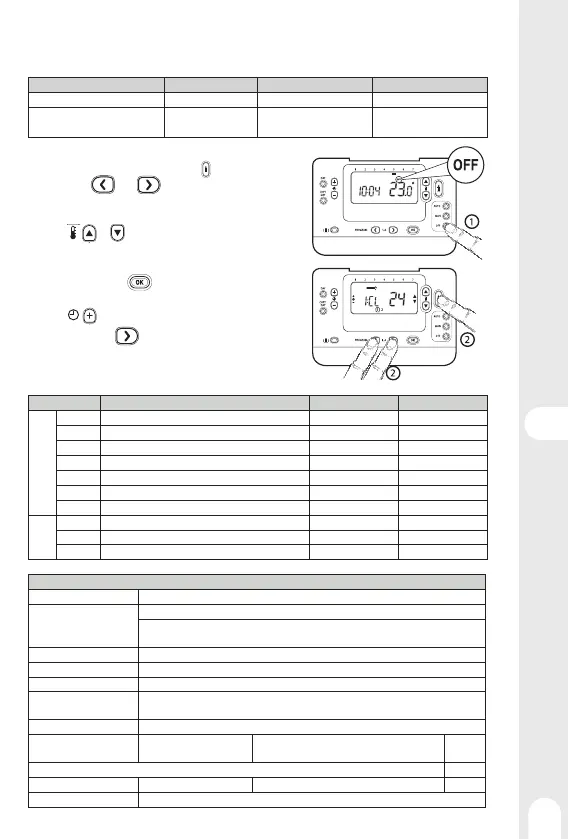

Installer Mode
The thermostat is factory set to control a gas boiler.
Installer Mode allows you to modify these factory settings respecting the below values.
Applications Cycles / hour mini ON time Settings to change
Gas boiler (<30 kW) 6 1 min No change
Oil boiler - Heat pump
Pellet stove
3 4 min
Parameter 1:Ot on 4
Parameter 2:Cr on 3
1 - Press the OFF Key.
2 - Maintain pressure simultaneously on
and
PROGRAM
and .The screen then displays the
fi rst parameter of level 1 of the installer parameters (from
parameter 1 to parameter 19).
3 - Press
or to change the factory setting. The
display is fl ashing to indicate that this change has been
taken into account.
4 - Press the green key
to confi rm the change. The display
stops fl ashing.
5 - Press to go to the next parameter.
6 - Press PROGRAM
. to go to level 2 of the installer
parameters (parameter 1 to parameter 5).
7 - Press AUTO, MAN or OFF to exit installer mode.
Parameter Description Values range Default value
Level 1
1:CL AM-PM / 24hr Display 12, 24 h 24h
2:rP Reset Time/ Temp Programs 0, 1 1
6:UL Upper temperature limit 21 ... 35°C 35°C
7:LL Lower temperature limit 5 ... 21°C 5°C
12:tO Temperature o set -3 ... +3°C 0
13:Pb Proportional Band Width 1.5 ... 3°C 1.5°C
19:FS Reset Parameters to Factory Defaults 0, 1 1
Level 2
1:Ot Minimum boiler ON time 1 ... 5 min 1min
2:Cr Cycle Rate 3, 6, 9, 12 6
5:PE Pump Exercise 0,1 0
Technical data
Type of Control Independently mounted control for Surface mounting
Electrical protection
IP30 No protection against water ingress
CLASS II Product that does not incorporate protective earthing provision,
but a double insulation as provision against electric shock
Type of Batteries 2 batteries AA (LR06 ) 1,5 V (not supplied)
Temperature range 5-35°C
Action Micro-interrupt, Type 1 .C
Rated current
Rated voltage : 24-230V~, 50-60Hz - Max rated current for Resistive load : 5A
Max rated current for Inductive load : 2A
Environment Pollution degree = 2 (standard household conditions without conductive dust)
Regulation class
(according 811/2013)
Class IV Rated impulse voltage 2500 V
Energy e ciency gain (contribution to seasonal space heating energy e ciency) 2%
Class of Software Class A
Overvoltage Category according IEC/EN 60730-1 II
Supplier ADEO Services - 135 Rue Sadi Carnot, CS 00001, 59790 - RONCHIN - FRANCE
