4) Cold water valve (10820)
Replacement Procedure:
▪ Unplug the unit.
▪ Remove the top panel (Two screws behind and slide back)
▪ Unfix the two screws at the back which hold the cold water valve.(Marked C)
▪ Remove the clamps to the two hoses.
▪ Replace with the new valve and do the wiring as before / below.
▪ Fix all the parts back by following the reverse procedure.

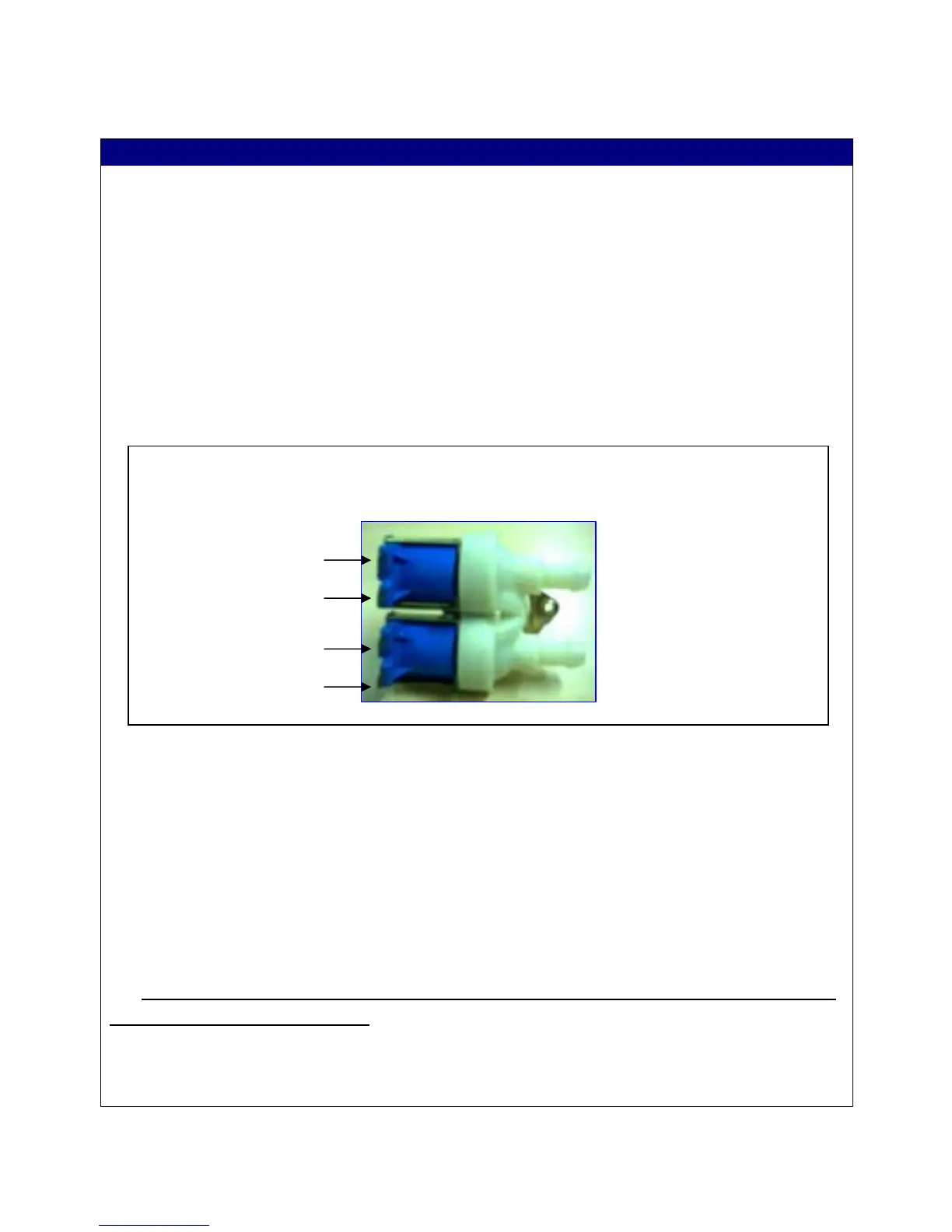

Wiring: Cold water Valve
Testing Procedure:
▪ Hot Test:
1) Set the washer knob to the Towels / Sheets position and switch on the unit.
2) You should get 115V AC across the terminals EVFX & EVF and the unit should start
filling in with water, it the unit does not start filling the valve is bad.
3) Set the washer knob to the off position and the dryer knob to 60 and switch on the unit.
4) You should get 115V AC across the terminals EVA & EVAX.
e
Please Note: The door should be locked properly and there should be enough
pressure to the water supply.
EVAX
EVA
EVFX
EVF
