10) Fusible Link / Wire with fuse (00807)
Replacement Procedure:
▪ Unplug the unit.
▪ Remove the top panel (Two screws behind and slide back)

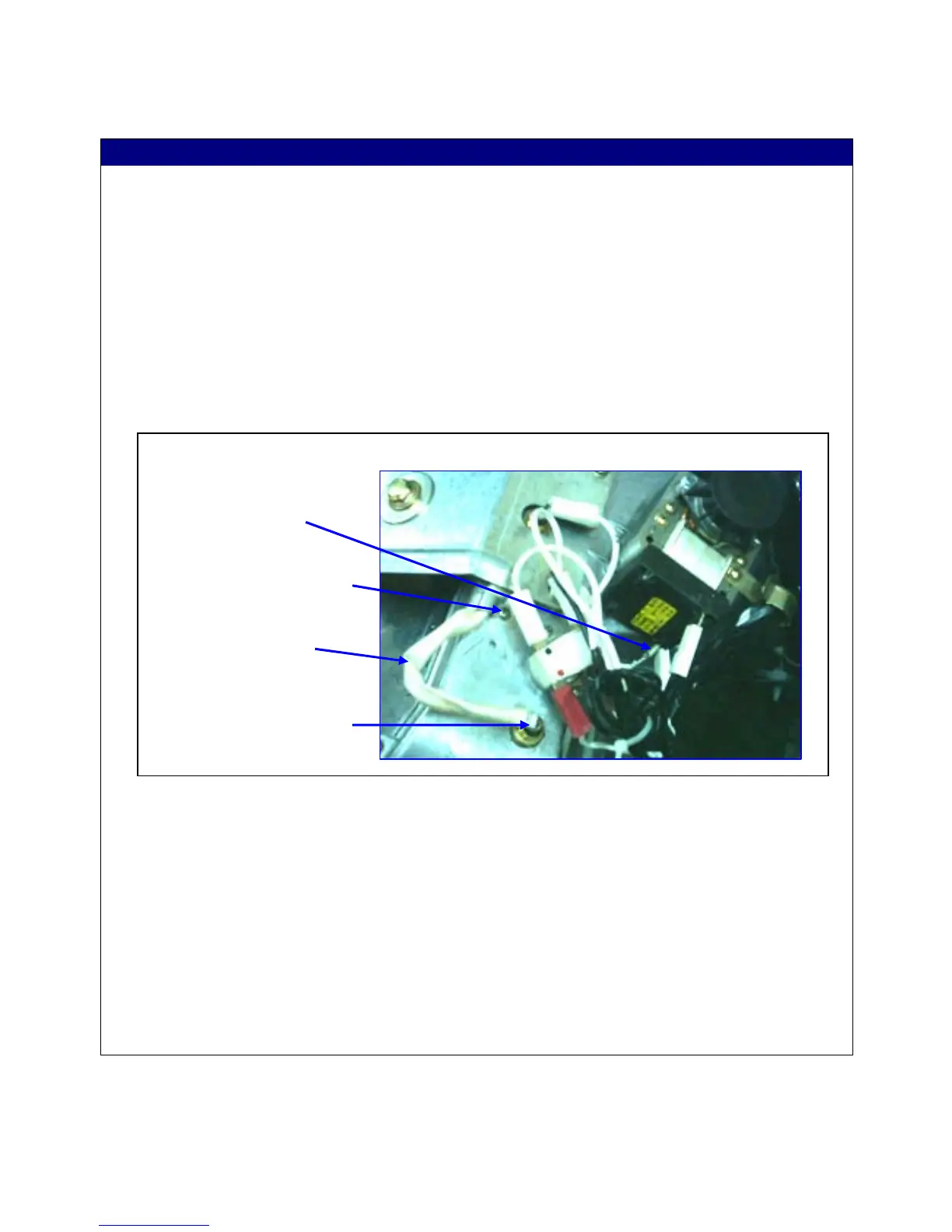

▪ The fusible link is located on the heater housing as shown in the figure.
▪ There is a small fuse inside the covering held by the clamp crewed on the housing.
▪ Unfix the screw and replace the same and do the wiring as before / below.
▪ Fix all the parts back by following the reverse procedure.
Wiring: Fusible Link
Testing Procedure:
▪ Cold Test:
1) Check the continuity between the two terminals of the fusible link, if there is continuity
the fusible link is good.
Fusible link
Remove blower fan
connector
Remove clamp screw
with Philip Screw driver
Remove heater connector
To Next Page
