Fig 18
Fig 19
Fig 20
Fig 21
Note: Remove all adjustment and assembly tools
before starting the machine.

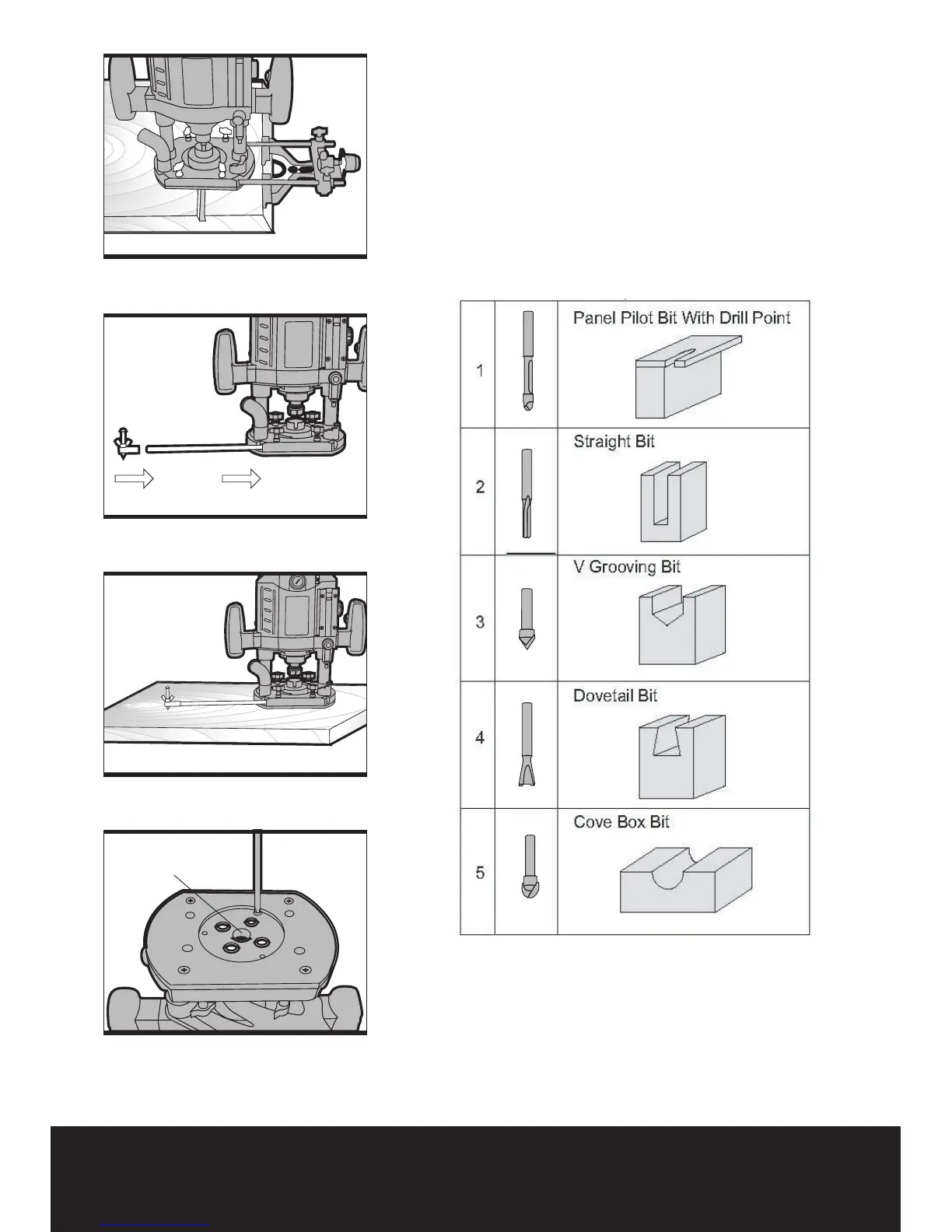

14.ROUTER BITS
Before proceeding carry out test cut on waste
timber.Only use cutter bits with a shank that
matches the collet used.
HSS (High Speed Steel) - for softwood use.
TCT (Tungsten Carbide Tipped) - for use on
hardwood, chipboard, plastics or aluminium.
The most commonly used bits are listed below.
WORKING HINTS FOR YOUR DRILL
1 Using without a guide
This is useful for signwriting and creative work.
User only shallow cuts.
Note: the collar on the
guide bush should be
upward
