24
ERBAUER 216MM (8”) SLIDING MITRE SAW
8. Compound cut
A compound cut is the combination of a mitre
and a bevel cut simultaneously.
1) Loosen the bevel lock handle (1) and
position the cutting head at the desired bevel
position. Lock the bevel lock handle.
2) Loosen the mitre handle (2). Press down
the positive stop locking lever (3) and position
the table at the desired angle. Release the
positive stop locking lever and lock the mitre
handle
(See fi g. 34) .
9. Slide cutting wide boards up to
305 mm wide
Warning:
To avoid injury:
● Never pull the cutting head assembly and
spinning blade toward you during the cut. The
blade may try to climb up on the top of the
workpiece, causing the cutting assembly and
spinning blade to kick back, forcefully. The
cutting head assembly should be drawn back
completely then pushed forward when sawing.
● Let the blade reach full speed before cutting.
This will help reduce the risk of a thrown
workpiece.
To slide cut wide boards
1) Unlock the carriage lock handle (1) and
allow the cutting head assembly to move freely.
2) Set both the desired bevel angle and/or the
mitre angle and lock into position.
3) Use a hold down clamp to secure the
workpiece.
4) Grasp the switch handle (2) and pull the
carriage (3) forward until the centre of the saw
blade is over the front of the workpiece (4).
5) Engage the trigger to turn the saw on.
6) When the saw reaches full speed, push the
switch handle down, slowly, cutting through
the leading edge of the workpiece.
7) Slowly move the switch handle toward the
fence, completing the cut.
8) Release the trigger and allow the blade to
stop spinning before allowing the cutting head
to raise
(See fi g. 35) .

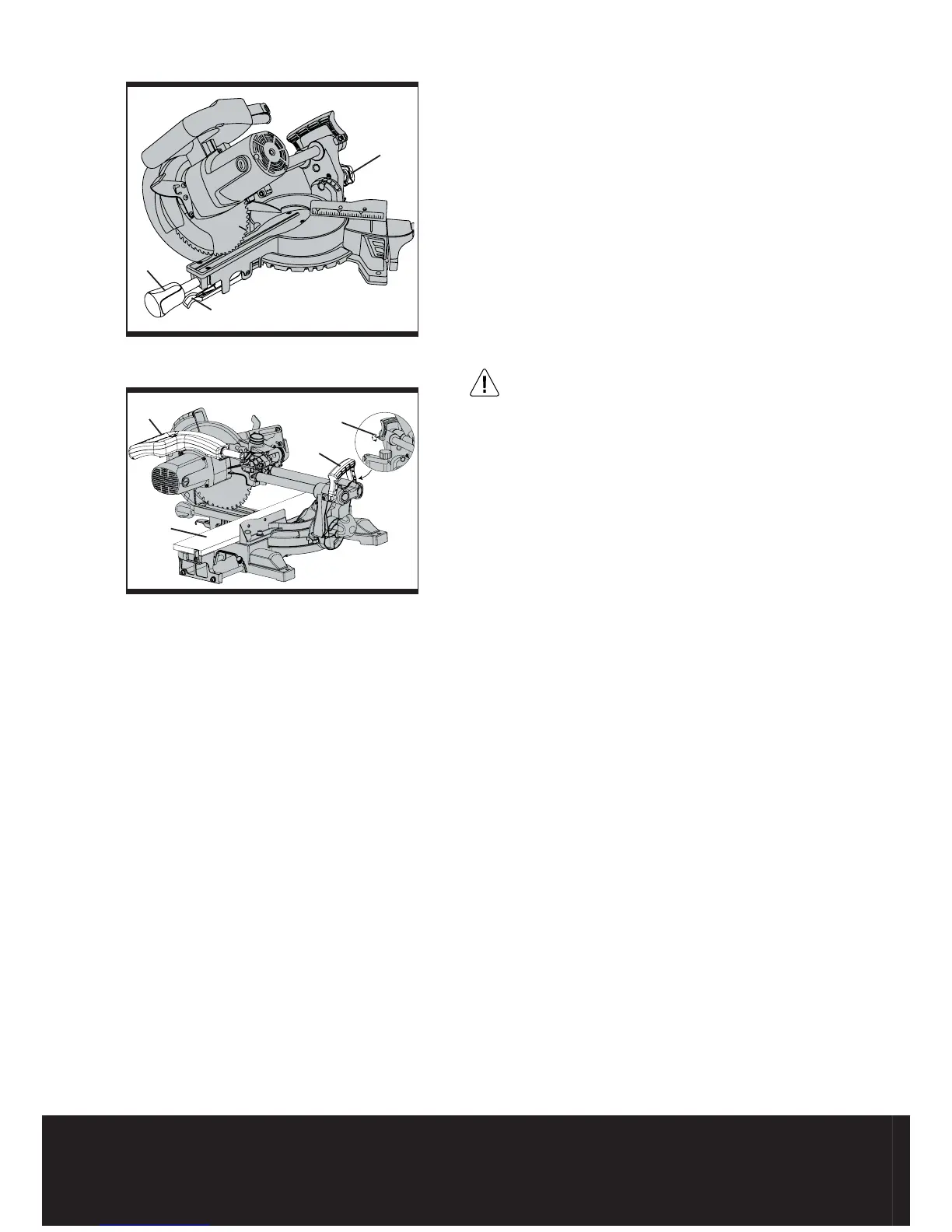

Fig 34
Fig 35
1
2
3
4
1
2
3
