1 DETAILED DESCRIPTION
1.1 SMALL FORM FACTOR / INTEGRATION
The Stage Racer 2 is a 1RU rack solution ideally designed for space restricted installations. Chassis depth is
330mm excluding connectors.
The Stage Racer 2 benefit from a very well-studied thermal conception and can operate from -20°C to +60°C.
The internal fans speed is automatically adjusted depending on the internal motherboard temperature. At room
temperature, the fans run at minimal speed allowing the Stage Racer 2 to be used in a quiet environment.
For field application a 4 to 5 RU fly case integration offers sufficient room for properly expending all the
connections on panel BNC and XLR sockets.

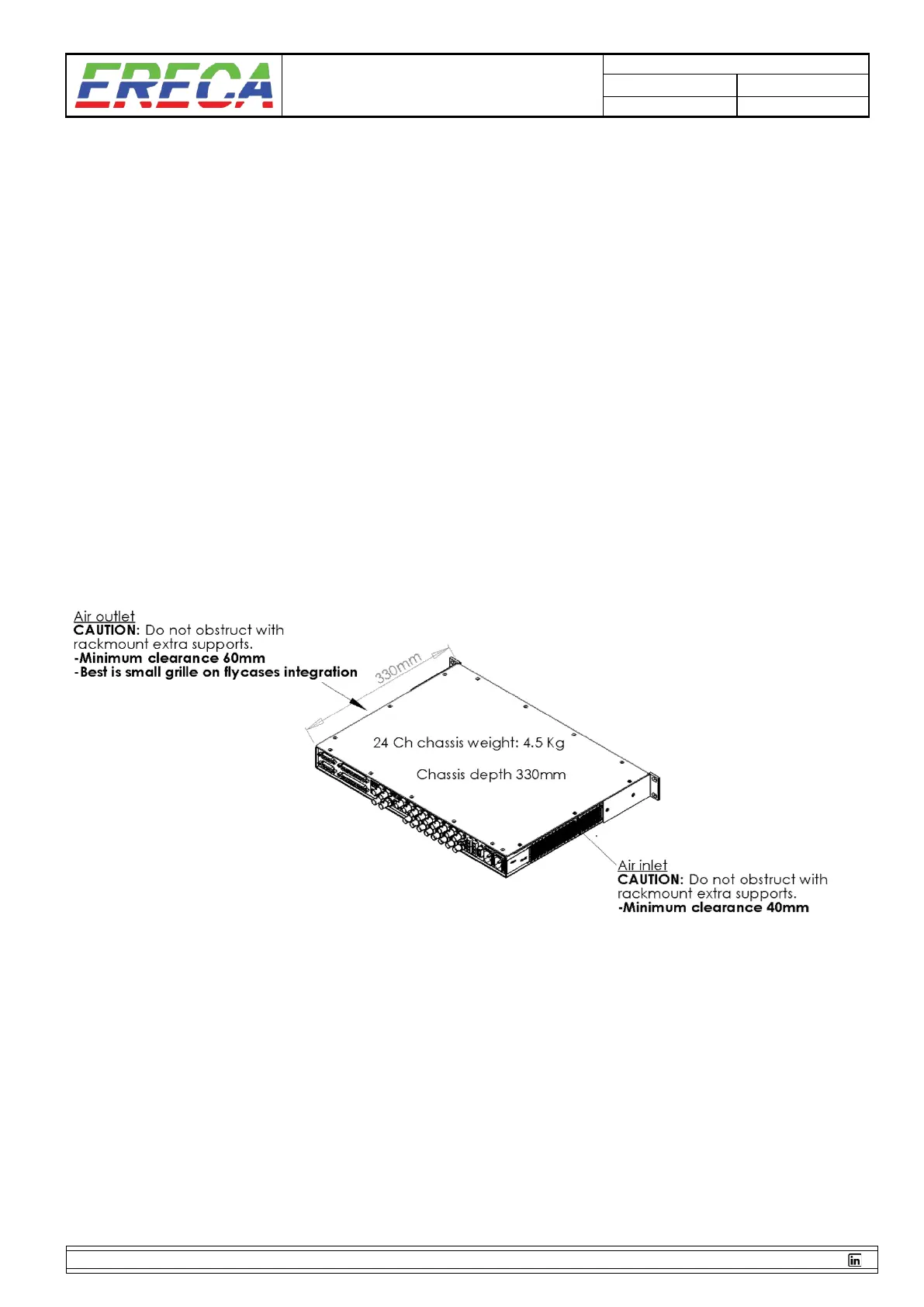

Care should be taken regarding heat accumulation when proceeding to a flight case or any closed container
integration. It is important to understand the airflow of the unit and not to obstruct the air inlet and outlet located
on the side of the unit (see drawing below).
If space is limited, it is more important to allow more space for the air outlet using a small grille located in
regard of the stage racer exhaust grille.
Alternatively, a forced air cooling of the flight case would be sufficient as well.
