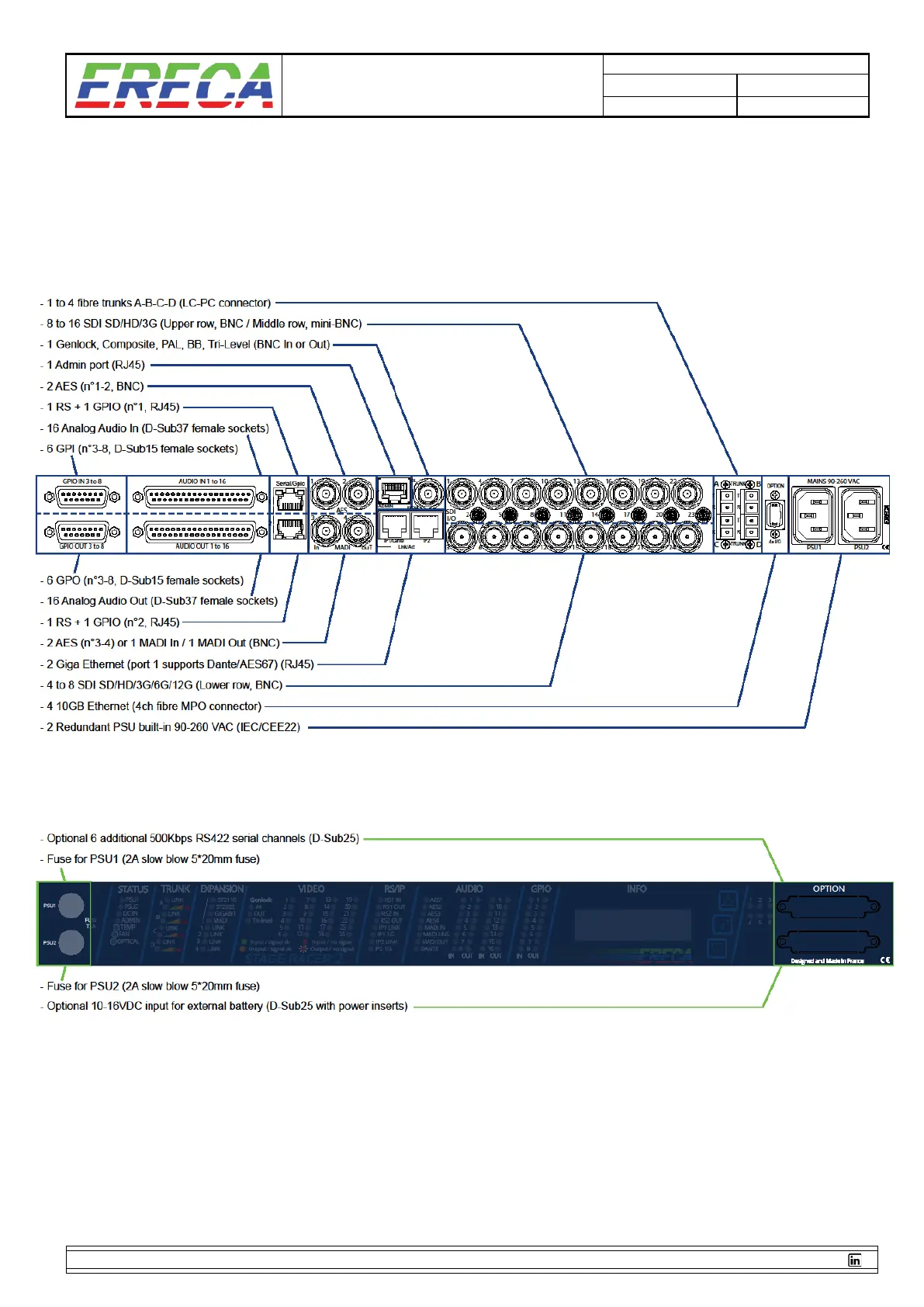

1.2 CONNECTORS LOCATION
The Stage Racer 2 provides signals, optical and power connectors on the rear panel. Optional Serial
connectors and optional DC power are fitted on the visualization panel.
• Rear connectors
• Front connectors (For Serial and DC Power options)
