• Never leave the machine unattended with the power supply "on". Also
disconnect the power cable when not in use, when carrying out maintenance
work, when changing attachment or moving the machine.
4. SET UP FOR OPERATION
Bolt the support leg to the log splitter, lift the log splitter by the handles at both
ends and place it on a 60 – 75 cm high, stable, flat and level work surface.

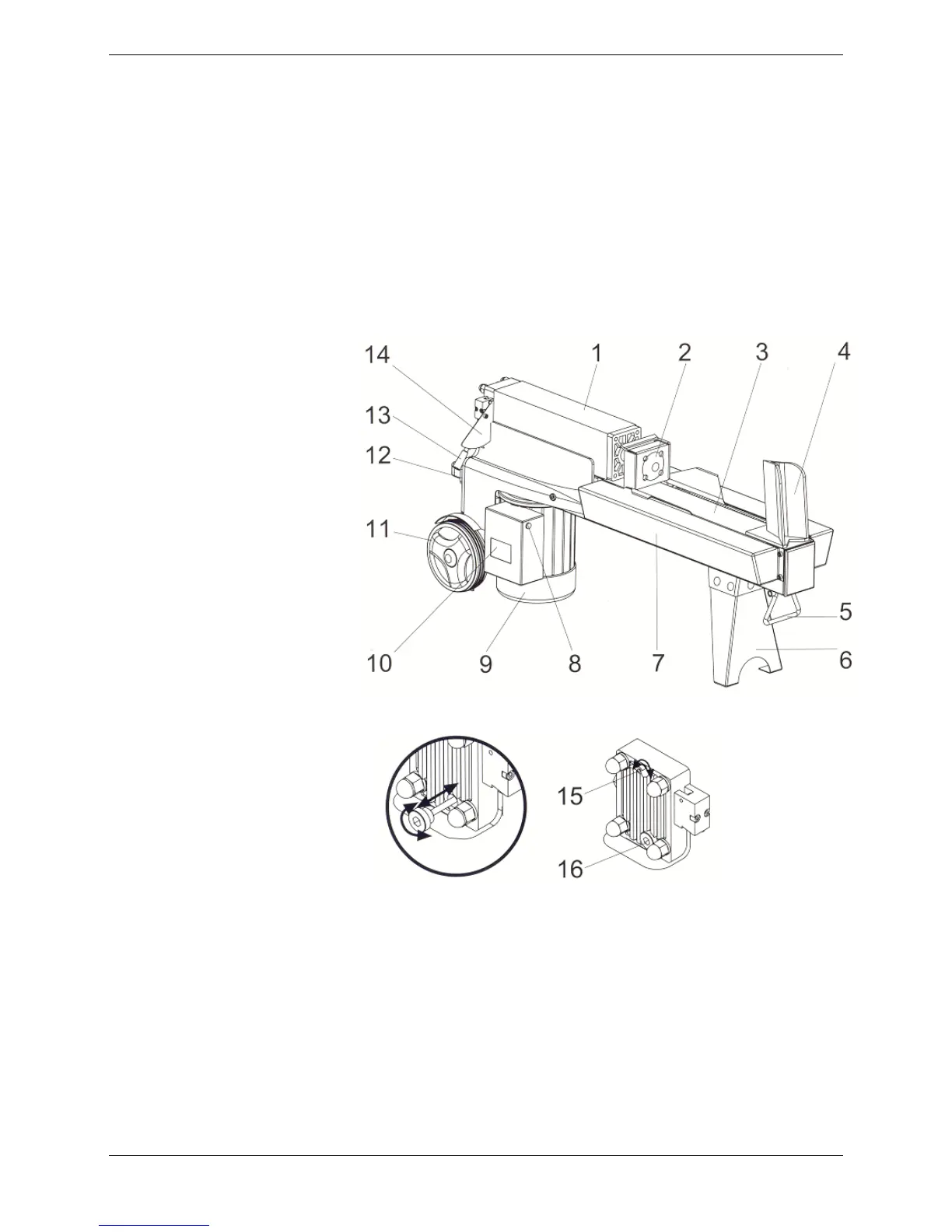

Familiarize yourself with the controls and features of this log splitter.
1. Oil tank
2. Log pusher
3. Work table
4. Wedge
5. Lift handle
6. Support leg
7. Work table extension/
retaining plates
8. Switch
9. Motor
10. Pushbutton box
11. Wheels for minor
moving only
12. Lift handle
13. Hydraulic control lever
14. Control lever guard
15. Bleed screw
16. Oil drain bolt with
dipstick
