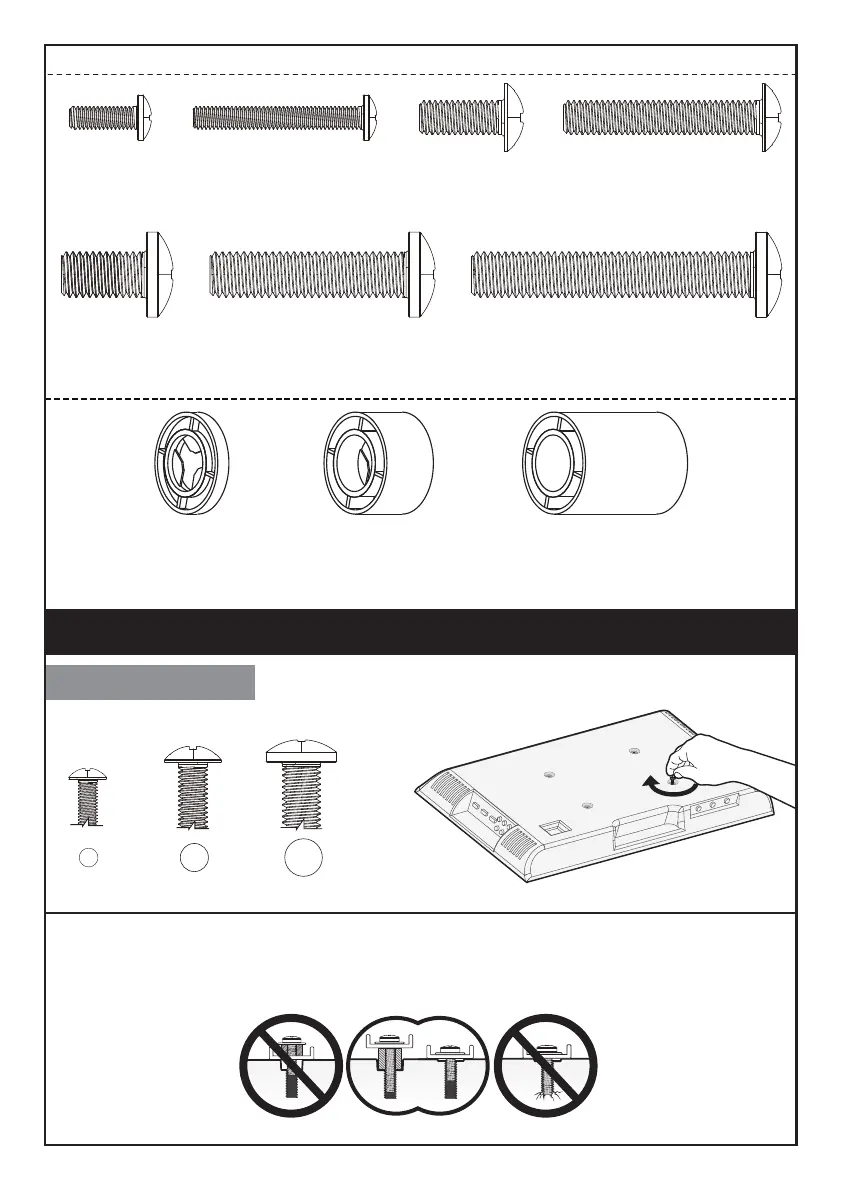

Step 1 Secure the TV Brackets [N] to TV
Select TV Bolts
Only one bolt size fits your TV.
(C1) x4
M4x12mm
Bolt
(C2) x4
M4x30mm
Bolt
(D1) x4
M6x15mm
Bolt
(D2) x4
M6x35mm
Bolt
(E1) x4
M8x15mm
Bolt
(E3) x4
M8x50mm
Bolt
Bolts and spacers are shown in actual size.
(F1) x8
L2.5mm
Spacer
(F2) x4
L10mm
Spacer
(F3) x4
L22mm
Spacer
(E2) x4
M8x35mm
Bolt
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
OR
OR
Too Short Correct Too Long
M6 M8M4
04
