Distance from the hooks on the TV
Brackets to the bottom of the TV
Recommended TV Mounting
Plate Location
20 1/8" to 23 1/2"
16 3/4" to 20 1/8"
Less Than 16 3/4"
Location #1
Location #2
Location #3
Note: Before attaching the TV Mounting
Plate to the pillar, measure the distance
from the upper hook on the TV Bracket
to the bottom of the TV. Then refer to
chart below for the recommended
mounting location. To add an additional
“2” of space between your TV and the
base, use the lower hooks located on
the TV Brackets. We always recommend
using the lowest possible attachment
location for the safest assembly.
(M) x1
TV Plate
(X) x2
Safety Strap

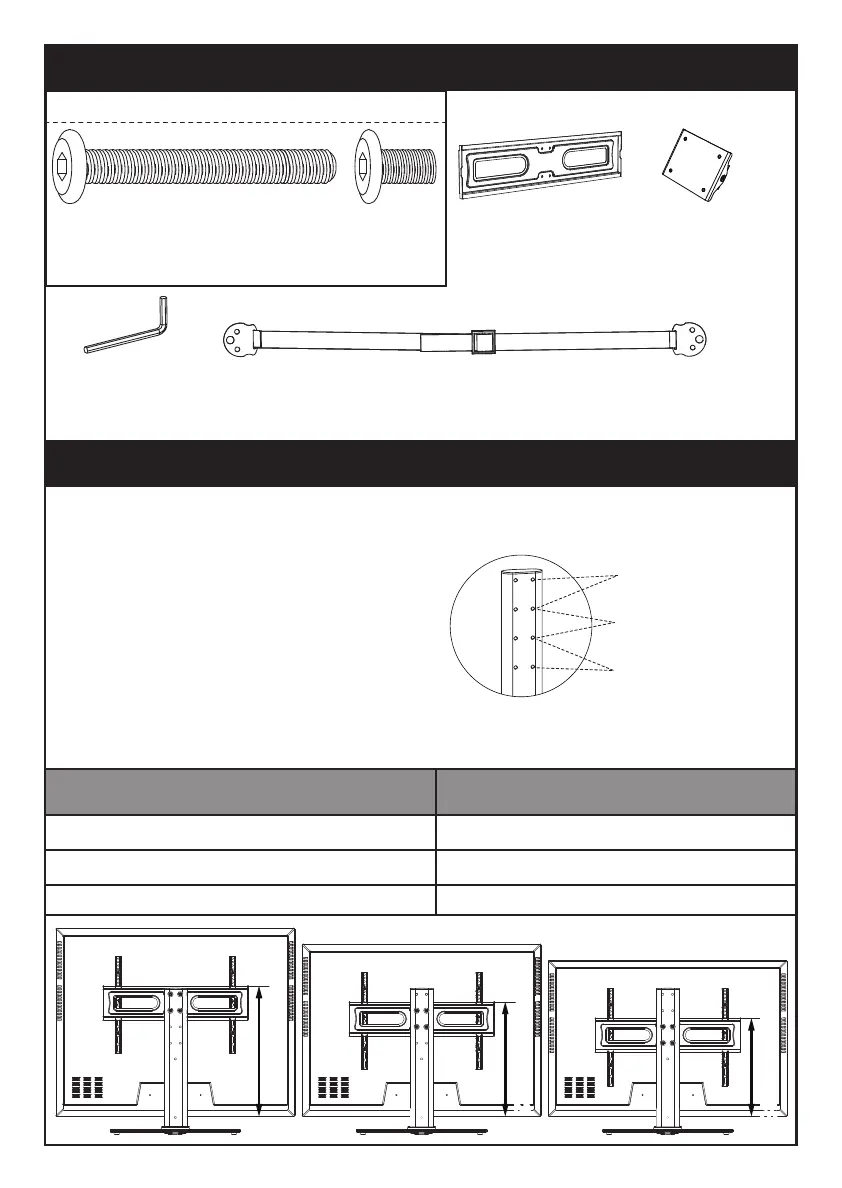

Supplied Parts and Hardware for Step 3
(V) x1
5/32 in (4mm)
Allen Key
(S) x4
M6x50mm
Bolt
This bolt is shown in actual size.
Step 3 Connect the TV Plate [M] to Support Pillar [P]
Mounting Location #1
Mounting Location #2
Mounting Location #3
(T) x4
M6x8mm
Bolt
(A) x1
Swivel Component
Location #1Location #1
Location #2Location #2
Location #3Location #3
09
