ErgoAV ERTSL2-01B - Step 2: Assembling the Base; Connecting Support Pillar to Glass Base; Attaching Foot Pads to Glass Base

Step 2-1
(W) x6
Foot Pad
(R) x1
Reinforcement
Plate
(Y) x1
Trim Ring
Supplied Parts and Hardware for Step 2
This bolt is shown in
actual size.
(L) x3
M6x25mm
Bolt
(P) x1
Support Pillar
(O) x1
Tempered
Glass Base
(V) x1
5/32 in (4mm)
Allen Key

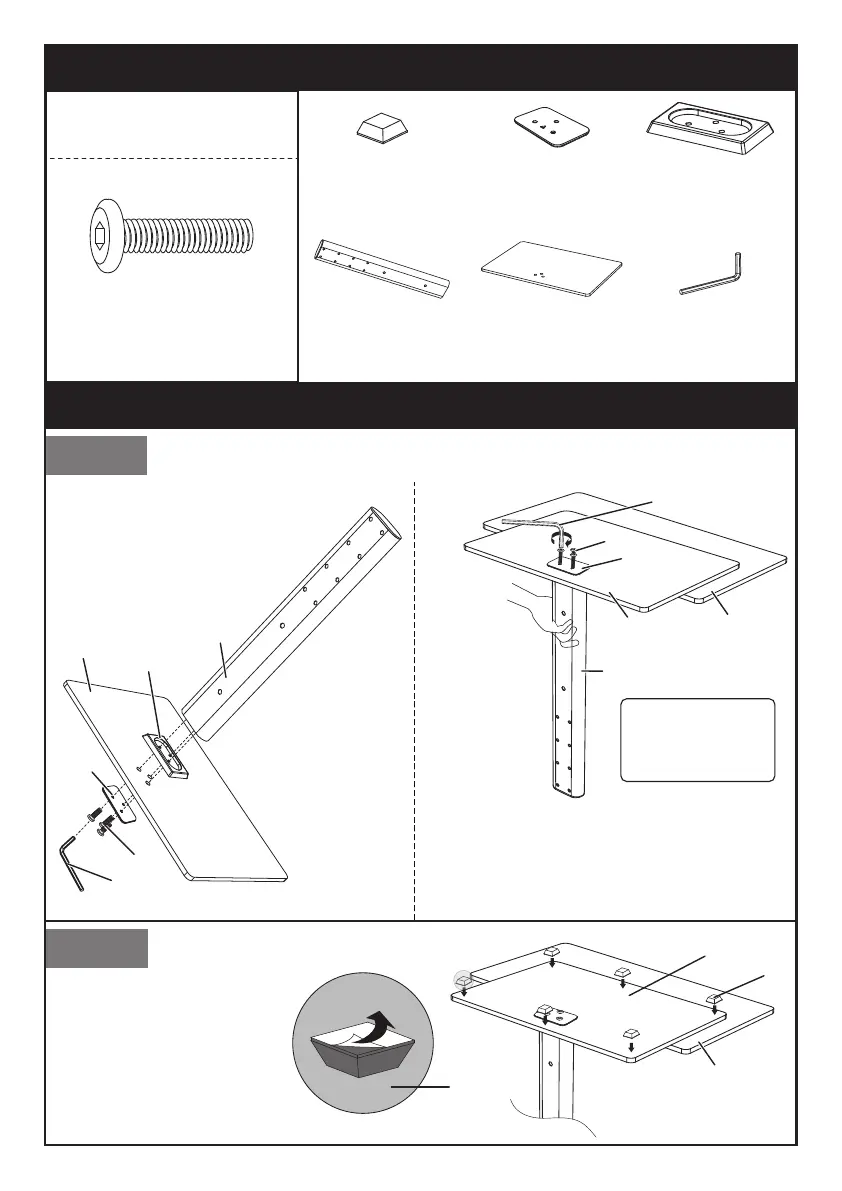

Step 2 Assemble the Base
Connect the support pillar [P] to tempered glass base [O]
R
O
Y
P
L
V
When assembling the support pillar
[P], ensure the side of the reinforcing
plate [R] with paper is facing the
glass base [O].
Note: Do Not
overtighten the
bolts [L].
O
V
L
R
P
Table
Step 2-2
Place foot pads [W] to
the painted side of the
tempered glass
base [O] in the
corners
W
Table
O
W
08
