Ergotron 100 Series User Manual

5 of 5
888-47-008-00 rev. L • 10/22
© 2005 Ergotron, Inc. All rights reserved.
For the latest User Installation Guide please visit: www.ergotron.com
For local customer care phone numbers visit: http://contact.ergotron.com
For Service visit: www.ergotron.com
For Warranty visit: www.ergotron.com/warranty

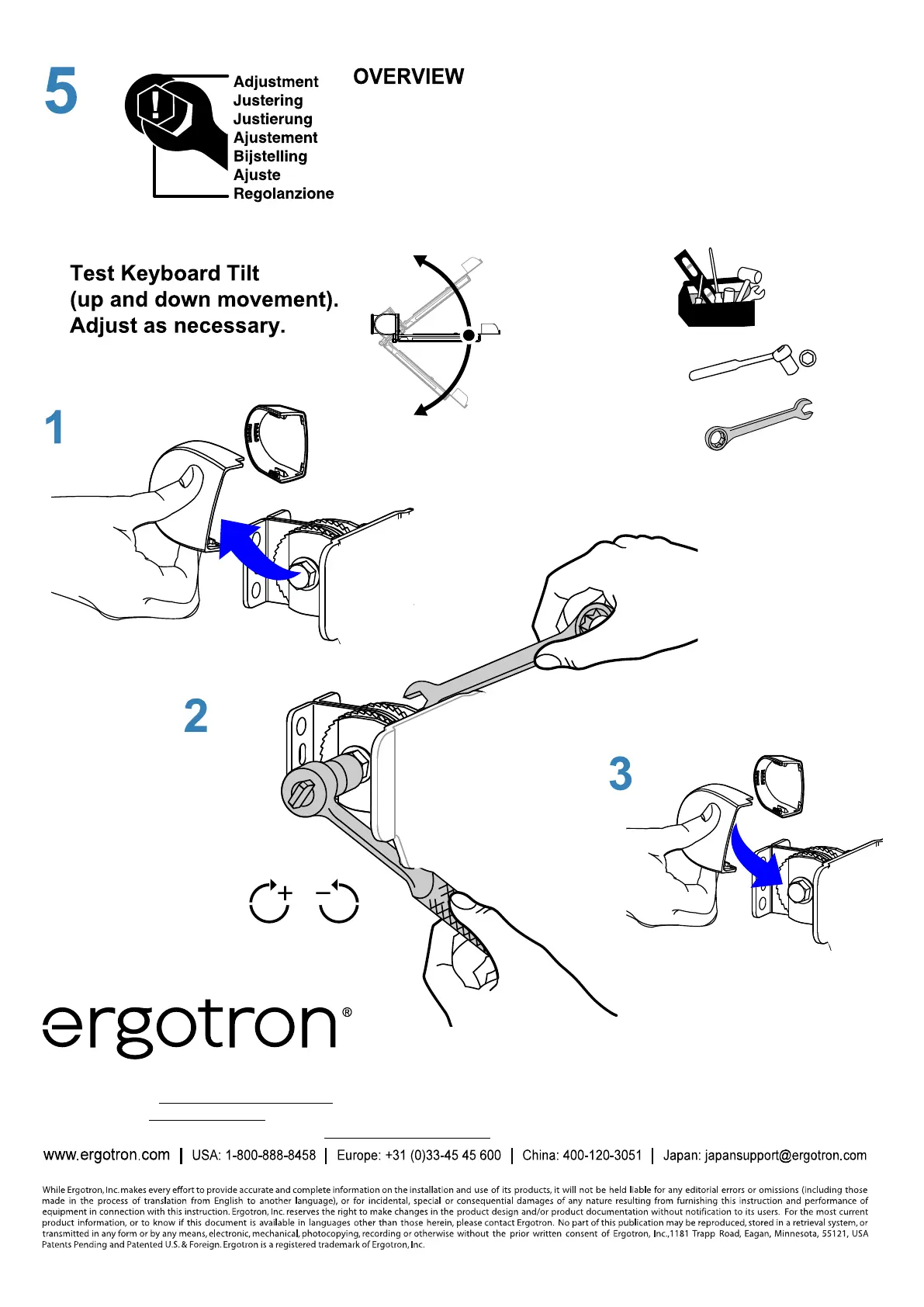

Ergotron's 100 Series Keyboard Tray Pivot is factory-set to provide positive
pivot control and a smooth moving force throughout the entire pivot range of
motion. To customize your installation, you will evaluate the Pivot operation
by moving the keyboard tray through its full range of movement. If excessive
force is required to lift the keyboard tray or if the keyboard tray does not stay
in the desired position, pivot adjustment is required. Adjust for a controlled
motion of the keyboard tray over the entire range of travel.
1/2"
(12.7mm)
1/2"
(12.7mm)
1/2"
(12.7mm)
1/2"
(12.7mm)
