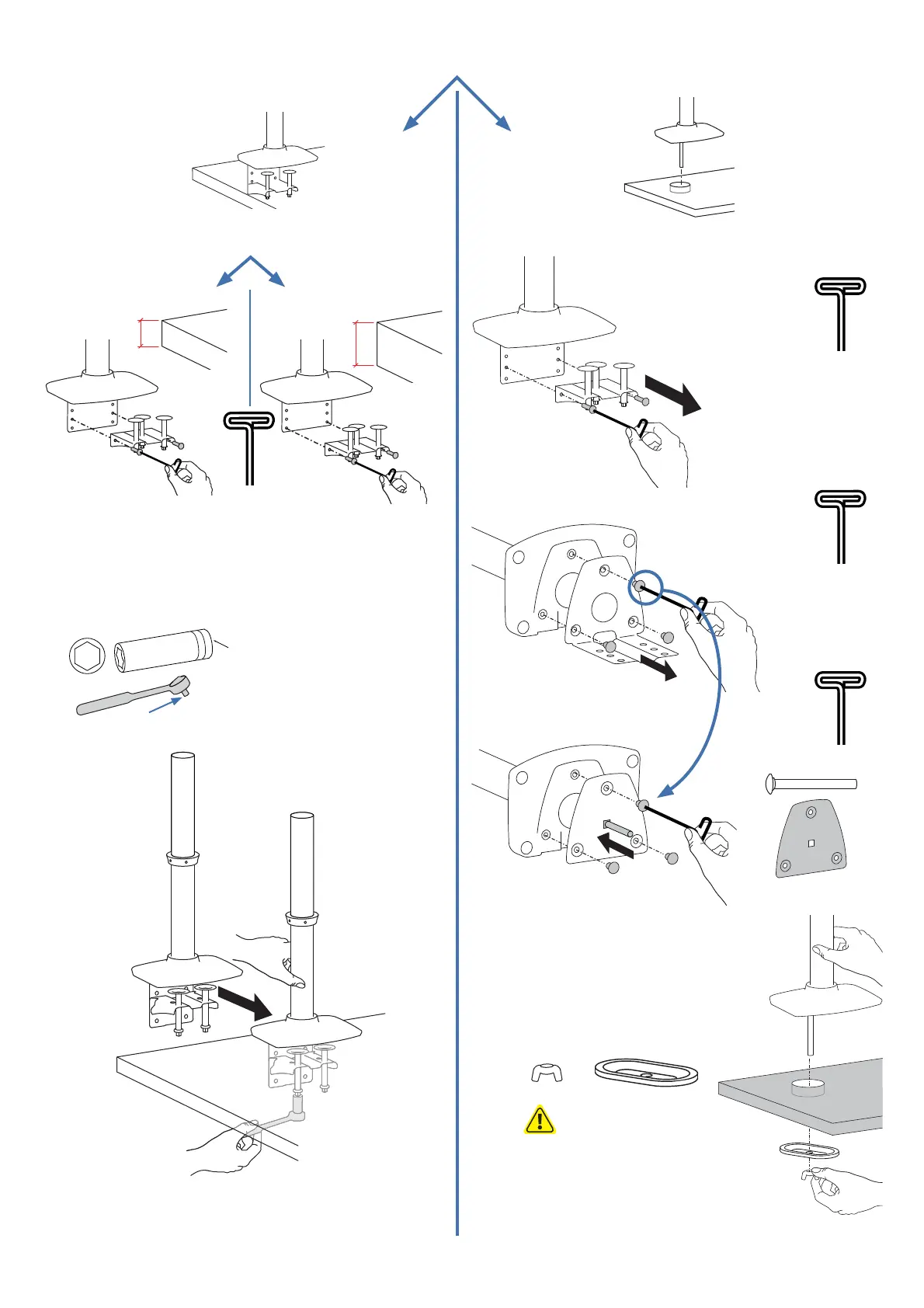

Ergotron LX Sit-Stand - Base Installation

4 of 15
888-45-311-W-01 rev.J • 12/18
1/4"
1/4”
8mm
1x
1x
1x
1x
c
d
a
b
1
4mm
4mm
4mm
4mm
0.78"-1.38" (20-35mm) 1.18"-2.56" (30-65mm)
CAUTION: Bolt must be
centered in hole.
CLAMP GROMMET HOLE
DESK THICKNESS
