5 of 28
888-45-277-W-03 rev.G • 06/14
1
6”
(152 mm)
21”
(533 mm)
21”
(533 mm)
21.5”
(546mm)
37.5”
(953mm)
26.5”
(673mm)
< 25.5”
(648mm)
41”
(1041mm)
5’4” - 5’9”
(163-175cm)
5’4” - 5’9”
(163-175cm)
< 20.5”
(521mm)
20”
(516mm)
4.2”
(106mm)
22”
(562mm)
27.6”
(701mm)
1.3”
(32mm)
0.2”
(5mm)
10.2”
(259mm)
ENGLISH

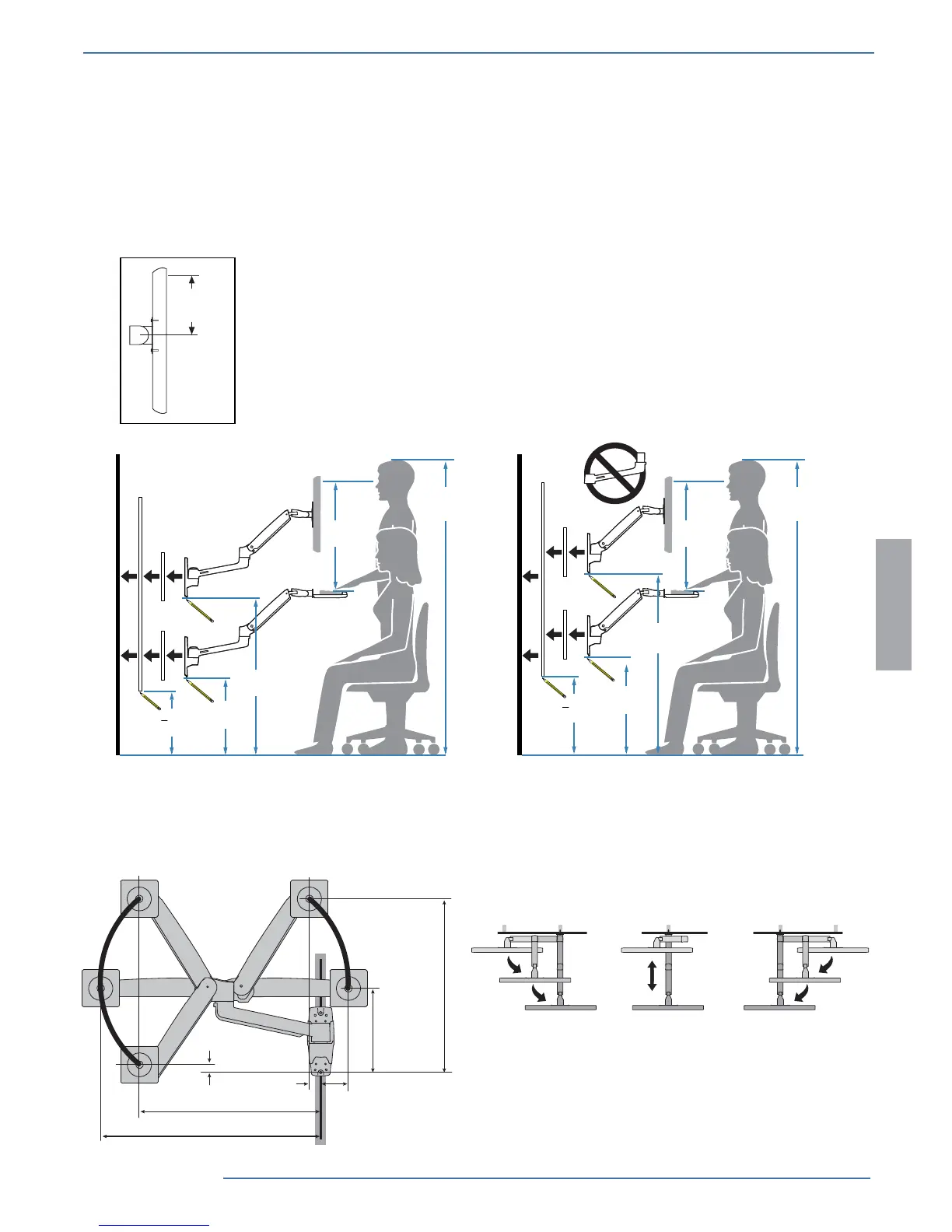

Mounting Height for Ergonomic Workstation
Determine mounting location:
This mounting height is a recommendation for an ergonomic workstation that accommodates user heights of 5’4”-5’9”
(163-175cm).
If user heights are di erent than this, you should change mounting height to accommodate user heights. (Change mount-
ing height one inch for every one inch di erence in user heights).
Mounting height assumes there is a 6” (152 mm) distance between the center of your monitor mount-
ing holes and the top of the screen. If your distance is smaller, you should increase mounting height
accordingly, if your distance is larger, you should decrease your mounting height accordingly.
Top view showing range of motion when pulled out from the wall.
Front view with arm pushed back against the wall.
