Ergotron LX Assembly Instructions

8 of 28
888-45-277-W-03 rev.G • 06/14

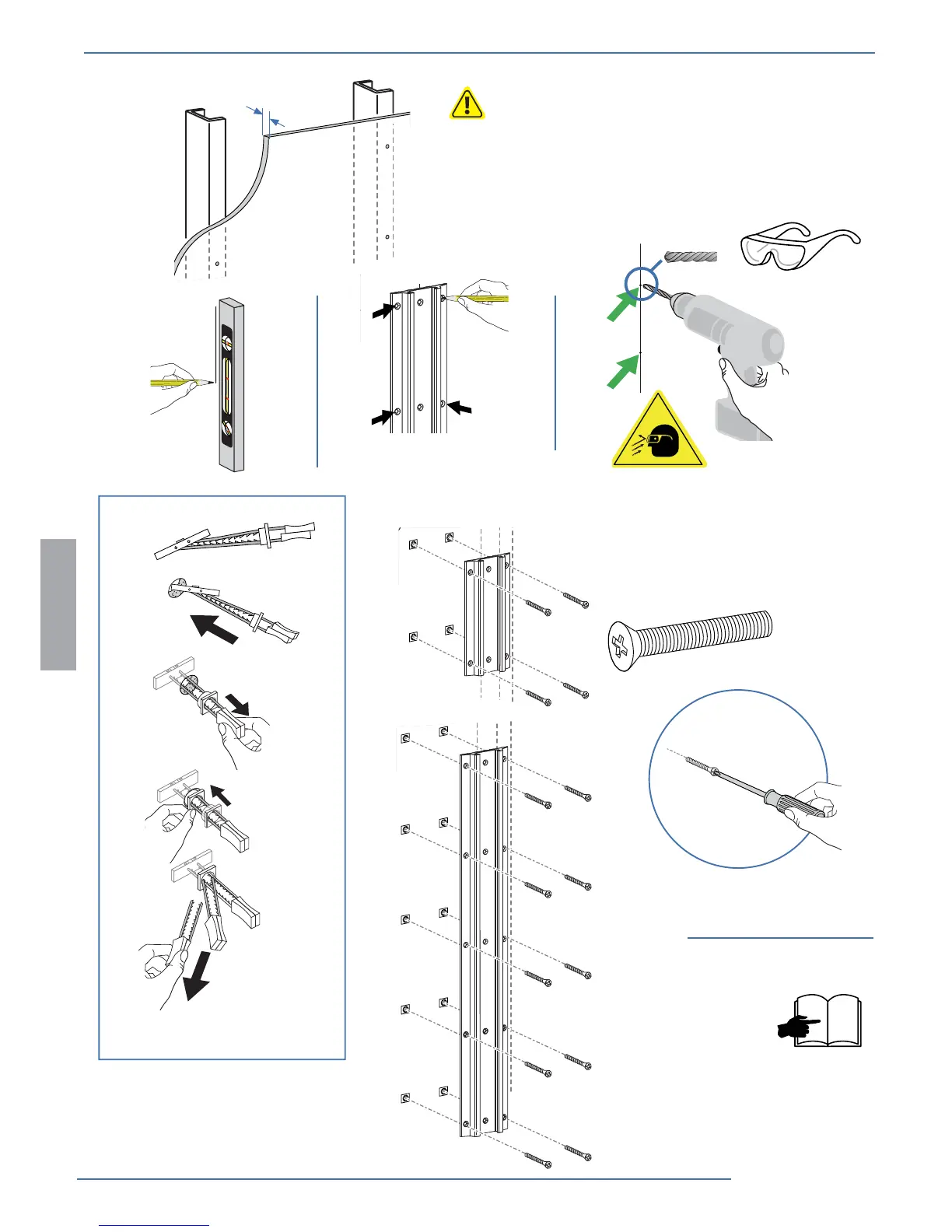

Hollow Wall
Pared
Mur
Wand
Muur
Parete
壁
墙壁
1
2
3
4
bc
d
e
Ø 1/2"
(12.7 mm)
a
14x
1/4-20 x 2"
Requires minimum material thickness of 5/8” (16 mm).
Requiere un grosor mínimo de 16 mm.
Epaisseur minimum de 16 mm.
Requer uma espessura mínima de 5/8” (16 mm).
Mit einer Materialdicke von mindestens 16 mm.
Vereist een minimale materiaaldikte van 1.6 cm.
Richiede uno spessore del materiale non inferiore a 16 mm.
厚さが最低 5/8” (16 mm) の資材が必要。
需要最低材料厚度为 5/8”(16 mm).
f
9
3
≥ 5/8”
Sheetrock
Sheetrock
Plaque de plâtre
Rigipsplatte
Sheetrock
Cartongesso
Gipsskiva
シートロック
石膏板
14x
2
ENGLISH

Ergotron LX Specifications

General

Product Type	Monitor Arm
Tilt	75°
Pan	360°
Rotation	360°
VESA Compatibility	Yes
VESA Mount Standard	MIS-D
Material	Aluminum
Warranty	10 years
Mounting Options	Grommet
Weight Capacity	7-25 lbs (3.2-11.3 kg)
Extension	25 inches (64 cm)
Lift	13 inches (33 cm)
Vertical Travel	13 inches (33 cm)
Color	White, Black
