Ergotron Neo-Flex User Manual

15 of 21
888-24-073-W-03 rev. T • 01/19
25 - 50 lbs
(11.3 - 22.7 kg)
M4x20mm
M4x40mm
M5x20mm
M5x40mm
M6x20mm
M6x45mm
M8x25mm
M8x50mm
6
Ø
50 mm
25 mm
40 mm
20 mm
40 mm
20 mm
45 mm
20 mm
M8M6M5M4
6mm
6mm
6mm
6mm
6mm

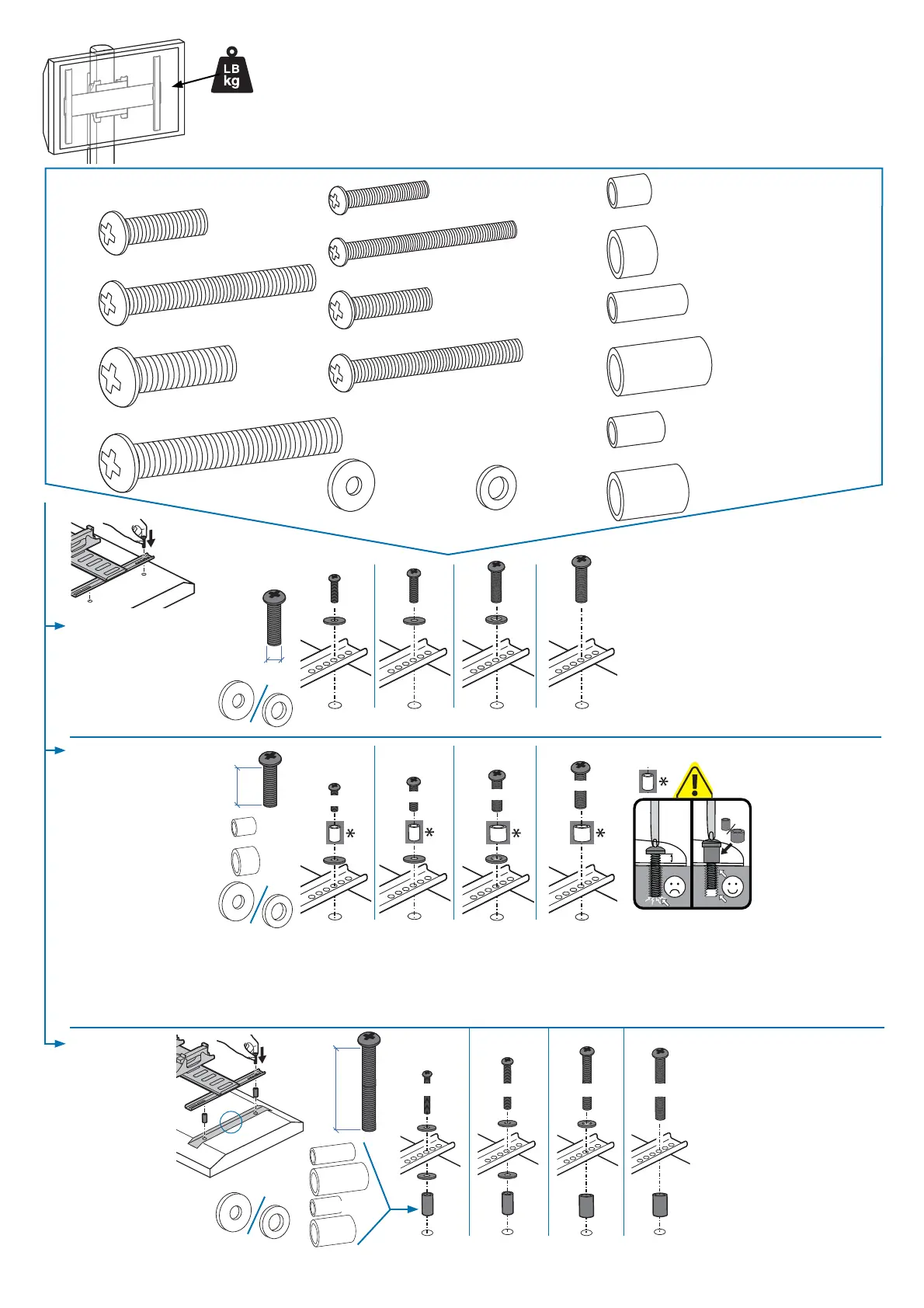

Large Display Cart Hardware
M4x20mm
M4x40mm
M5x20mm
M5x40mm
4x
4x
4x
4x
M6x20mm
M6x45mm
M8x25mm
M8x50mm
4x
4x
4x
4x
8x
4x
5.3(ID) x 16(OD) x 1.0mm
6.3(ID) x 14(OD) x 1.0mm
4x
4x
4x
4x
4x
4x
5.1(ID) x 10(OD) x 6mm
8.1(ID) x 16(OD) x 6mm
5.1(ID) x 10(OD) x 18mm
8.1(ID) x 16(OD) x 24mm
5.1(ID) x 10(OD) x 12mm
8.1(ID) x 16(OD) x 12mm
18mm
24mm
12mm
12mm
IMPORTANT: a n de vous assurer que les vis sont bien engagées dans l’écran, serrez-les en e ectuant au moins six tours complets de 360°.
Attention: ne forcez pas le serrage de la vis, cela pourrait endommager l’écran et/ou les attaches.
Encastré
TROUVEZ LES FIXATIONS APPROPRIÉES À VOTRE ÉCRAN:
Diamètre de vis
Longueur de vis

Ergotron Neo-Flex Specifications

General

Pan range	0 - 24 °
Tilt angle range	0 - 25 °
Angle of rotation	90 °
Mounting type	Ceiling
Maximum VESA mount	600 x 400 mm
Minimum VESA mount	200 x 100 mm
Maximum screen size	65 \
Minimum screen size	32 \
Maximum weight capacity	56.7 kg
Panel mounting interface	200 x 100, 200 x 200, 280 x 150, 300 x 100, 300 x 200, 300 x 300, 360 x 304, 400 x 200, 400 x 300, 400 x 400, 400 x 600, 420 x 240, 420 x 410, 500 x 350, 540 x 360, 600 x 200, 600 x 400 mm
Number of displays supported	1
Mounting kit	Yes
Package weight	10900 g
Safety	RoHS
Product color	Black
Harmonized System (HS) code	85299097
