Adjustment Step
Important! You will need to adjust this product after installation is complete. Make sure all your equipment is
properly installed on the product before attempting adjustments. This product should move smoothly and easily
through the full range of motion and stay where you set it. If movements are too easy or diffi cult or if product
does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements.
Depending on your product and the adjustment, it may take many turns to notice a difference. Any time
equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you
should repeat these adjustment steps to ensure safe and optimum operation.
CAUTION! The bottom nut will turn
during adjustment of the top nut; DO
NOT apply any tool to the bottom nut.
Serious damage to the Pivot may occur
if these instructions are not followed.
Increase Friction
If this product moves too easily, then
you'll need to increase friction:
Decrease Friction
If this product is too diffi cult to move,
then you'll need to decrease friction:

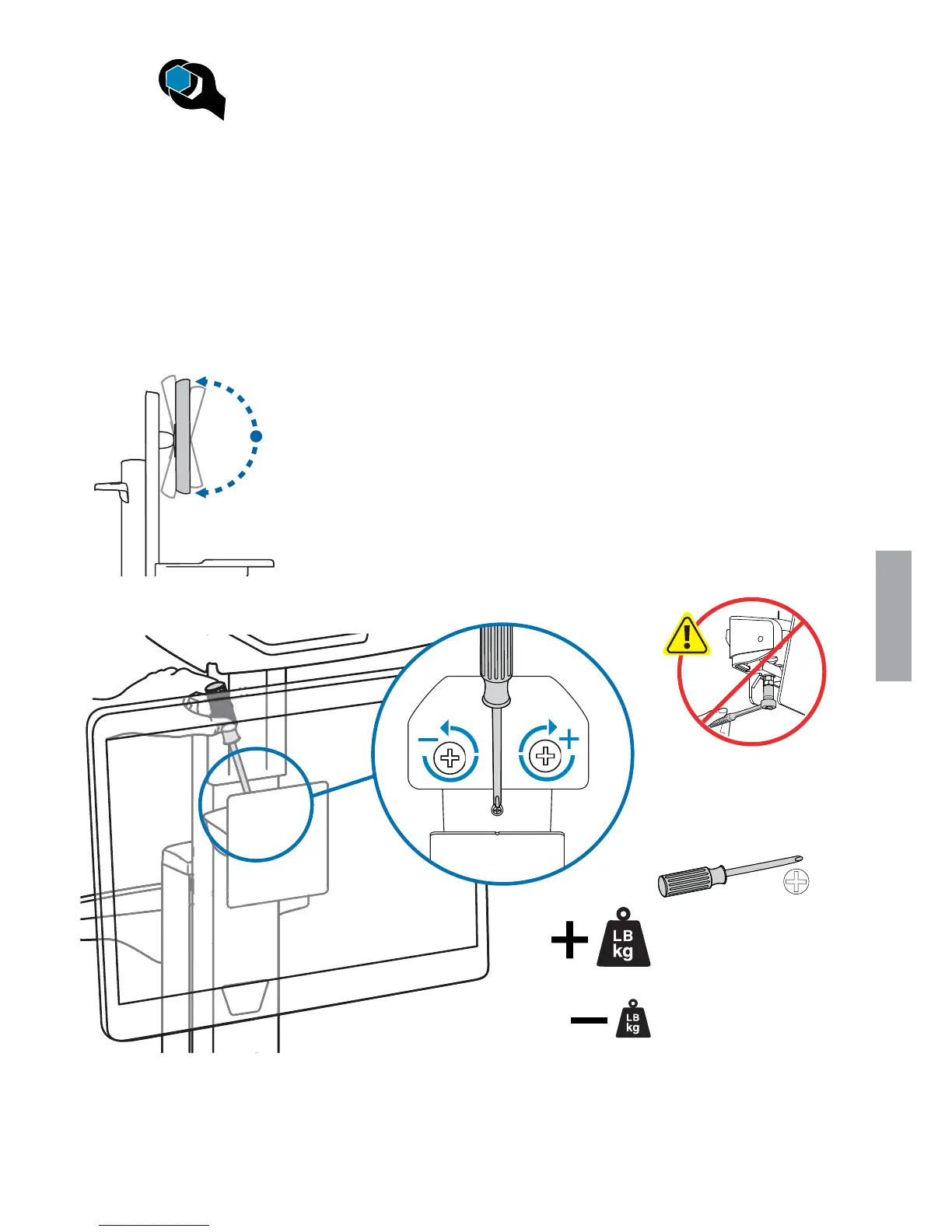

Tilt – Forward and Backward
