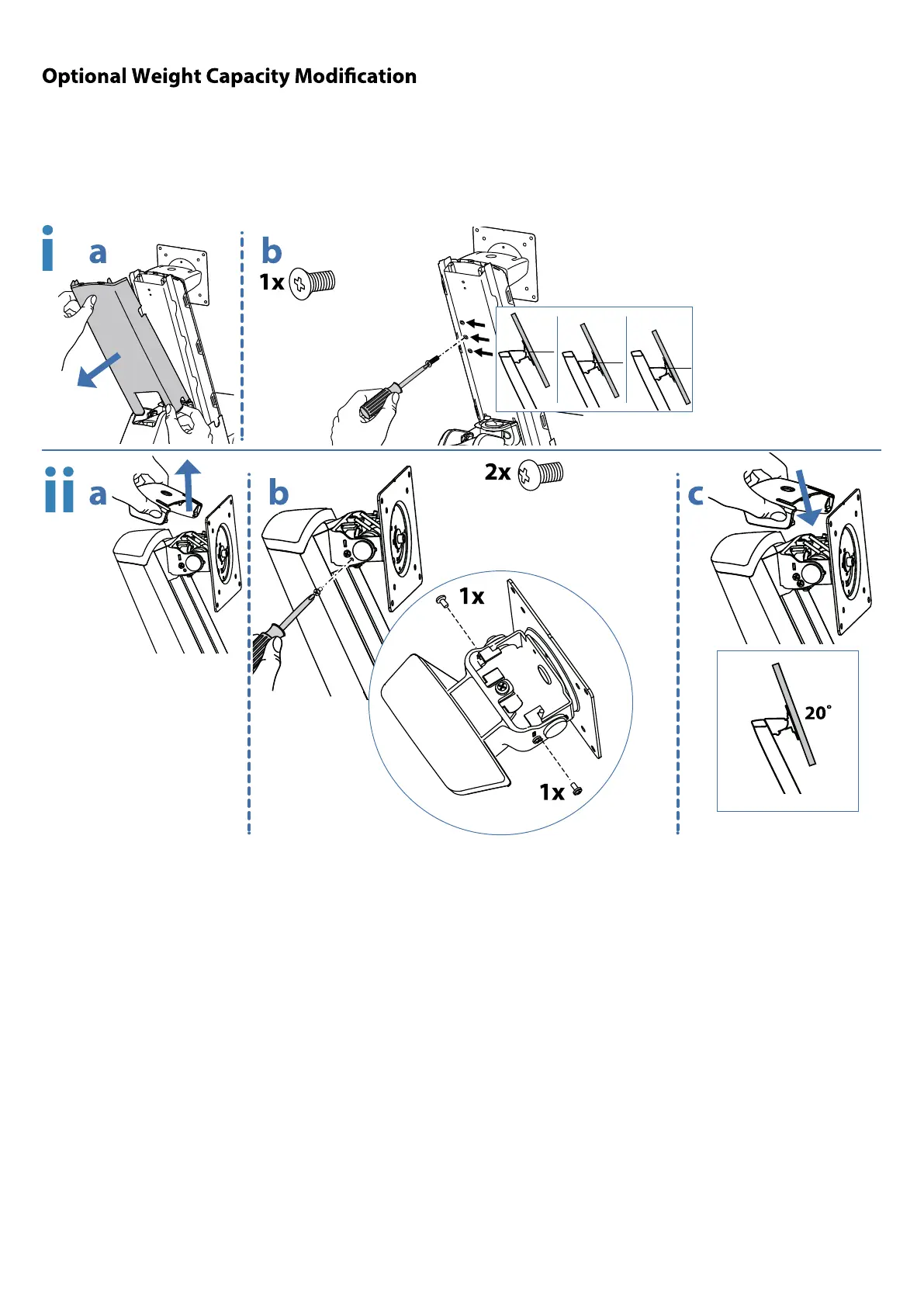

Optional Weight Capacity Modifi cation for Displays 18 - 25 lbs (8.2 - 11.3 kg) Only!
IMPORTANT: with this option display lift and tilt motion are no longer possible. To accomodate extra weight, the display is fi xed at one of three heights
(spaced 2.5" (64 mm) apart), and display tilt is fi xed at 20°. If mounting a display 18 lbs (8.2 kg) or less, skip to next page.
Flat Head
Pan Head
