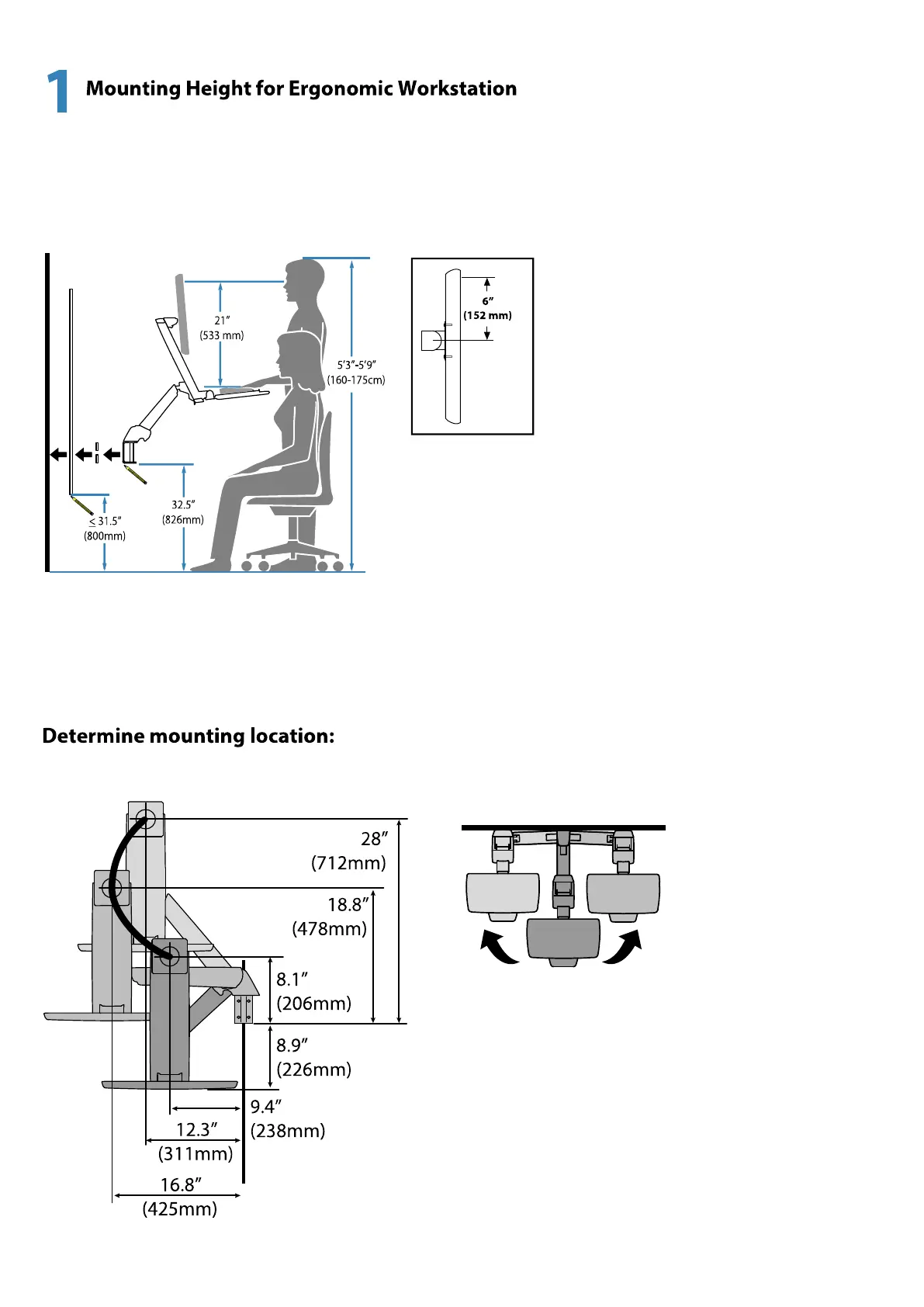

This mounting height is a recommendation for an ergonomic workstation that accommodates user heights of 5’3”-5’9”
(160-175cm).
If user heights are diff erent than this, you should change mounting height to accommodate user heights. (Change
mounting height one inch for every one inch diff erence in user heights).
Mounting height assumes there is a 6” (152 mm)
distance between the center of your monitor
mounting holes and the top of the screen. If your
distance is smaller, you should increase mount-
ing height accordingly, if your distance is larger,
you should decrease your mounting height ac-
cordingly.
Top view showing range of motion when pulled out from the wall.
Front view with arm pushed back against the wall.
