8 of 17
5
4
ba
10
ENGLISH
888-24-326-G-02 rev. E • 08/18

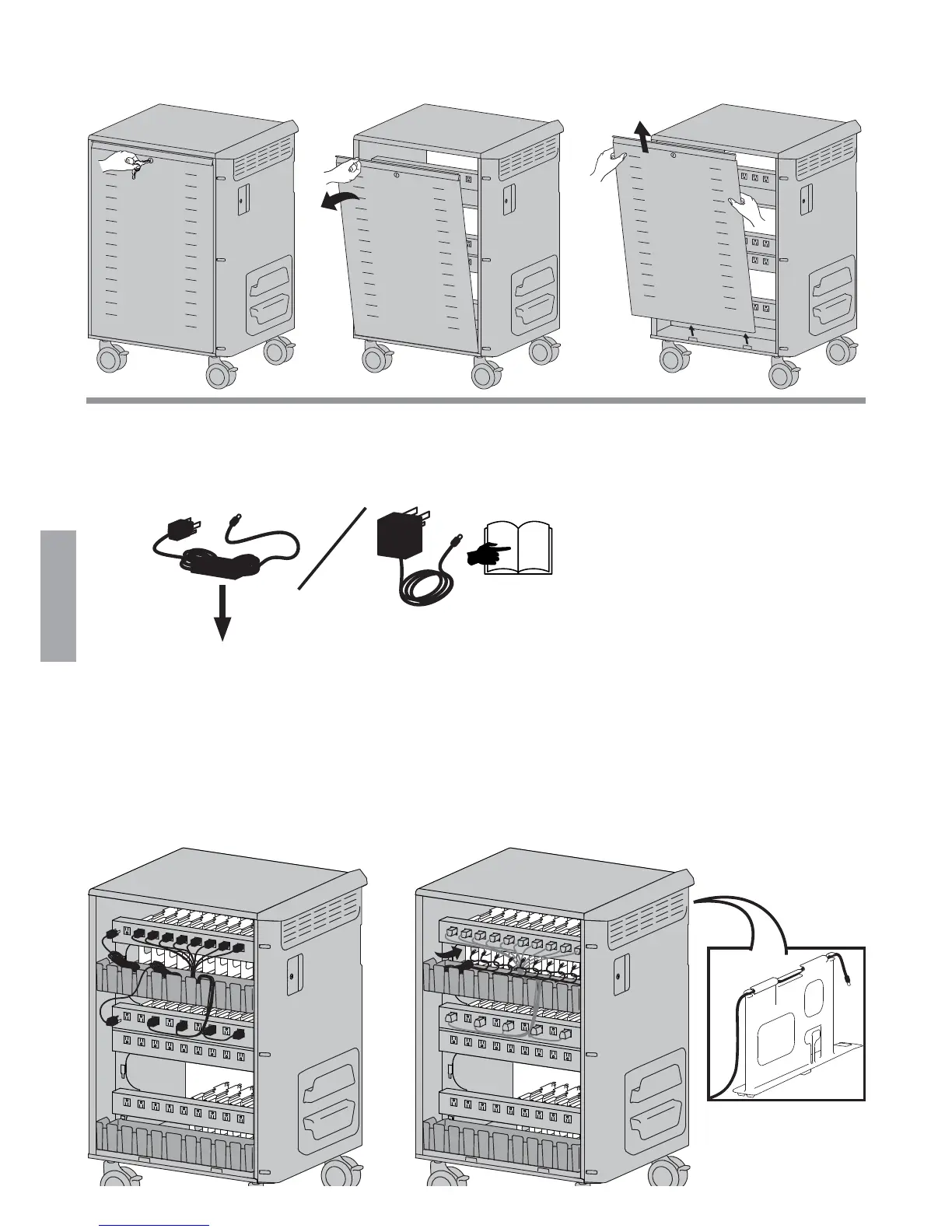

Remove back panel.
Plug in and route power cables.
There are different instructions for each type of power cable. Follow the instructions that
match your style power cable.
a. Plug in the power cables for the top shelf. Use the top row of outlets, and for the 40 device
confi guration, every other outlet on the second row. Store the power cables in the top basket.
b. Route the device plugs between the basket and the top outlet row and up through the top of the
dividers. Make sure there is enough slack in cable to plug into device.
c. Bundle cables and store in top basket.
