Erickson BIG BED JUNIOR - Assembly Instructions; Assembly 1

Item no: 07605
2/5
The extender can be assembled two different ways, respectively with the long end or short
the end of L-extension (2) connecting to the T-support(1)
ASSEMBLY 1,

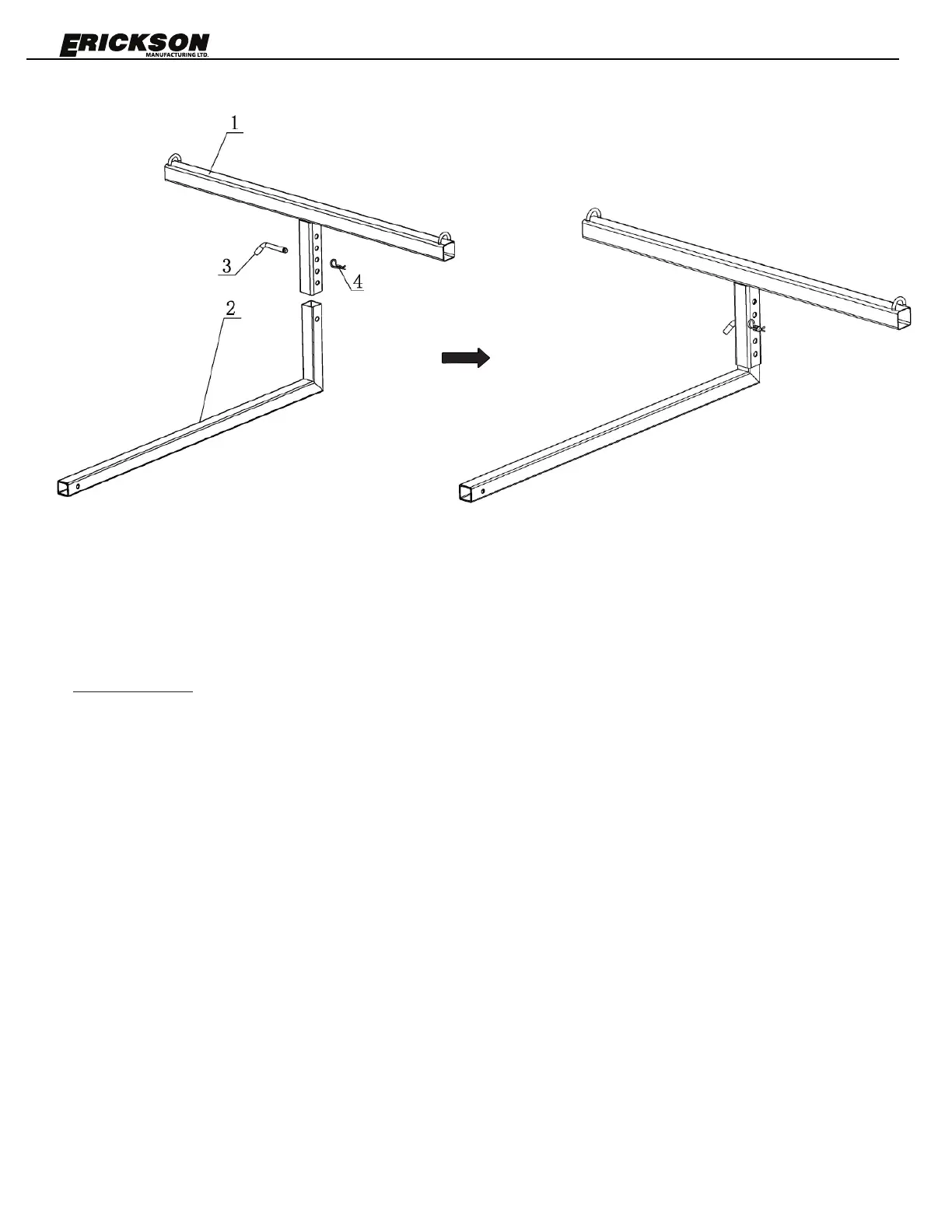

1. With the short end of the L-extension (2) facing up, slide it into the T-support (1);
2. The T-support (1) has 5 holes to change the height. Line up the hole on the T-support (1)
with the desired hole on the L-extension (2);
3. Insert the pin lock (3) through the T-support (1) and the L-extension (2), secure with ∮3.8
cotter pin (4).
4. Pull on the L-extension (2) and the T-support(1) to make sure they are properly locked in
place.

