Product Data RBS 2106
5.2.3 Size, Weight, and Space Requirements
Dimensions
P008565A
1300
1560
710
925
56,5
925
Unit of measurement: mm

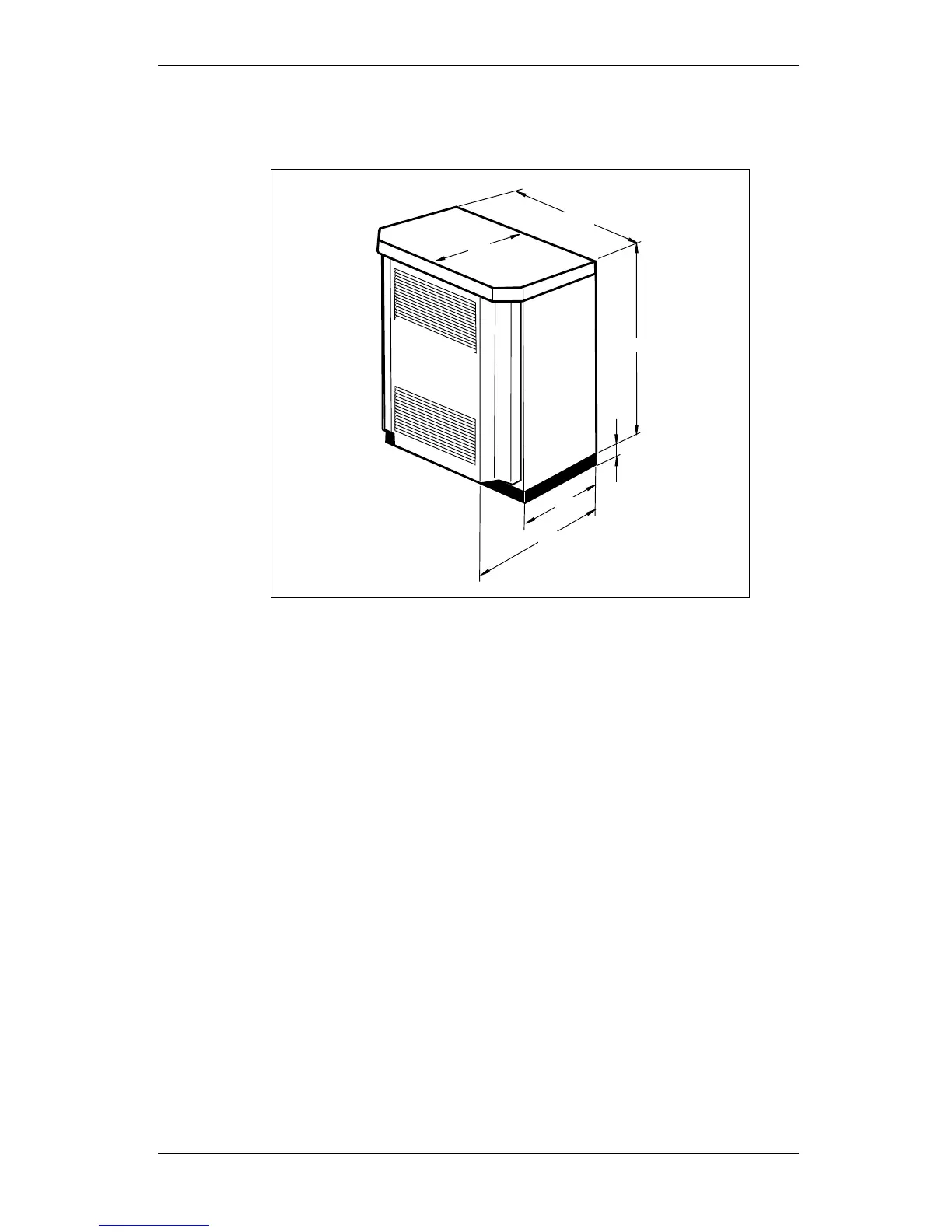

Figure 35 Overall dimensions, RBS 2106
Footprint
The footprint of the RBS 2106 is 1300 mm wide and 710 mm deep.
Note that the door, which is 242 mm deep, is not included in the
footprint, as it does not reach down to the ground.
The installation frame of the RBS 2106 has the same bottom holing
pattern as that of the RBS 2102.
