Ericsson RBS 6402 - Connect Cables to Indoor Antenna

Install RBS
Ge8936A
RF jumper cable
Indoor antenna
RBS 6402
Ge8972A
RBS 6402
RF jumper cable
RF feeder cable
Surge arrester
Indoor antenna

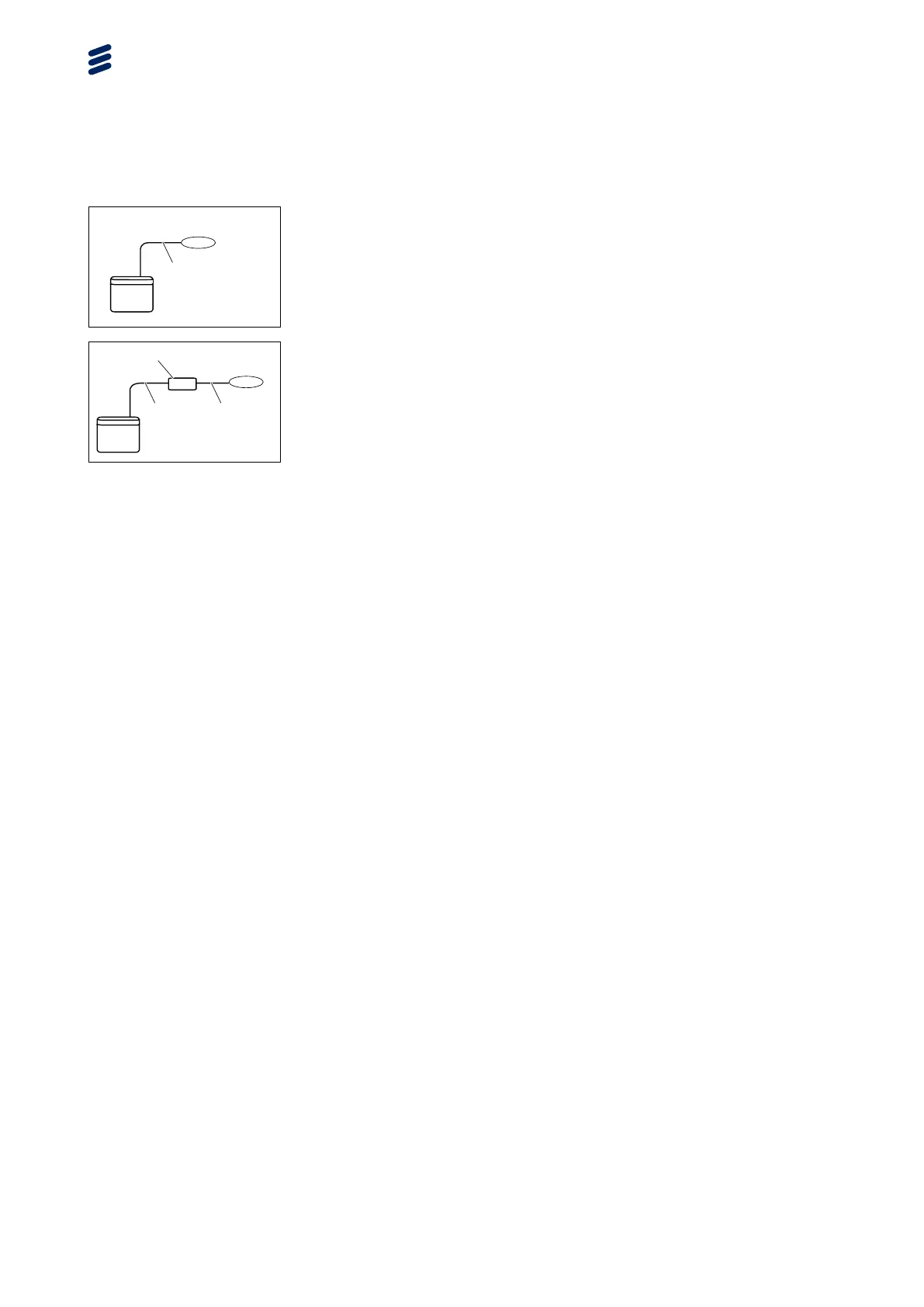

13. Attach the antenna cables to the indoor antenna. There are two
options, as follows:
• For shorter distances (<2.6 m), connect the RF jumper cable
directly from the RBS to the indoor antenna.
• For longer distances (>2.6 m), connect the RF jumper cable from
the RBS to a surge arrester and an RF feeder cable, with N-type
(m) connectors, from the surge arrester to the indoor antenna.
24
56/1531-LZA 701 6001 Uen D | 2015-11-06
