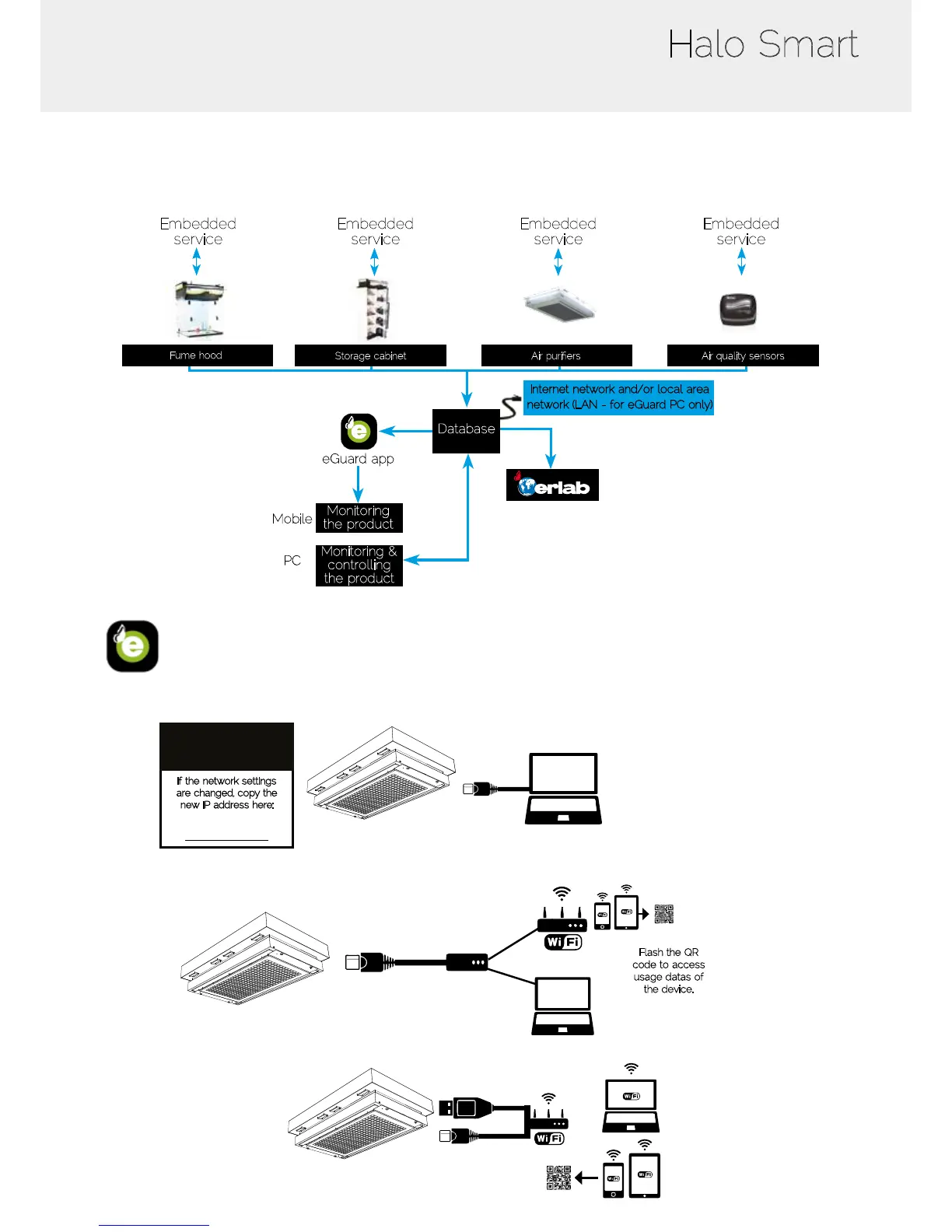

Connectivity principle
Ecosystem designed for simpler use and safer protection
Embedded
service
Embedded
service
Embedded
service
Embedded
service
Fume hood
Internet network and/or local area
network (LAN - for eGuard PC only)
Database
Monitoring
the product
Monitoring &
controlling
the product
eGuard app
Mobile
PC
Ethernet-TCP-IP
Storage cabinet Air purifiers Air quality sensors
eGuard app - Options for connection
RJ45
Access WebService
Default IP address:
192.168.0.200
If the network settings
are changed, copy the
new IP address here:
- Embedded service
Flash the QR
code to access
usage datas of
the device.
RJ45
RJ45
RJ45
Ethernet
Routeur
or/and
QRcode
RJ45
(Data)
USB
(Power 5V)
- Mobile or computer app
